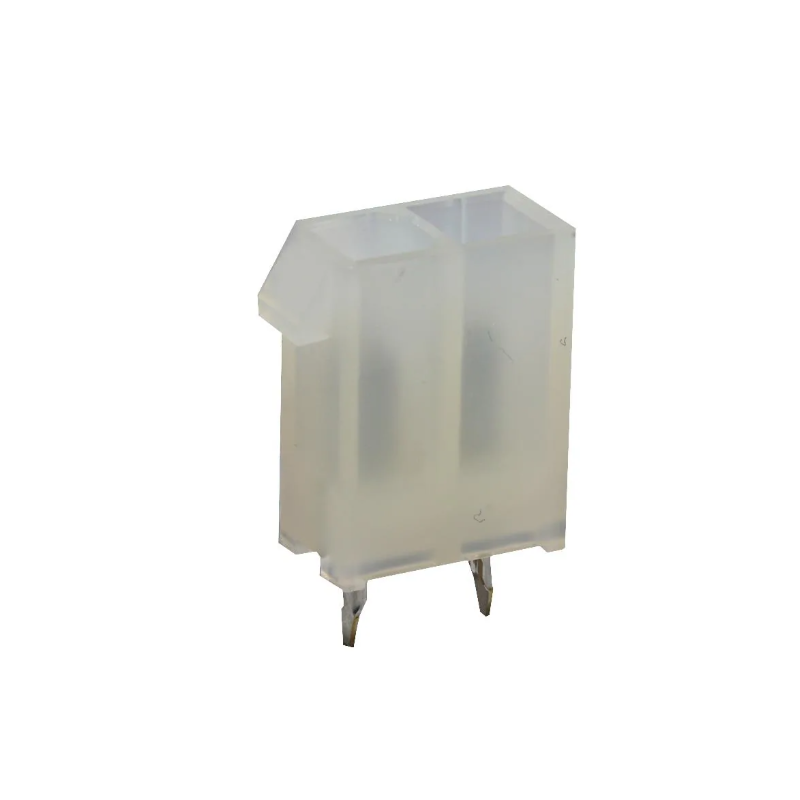

MX-5566-02 Straight 2-Pin Wafer PCB Socket, 4.20 mm Pitch
ID: 46882
5902186301146
zł1.89
Tax included
zł1.54 tax excl.
The MX-5566-02 socket is a 2-pin, straight compactible with Mini-Fit Jr. connector with a 4.2 mm pitch, designed for wire-to-board mounting. Engineered for reliable power and signal transmission, it is commonly used in industrial equipment, computer systems, and power supply applications.
Description
The MX-5566-02 connector is a 2-pin male compactible with Mini-Fit Jr. socket designed for THT (through-hole) PCB mounting in a straight orientation. With a 4.2 mm pitch and 2x1 pin configuration, it ensures reliable transmission of currents up to 9 A per pin, making it an ideal solution for power and signal applications in industrial and computer electronics. The connector features tin-plated contacts and mounting clips for added mechanical stability during operation.
Specifications
- Connector Type: Socket (Male)
- Number of Pins: 2
- Pin Layout: 2x1
- Pitch: 4.2 mm
- Orientation: Straight
- Electrical Mounting: THT (Through-Hole Technology)
- Mechanical Mounting: Mounting clips
- Maximum Current: 9 A
- Contact Plating: Tin
- Application: Wire-to-board connections
- RoHS Compliant: Yes
46882
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
