Soldered Lo-Fi Noise Machine - analogue synth solder kit
ID: 1208353
zł53.20
Tax included
zł43.25 tax excl.
DIY soldering kit for building an analogue Lo-Fi sound generator based on the NE556N timer. Features pitch and pulse-width adjustment, a buzzer, 8Ω speaker, 3.5mm audio output and USB-C power. Soldered 333349
Description

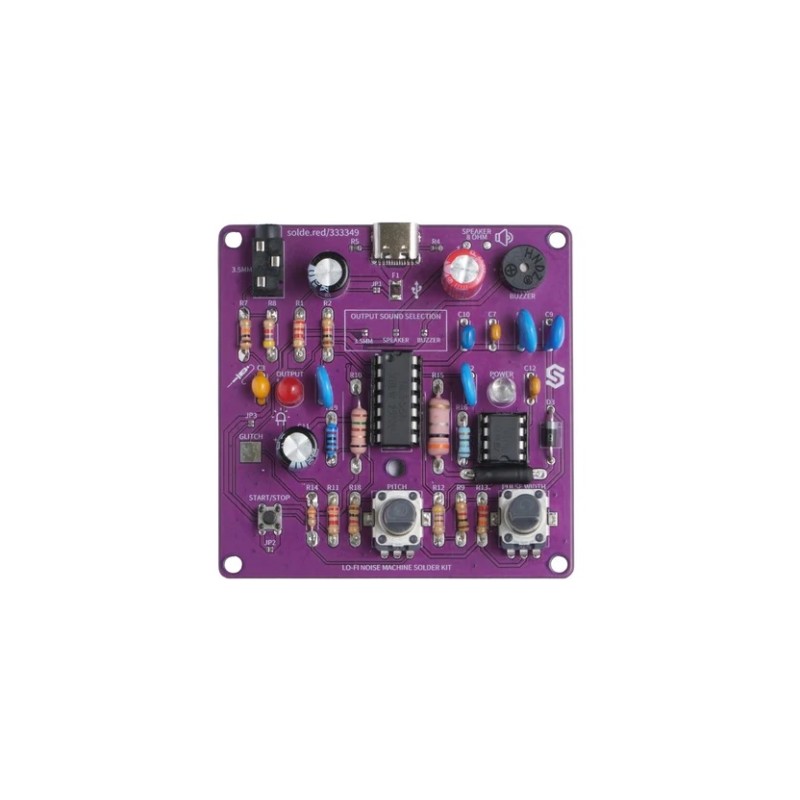

The device Lo-Fi Noise Machine Solder Kit by Soldered is a DIY soldering kit for building an analogue sound generator based on the NE556N timer. The circuit follows the Punk Console concept and generates a square-wave signal without digital audio processing. Two 500kΩ potentiometers allow adjustment of pitch and pulse width, making it possible to create a variety of Lo-Fi sound effects.

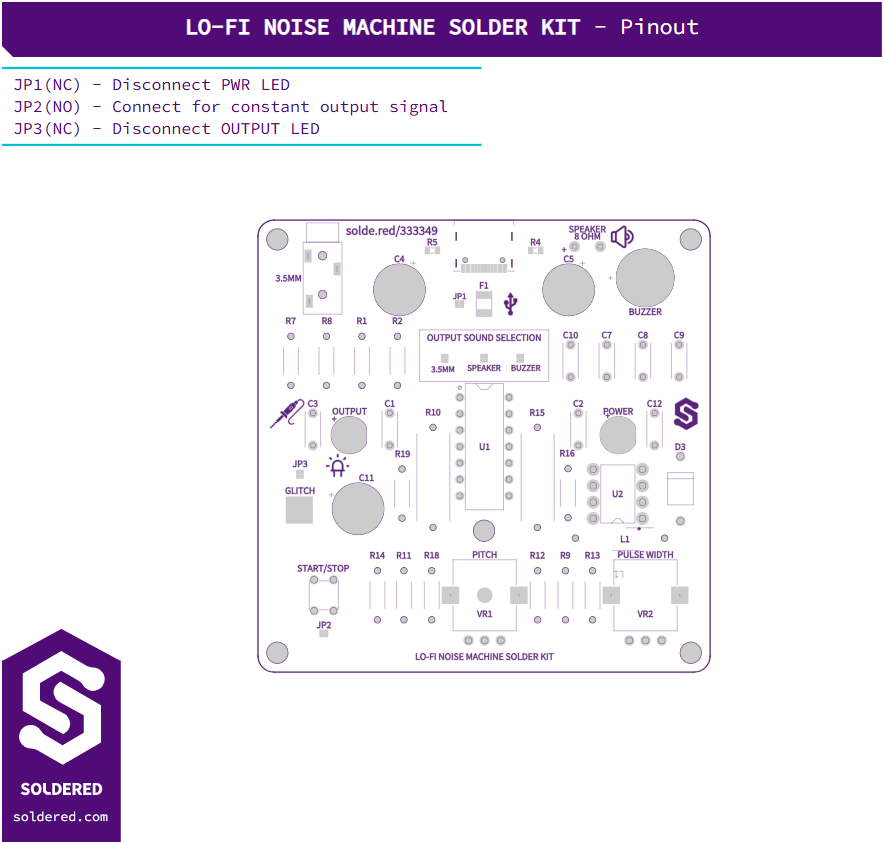

Once assembled, the circuit can play sound through the buzzer, the included 8Ω / 0.5W speaker or an external device connected to the 3.5mm audio jack. The PLAY button allows manual triggering of the generator, while the appropriate jumper setting enables continuous operation. The board also features a GLITCH touch pad for modifying the generated sound and an LED that reacts to the output signal.
The kit is powered from 5V via USB-C, while the board measures approximately 70 × 70mm. It is intended both for learning soldering and for exploring the basics of analogue audio signal generation. The manufacturer rates the kit as Level 2 and provides an assembly guide, circuit documentation and files for a 3D-printable enclosure.
Features
- Type: DIY soldering kit
- Circuit type: analogue Lo-Fi sound generator / synthesizer
- Main IC: NE556N Dual Precision Timer
- Generated signal: square wave
- Audio processing: analogue
- Pitch control: potentiometer
- Pulse-width control: potentiometer
- Audio outputs: buzzer, 8Ω speaker, 3.5mm jack
- Included speaker: 8Ω / 0.5W
- PLAY button for triggering the sound generator
- Continuous operation via jumper
- GLITCH touch pad for sound modification
- LED reacting to the output signal
- Supply voltage: 5V
- Power connector: USB-C
- Board dimensions: approximately 70 × 70mm
- Difficulty level: Level 2
- Open-source design
- Assembly guide available
- 3D-printable enclosure files available
- Manufacturer: Soldered Electronics
- Product code: 333349
Kit includes
- Lo-Fi Noise Machine PCB
- NE556N IC
- Voltage regulator IC
- 2 × potentiometer
- 3.5mm audio jack
- USB-C connector
- 8Ω / 0.5W speaker
- Buzzer
- 2 × LED
- Rectifier diode
- Resistor set
- Capacitor set
- Other components required to assemble the circuit
