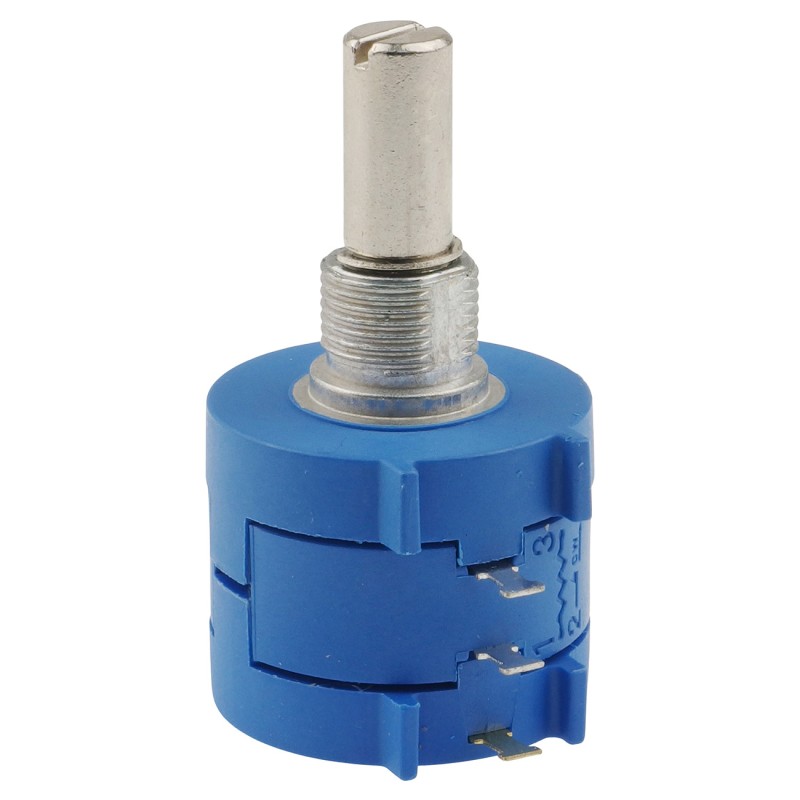

POT0019 – Precision multi-turn potentiometer 200 Ω
ID: 1198897
5902186308152
zł16.61
Tax included
zł13.50 tax excl.
The POT0019 potentiometer enables precise adjustment of electrical parameters in applications requiring stability and accuracy. Designed for panel mounting, it is equipped with flat solder terminals and resistant to long-term use.
Description
The precision multi-turn potentiometer POT0019 with a resistance of 200 Ω is intended for accurate adjustment in electronic, measurement, and automation systems. The mechanism, made using wire-wound technology, allows precise settings through ten full shaft rotations. The housing is designed for panel mounting using a threaded bushing, with a metal rotating shaft and flat solder terminals. Optionally equipped with an anti-rotation pin to prevent the body from turning relative to the panel.
Features
- Nominal resistance: 200 Ω
- Resistance tolerance: ±5%
- Adjustment characteristic: linear
- Number of shaft turns: 10 (3600° ±10°)
- Rated power: 2 W at +40 °C
- Operating temperature range: –40 °C to +125 °C
- Mechanical life: 1,000,000 turns
- Resistance change under load: ≤±2% after 1000 h at full load
- Dielectric strength: min. 1500 VAC
- Insulation resistance: min. 1000 MΩ at 500 VDC
- Torque: ≤0.35 N·cm or ≤1.1 N·cm depending on version
- Terminal type: flat solder lugs
- Mounting: panel mounting with threaded bushing
- Bushing thread: 3/8–32 UNF
- Shaft diameter: 6.35 mm
- Bushing thread length: 7.94 mm
- Weight: approx. 19 g
Included
- POT0019 potentiometer (200 Ω, 10 turns, type 3590S)
- Lock washer
- Mounting nut
