KAmod ProtoSupply is a universal, USB-C powered breadboard power supply module that offers two independent voltage outputs – the first adjustable (from 2.5 to 10.5 V or fixed at 3.3 V, 5 V, 9 V) and the second with 5 V or 12.5 V options – equipped with overload, overheat and short circuit protections and adapted to standard power rail layouts

24h
Available
Available quantity: 295

Description

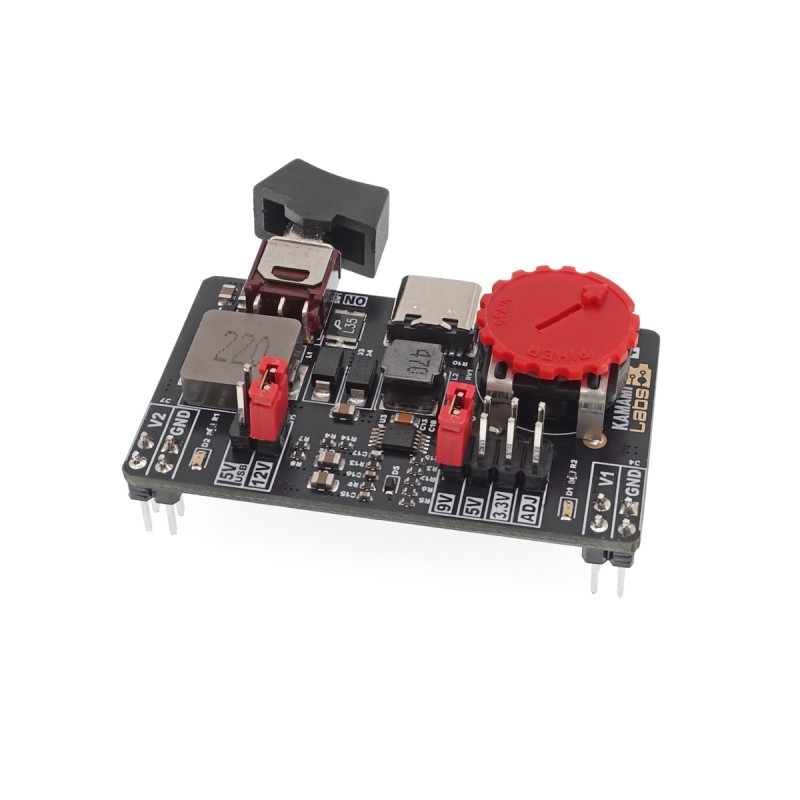

KAmod ProtoSupply is a universal power supply module for breadboards. It is powered via USB-C connector from a classic USB power supply/charger and provides two independent supply voltages. The first output can be set to 3.3 V, 5 V, 9 V or can be smoothly regulated by a potentiometer in the range of 2.5...10.5 V. The second output allows you to set the value of 5 V or 12.5 V. The power converters used provide protection against overload and short circuit of the outputs. The design of the module is adapted to standard breadboards, in which the power rails are spaced approximately 41 mm apart.

Features

  • Power supply via USB-C connector from a classic USB power supply/charger (recommended voltage min. 5.0 V, recommended current min. 2 A)
  • The first output (V1) can be set to the voltage:
    • 3.3 V ±5%,
    • 5 V ±5%,
    • 9 V ±5%,
    • or can be smoothly adjusted with a potentiometer in the range of 2.5...10.5 V ±5%,
  • The second output (V2) allows you to set the voltage:
    • 5 V ±5%,
    • 12.5 V ±5%
  • Voltage values ​​set with an accuracy of 5%
  • The maximum load of the outputs at voltages below 5 V is 0.3 A, and temporarily 0.5 A (depending on the parameters of the USB power supply)
  • The maximum load of the outputs at voltages above 5 V is approx. 0.3 A (depending on the parameters of the USB power supply)
  • Power converters used include protection against overload, overheating and short circuit of outputs
  • Easy to use main power switch
