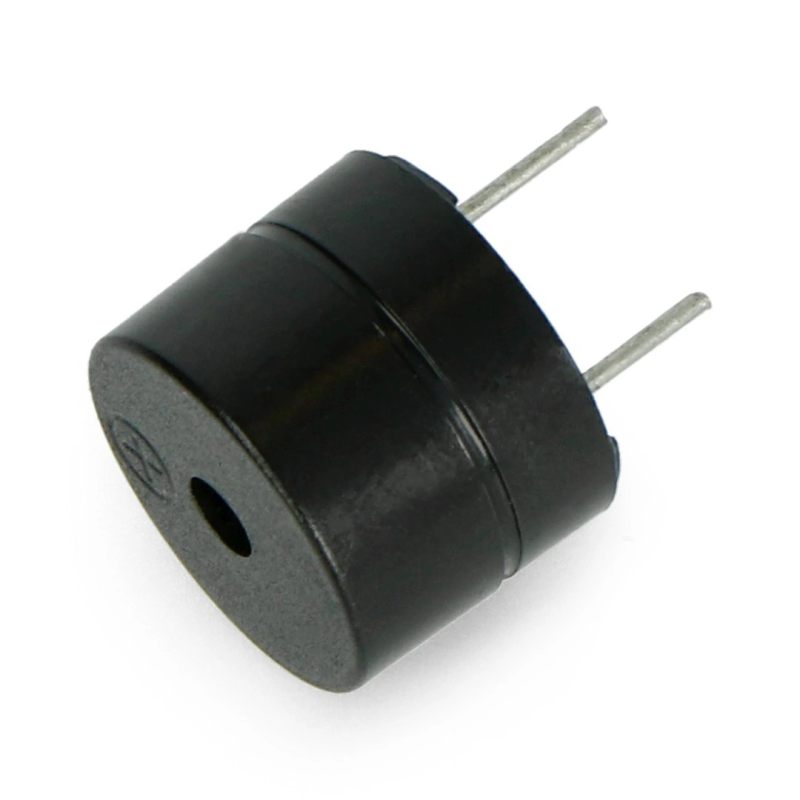

buzzer5V-12mm - BST-12095-DC-FT buzzer aktywny 5V 12mm
ID: 1193737
5902186300453
zł1.89
Tax included
zł1.54 tax excl.
The BST-12095-DC-FT buzzer is an active sound transducer with a 12 mm diameter, powered by a 5 V DC supply. It generates a continuous sound signal without the need for an external driving signal, making it ideal for use in alarm and signaling systems.
Description
The BST-12095-DC-FT buzzer is an active sound transducer with a 12 mm diameter, operating at a supply voltage of 5 V DC. With a built-in sound signal generator, it emits a continuous tone at a frequency of 2.3 kHz ± 500 Hz and achieves a sound level of 85 dB, making it an excellent choice for alarm and signaling systems. The current consumption of up to 30 mA ensures energy efficiency. Its compact housing, with a height of 9.5 mm and a mounting pitch of 7.6 mm, simplifies integration into electronic projects using through-hole technology (THT).
Features
- Supply Voltage: 5 V
- Sound Level: 85 dB
- Current Consumption: Max. 30 mA
- Frequency: 2.3 kHz ± 500 Hz
- Diameter: 12 mm
- Height: 9.5 mm
- Pitch: 7.6 mm
- Housing: Through-hole (THT)
1193737
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
