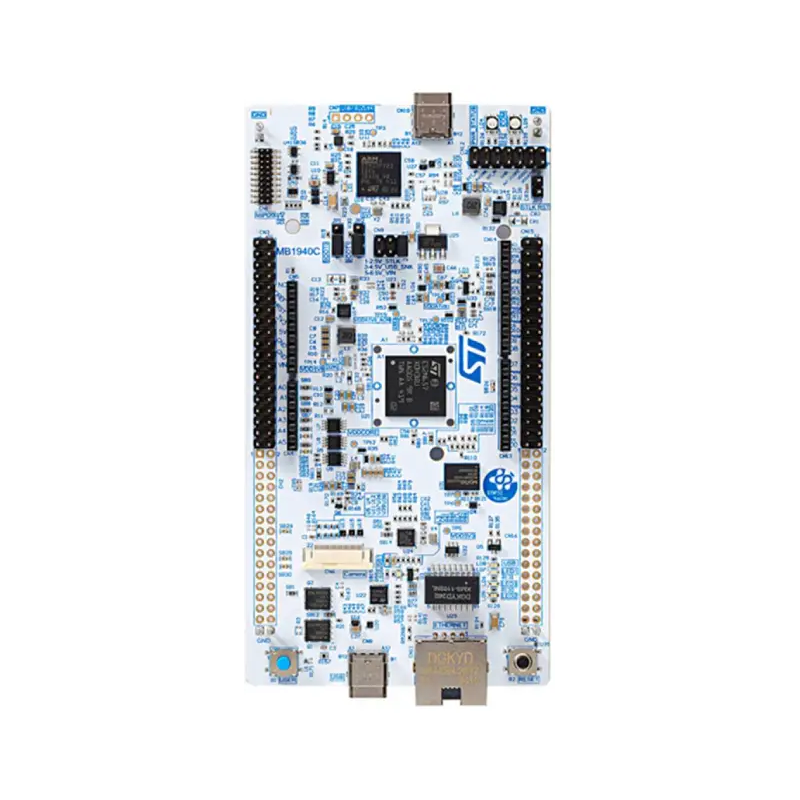

NUCLEO-N657X0-Q – starter kit with a microcontroller from the STM32 family (STM32N657X0)
search
  • NUCLEO-N657X0-Q – starter kit with a microcontroller from the STM32 family (STM32N657X0)
ID: 1195739
5902186303317
zł267.77
Tax included

zł217.70 tax excl.

The NUCLEO-N657X0-Q is an advanced evaluation board designed for prototyping complex applications based on the STM32N657X0 microcontroller with a Cortex-M55 core. With extensive input/output interface capabilities, three types of expansion connectors, and an integrated debugger, it is ideal for R&D projects, embedded systems, industrial communication, and automation. The board ensures a quick start and full software support within the STM32 ecosystem

24h
Available
Available quantity: 2

Description

The NUCLEO-N657X0-Q is an advanced development board from the STM32 Nucleo-144 series, equipped with the STM32N657X0 microcontroller based on the Arm Cortex-M55 core. It is intended for prototyping applications that require high processing power, a large number of I/O lines, and integration with various communication interfaces. The board offers three standard expansion connector formats: ST morpho, ST Zio, and Arduino Uno V3, enabling easy connection of external modules and peripherals. The integrated ST-LINK/V3EC programmer-debugger allows for direct programming and debugging without the need for external tools. The product is compatible with the STM32Cube ecosystem and supported by development environments such as STM32CubeIDE, IAR, and Keil MDK.

Specifications

  • Microcontroller: STM32N657X0 (Arm Cortex-M55)
  • Microcontroller package: LQFP144
  • Number of I/O lines: up to 114 GPIO
  • Expansion connectors: ST morpho, ST Zio, Arduino Uno V3
  • Debug interface: integrated ST-LINK/V3EC
  • Power supply: via USB or external (VIN, E5V)
  • USB Type-C connector for power and communication
  • Board dimensions: 100 × 70 mm (Nucleo-144 standard)
  • Support for debugger firmware updates via USB
  • Compatible with STM32CubeMX and STM32CubeIDE
1195739

Data sheet

Microcontroller
STM32N657X0
Flash memory
Brak
Number of I/O
114
Ethernet
1000Mb x1
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
Yes
Length
100 mm
Width
70 mm
USB connector type
USB type C
