NUCLEO-G431KB - starter kit with a STM32 microcontroller (STM32G431KB)
search
  • NUCLEO-G431KB - starter kit with a STM32 microcontroller (STM32G431KB)
  • NUCLEO-G431KB - starter kit with a STM32 microcontroller (STM32G431KB)
ID: 575468
5906623436309
zł69.70
Tax included

zł56.67 tax excl.

NUCLEO series starter kit equipped with STM32G431KB microcontroller (128 kB Flash, Cortex-M4), with built-in programmer-debugger ST-Link-V3E, equipped with connectors compatible with Arduino Nano.

24h
Available
Available quantity: 11

Description

The Nucleo development kit with the STM32 microcontroller allows you to easily try new solutions and build prototypes. The board is equipped with a connector compatible with Arduino Nano. The built-in ST-LINK programmer / debugger is a great help, it can operate in three modes: mass storage, virtual COM port or debugger port. The programmer cooperates in many popular programming environments such as IAR, Keil, STM32CubeIDE and others based on GCC.

properties

  • STM32 microcontroller in the UFQPN32 housing
  • 1 programmable LED
  • 1 reset button
  • Quartz resonator 24 MHz

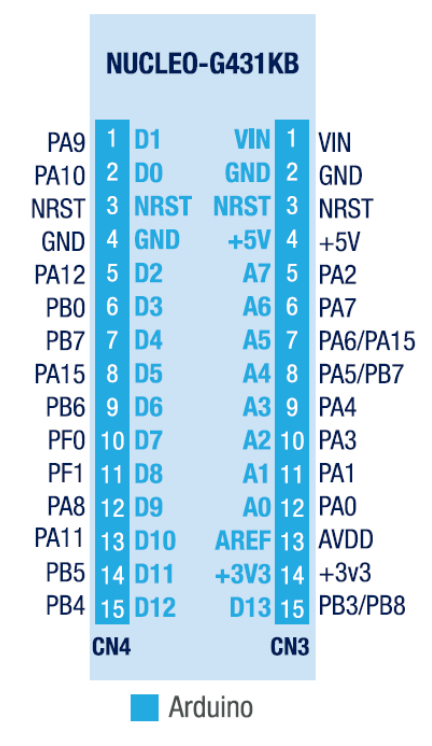

  • Outputs compatible with Arduino Nano
  • Possibility of power supply via USB or external power supply
  • Built-in ST-LINK programmer / debugger operating in three modes: mass storage, virtual COM port or debugger port
  • Compatibility with free libraries and sample programs available in STM32Cube
  • Compatible with many development environments such as IAR, Keil and others based on GCC
  • Dimensions: 50.3x18.5 mm

https://www.st.com/content/ccc/fragment/product_related/rpn_information/product_circuit_diagram/group0/29/97/bd/1d/25/8b/48/cd/bd_stm32g431/files/bd_stm32g431.jpg/_jcr_content/ translations / en.bd_stm32g431.jpg

Properties of the microcontroller

  • ARM 32-bit Cortex-M4 core
  • Maximum frequency: 170 MHz
  • ART accelerator
  • Power supply: 1,71-3,6 V
  • Mathematical hardware accelerators:
    • CORDIC for trigonometric functions
    • FMAC for mathematical filtering functions
  • 128 kB of flash memory protected by PCROP
  • 22 kB of SRAM memory, with hardware parity checking for the first 16 kB
  • Four power saving modes: Sleep, Stop, Standby and Shutdown
  • Possibility of direct supply of real-time RTC clock and supporting registers
  • Quartz resonator 4-48 MHz and 32 kHz
  • 26 high-speed I / O ports, of which some tolerate 5 volts
  • DMA controller supporting 12 channels
  • 2 analog-to-digital converters (ADC) with a resolution of up to 16-bit
  • 4 digital-to-analog converters (DAC) with 12-bit resolution
  • 4 super fast comparators
  • 14 counters
  • RTC calendar with alarm and the possibility of waking the microcontroller from the Stop or Standby state
  • interfaces:
    • 1 x FDCAN
    • 3 x I2C
    • 4 x USART / UART
    • 1 x LPUART
    • 3 x SPI
    • 1 x SAI
    • USB 2.0 full-speed
  • Random number generator (RNG)
575468

Data sheet

Microcontroller
STM32G431KB
Flash memory
128kB
Number of I/O
14
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
50,3 mm
Width
18,5 mm
USB connector type
USB type A
