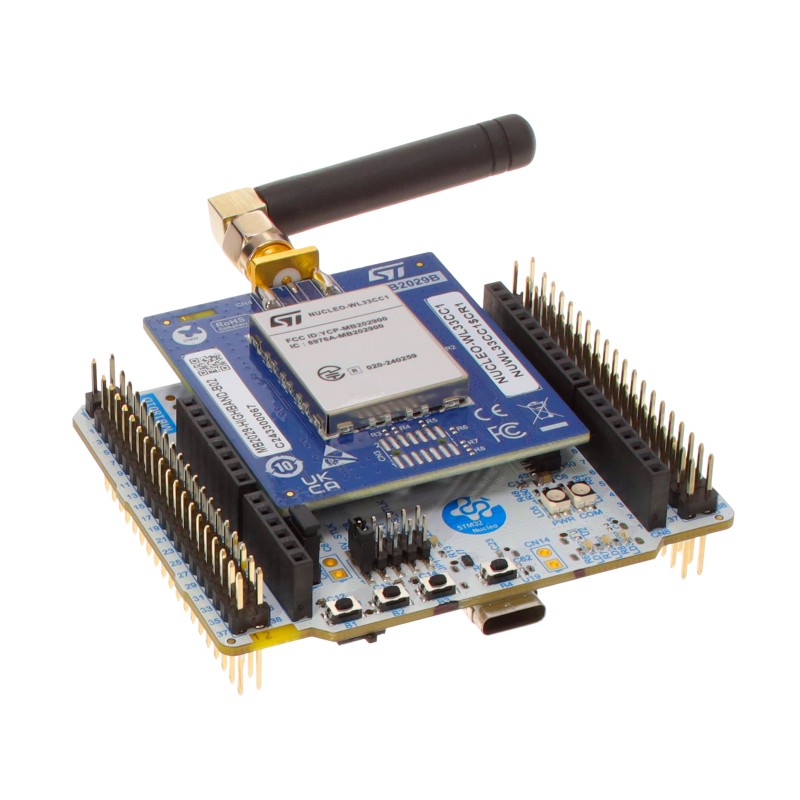

NUCLEO-WL33CC1 – starter kit with a microcontroller from the STM32 family (STM32WL33CCV6)
search
  • NUCLEO-WL33CC1 – starter kit with a microcontroller from the STM32 family (STM32WL33CCV6)
ID: 1195737
5902186303300
zł237.81
Tax included

zł193.34 tax excl.

The NUCLEO-WL33CC1 is a versatile development board dedicated to sub-GHz wireless applications, ideal for prototyping IoT solutions, smart metering, building automation, and industrial systems. With its integration of a microcontroller and transceiver, along with broad compatibility with additional modules, it enables fast and efficient development of advanced communication projects

24h
Available
Available quantity: 2

Description

The NUCLEO-WL33CC1 is a development board from the STM32 Nucleo-64 series, featuring the STM32WL33CCV6 microcontroller with an Arm® Cortex®-M0+ core, an integrated sub-GHz transceiver, 256 kB of Flash memory, and 32 kB of SRAM. The board supports 868/915 MHz frequency bands, enabling operation with various wireless protocols such as WM-Bus, Sigfox™, mioty, KNX-RF, and IEEE 802.15.4g. Thanks to its compatibility with Arduino Uno V3 and ST morpho connectors, the board allows easy integration with additional modules and extensions.

Specifications

  • Microcontroller: STM32WL33CCV6 (Arm® Cortex®-M0+)
  • Memory: 256 kB Flash, 32 kB SRAM
  • Frequency bands: 868/915 MHz
  • Supported modulations: OOK, ASK, 2(G)FSK, 4(G)FSK, D-BPSK, DSSS
  • Connectors: Arduino Uno V3, ST morpho, USB Type-C
  • Additional components: 3 user LEDs, 3 user buttons, 1 reset button
  • Power supply: USB VBUS or external source
  • Dimensions: Nucleo-64 standard
  • Compatible with STM32CubeWL3
1195737

Data sheet

Microcontroller
STM32WL33CCV6
Flash memory
256kB
Number of I/O
32
Ethernet
1000Mb x2
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
68,6 mm
Width
53,4 mm
USB connector type
USB type C
