NUCLEO starter kit featuring an STM32U385RG microcontroller (1 MB Flash, Cortex-M33), a built-in ST-Link/V3 programmer-debugger, and Arduino-compatible connectors. STMicroelectronics NUCLEO-U385RG-Q

24h
Available
Available quantity: 2

Description

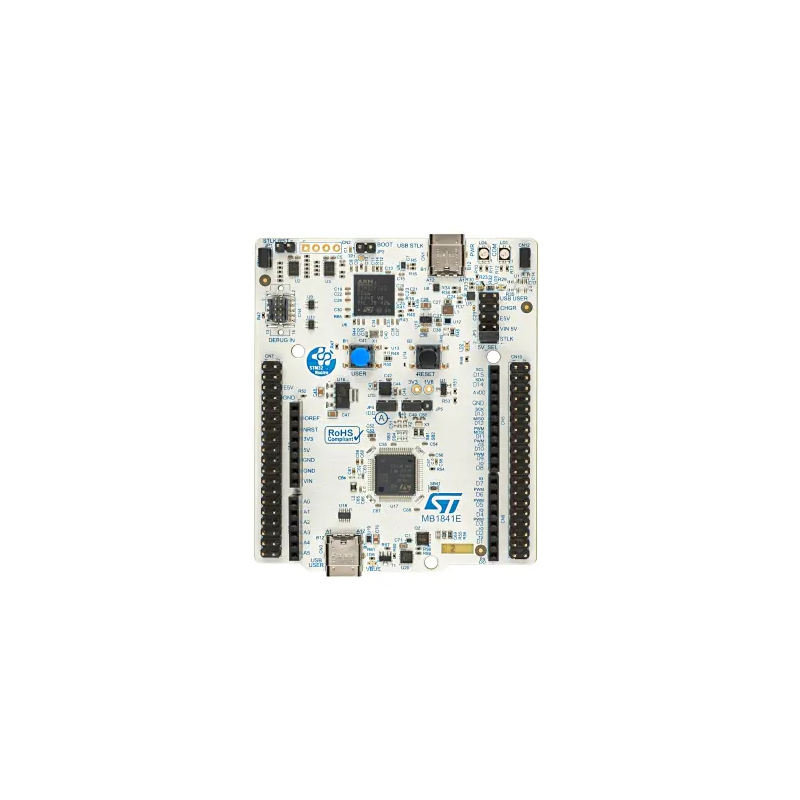

NUCLEO-U385RG-Q (STM32 Nucleo-64) is equipped with the STM32U385RG microcontroller in an LQFP64 package. The built-in programmer/debugger enables fast and easy programming and testing of the device. The flexible power supply options allow convenient use of the development board in the tested application.

Two types of connectors: Arduino Uno V3 and ST Morpho (providing access to all microcontroller GPIO pins) ensure access to every microcontroller component and do not exclude the possibility of using Arduino-compatible shields together with the STM32 Nucleo-64.

Features

  • STM32U385RG microcontroller in LQFP64 package
  • General-purpose LED
  • General-purpose button + RESET button
  • 32,768 kHz LSE crystal oscillator
  • Expansion connectors:
    • Arduino Uno V3
    • ST Morpho
  • Power supply via USB or external power source (3.3 V, 5 V, 7-12 V)
  • Integrated ST-Link/V3EC programmer/debugger (SWD) with capability to work with external devices
  • USB interface can operate in one of three modes:
    • Virtual COM port
    • Mass storage
    • Debug port
  • USB Type-C connector with USB SNK/UFP function (Full Speed)
  • Built-in cryptography
  • Internal SMPS power supply
  • Full compatibility with versatile HAL libraries containing many examples of microcontroller peripherals and STMicroelectronics devices usage
  • Supports a wide range of development software such as: IAR, Keil, GCC-based IDEs
1197826

Data sheet

Microcontroller
STM32U385RG
Flash memory
1 MB
Number of I/O
52
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
82,5 mm
Width
70 mm
USB connector type
USB type C
