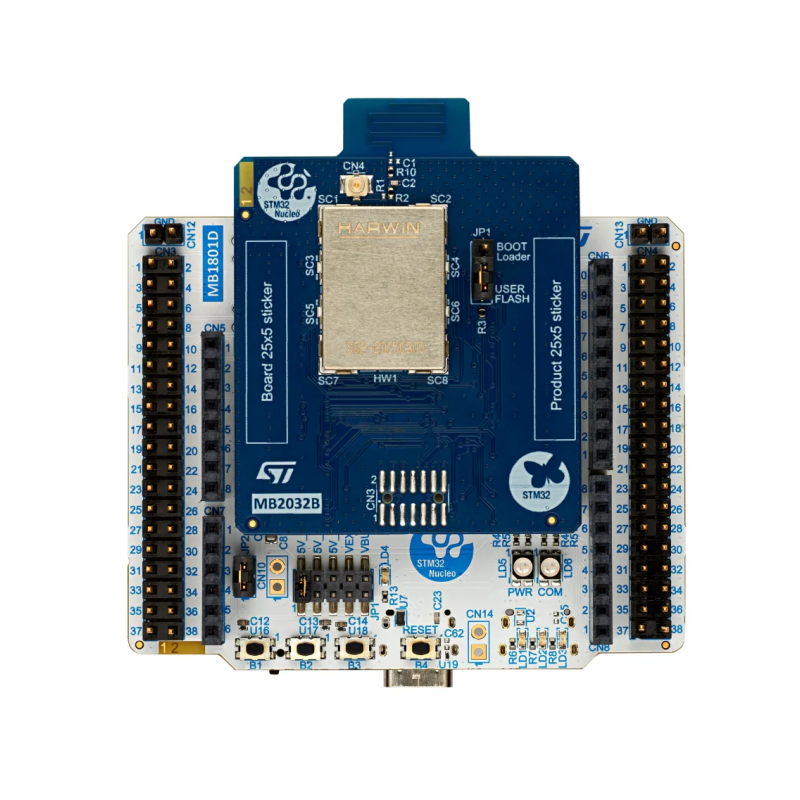

NUCLEO-WB09KE – STM32 Nucleo-64 development board with STM32WB09KE microcontroller, Bluetooth Low Energy, ARM Cortex-M0+
search
  • NUCLEO-WB09KE – STM32 Nucleo-64 development board with STM32WB09KE microcontroller, Bluetooth Low Energy, ARM Cortex-M0+
ID: 1199770
5902186308435
zł223.85
Tax included

zł181.99 tax excl.

NUCLEO-WB09KE is a low-power STM32 development board with the STM32WB09KE microcontroller and Bluetooth Low Energy v5.4 support, designed for creating wireless applications. ST morpho and ARDUINO Uno V3 connectors enable rapid prototyping and expansion of IoT systems.

24h
Available
Available quantity: 2

Description

The NUCLEO-WB09KE development board with the STM32WB09KE microcontroller enables the creation of low-power wireless applications using Bluetooth Low Energy version 5.4. The microcontroller is equipped with 512 kB Flash memory and 64 kB SRAM, enclosed in a VFQFPN32 package with up to 20 I/O lines. The board integrates a 2.4 GHz transceiver with a PCB antenna and an STLINK-V3EC programmer-debugger supporting MSC, Virtual COM, and debug port functions. Thanks to the ST morpho and ARDUINO Uno V3 connectors, expansion with additional modules and full access to the microcontroller pins is possible. Supported development environments include STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM. The board is adapted for working with two-layer PCBs thanks to integrated RF components such as the balun and HSE capacitors.

Properties

  • Microcontroller: STM32WB09KE, ARM Cortex-M0+
  • Flash memory: 512 kB
  • SRAM: 64 kB
  • Microcontroller package: VFQFPN32
  • Number of available I/O pins: up to 20
  • Radio interface: Bluetooth Low Energy v5.4, 2.4 GHz
  • Integrated PCB antenna
  • Connectors: USB Type-C, ARDUINO Uno V3, ST morpho
  • Debugger: STLINK-V3EC (MSC, Virtual COM, debug port)
  • Power supply: via ST-LINK USB or external source
  • User elements: 3 user buttons, 1 RESET button, 3 LEDs
  • Compatibility with STM32CubeWB0 package and software libraries
1199770

Data sheet

Microcontroller
STM32WB09KE
Flash memory
512kB
Number of I/O
20
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
Other
Width
Other
USB connector type
USB type C
