NUCLEO-C071RB is a versatile STM32 development board with the STM32C071RB microcontroller, suitable for creating embedded applications using ST morpho and ARDUINO connectors. The built-in programmer and rich development environment support rapid prototyping.

24h
Available
Available quantity: 15

Description

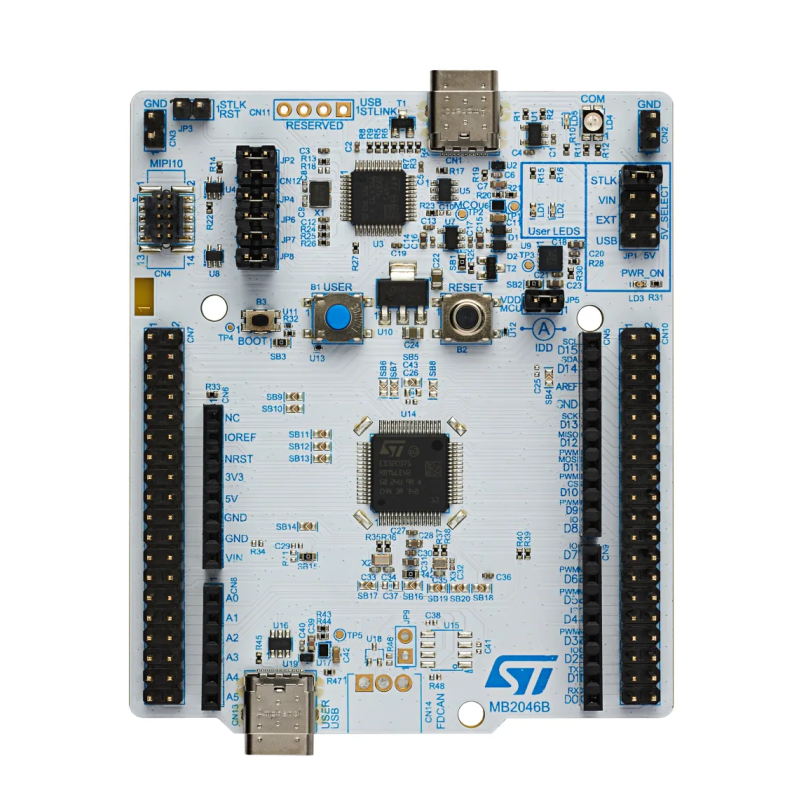

The NUCLEO-C071RB development board based on the STM32C071RB microcontroller enables the creation and testing of embedded applications using the ARM Cortex-M0+ core. The microcontroller in an LQFP64 package, equipped with 128 kB Flash memory and 36 kB SRAM, provides up to 51 I/O lines. The board features ST morpho and ARDUINO Uno V3 connectors, which allow full access to microcontroller pins and integration with a wide range of extensions. The built-in ST-LINK programmer-debugger enables programming and debugging without the need for external hardware. The board includes a 32.768 kHz clock oscillator, a user button, a RESET button, and an LED shared with the ARDUINO interface. Supported development environments include STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM.

Properties

  • Microcontroller: STM32C071RB, ARM Cortex-M0+
  • Flash memory: 128 kB
  • SRAM: 36 kB
  • Microcontroller package: LQFP64
  • Number of I/O pins: up to 51
  • Oscillator: 32.768 kHz
  • LEDs and buttons: 1 LED (shared with Arduino), 1 user button, 1 RESET button
  • Connectors: ARDUINO Uno V3, ST morpho, USB for ST-LINK
  • Debugger: integrated ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC)
  • Power supply: USB VBUS or external source
  • Support: STM32Cube MCU Package, STM32CubeIDE, IAR Embedded Workbench, MDK-ARM
1199766

Data sheet

Microcontroller
STM32C071RB
Flash memory
128kB
Number of I/O
51
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
Other
Width
Other
USB connector type
USB type C
