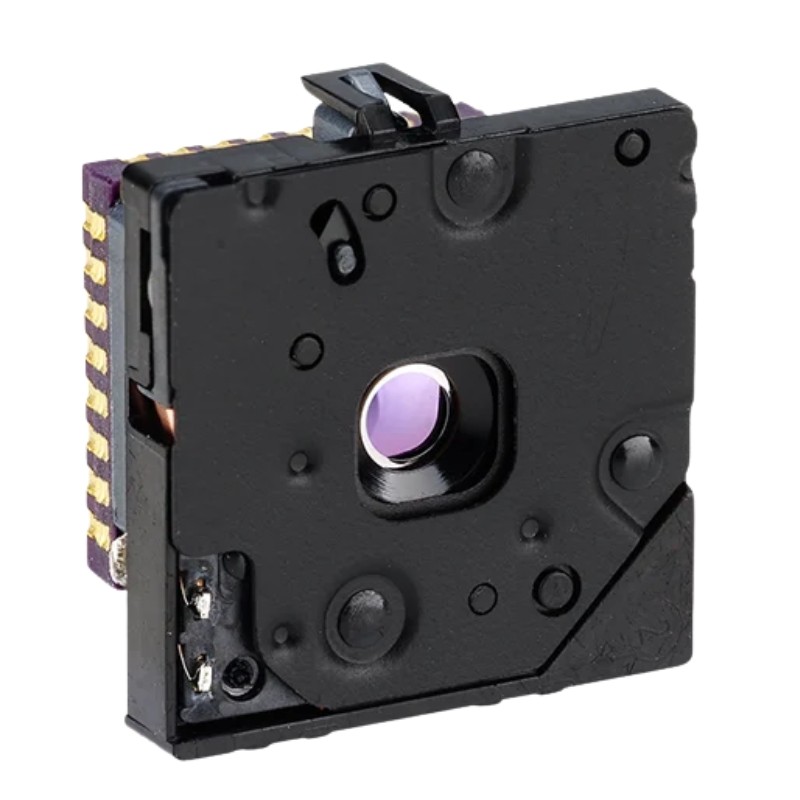

FLIR Lepton 3.1R - Thermal Camera Module 160 x 120 px, 95°
ID: 1205412
zł807.42
Tax included
zł656.44 tax excl.
Compact thermal camera module featuring an uncooled microbolometer with a resolution of 160 x 120 pixels. Supports radiometric temperature measurement, provides a wide 95° field of view, and uses an SPI interface for image transmission. FLIR Lepton 3.1R (500-0758-03)
Description
The thermal camera module features an uncooled microbolometer detector operating in the longwave infrared spectrum from 8 µm to 14 µm. The module generates thermal images with a resolution of 160 x 120 pixels and supports radiometric temperature measurement, making it suitable for equipment condition monitoring, building automation, occupancy detection, industrial electronics, and IoT applications utilizing thermal analysis.
The camera provides a wide 95° horizontal field of view and thermal sensitivity below 50 mK. An integrated shutter performs automatic non-uniformity correction (NUC), ensuring stable image quality. Communication is handled through an SPI interface for image transmission and a CCI interface compatible with I2C for module configuration. Its compact dimensions and low power consumption allow integration into mobile devices, monitoring systems, and applications requiring thermal imaging capabilities.
Features
- FLIR Lepton 3.1R thermal camera module
- Manufacturer part number: 500-0758-03
- Thermal resolution: 160 x 120 px
- Uncooled microbolometer detector
- Radiometric temperature measurement
- Thermal sensitivity NEdT < 50 mK
- Horizontal field of view (HFOV): 95°
- Diagonal field of view (DFOV): 119°
- Focal length: 1.23 mm
- Spectral range: 8 µm to 14 µm
- Frame rate: 8.6 Hz
- Integrated shutter for NUC correction
- SPI video interface
- CCI control interface (I2C-compatible)
- Support for 14-bit, 8-bit, and 24-bit RGB output formats
- Typical power consumption: 150 mW
- Supply voltages: 2.8 V, 1.2 V, and 2.5 V to 3.1 V for I/O
- 32-pin connector compatible with Molex sockets
- Dimensions: 12.7 x 11.8 x 7.2 mm
- Weight: 0.9 g
