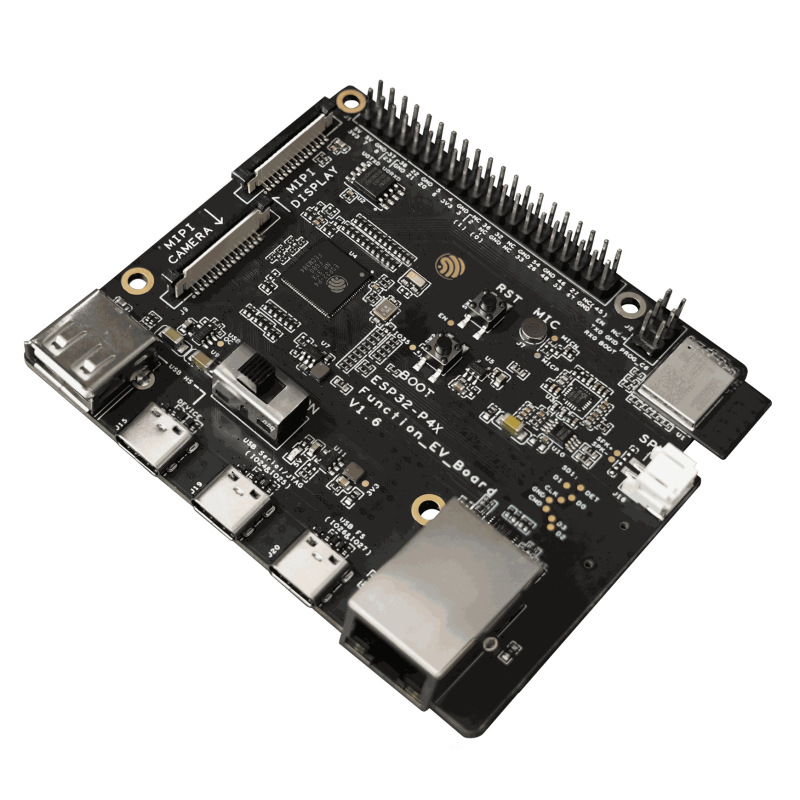

ESP32-P4X-Function-EV - development board with ESP32-P4 module
ID: 1206215
zł379.00
Tax included
zł308.13 tax excl.
A development platform based on the ESP32-P4 chip with a dual-core RISC-V processor, designed for multimedia, IoT, and machine vision applications. The device offers support for up to 32 MB of RAM, MIPI-CSI and MIPI-DSI interfaces, and a hardware H.264 encoder for real-time image and audio processing. The integrated ESP32-C6 module provides Wi-Fi 6 and Bluetooth 5 LE connectivity. Espressif Systems ESP32-P4X-Function-EV
Description
ESP32-P4X-Function-EV-Board is an advanced development platform designed for building modern multimedia applications such as vision systems, intelligent control panels, and IoT devices. It is based on the powerful ESP32-P4 chip, which uses a dual-core RISC-V processor and supports up to 32 MB of PSRAM, providing high computational performance for graphics and audio-video applications. The board is designed for low-cost, energy-efficient, yet high-performance networked systems. With support for USB 2.0, MIPI-CSI, MIPI-DSI, and H.264 encoder, it enables real-time image and audio processing.
The board includes an ESP32-C6-MINI-1 module responsible for Wi-Fi 6 and Bluetooth 5 (LE) connectivity, providing modern wireless communication capabilities. A MIPI-CSI camera interface is also available, enabling vision-based features such as monitoring and image recognition. The board is designed for flexibility and easy integration—most I/O pins are exposed via headers, allowing rapid prototyping. As a result, the ESP32-P4X-Function-EV-Board is well suited for projects such as video intercoms, network cameras, smart home control panels, industrial displays, and dashboard systems. Its advanced hardware architecture also supports real-time image and audio processing applications.
Features
- Main chip: ESP32-P4
- Architecture: dual-core RISC-V
- PSRAM: up to 32 MB
- Flash memory: 16 MB SPI
- Wireless connectivity: Wi-Fi 6 (ESP32-C6-MINI-1), Bluetooth 5 (LE)
- USB interface: USB 2.0 Full-speed and OTG High-Speed
- MIPI-CSI: camera support
- MIPI-DSI: display support
- Video encoding: H.264 encoder
- Ethernet: RJ45 10/100 Mbps
- Interfaces: GPIO exposed on J1 connectors
- USB Serial/JTAG
- USB host up to 500 mA
- USB device
- Oscillators: 40 MHz XTAL, 32.768 kHz XTAL
- Power supply: 5 V
- Converters: buck DC-DC (3.3 V, VDD_HP)
- Voltage regulation: LDO
- Power switch: ON/OFF
- USB controller: TPS2051C (500 mA limit)
- MicroSD slot: 4-bit mode
- Audio: microphone, ES8311 audio codec support
