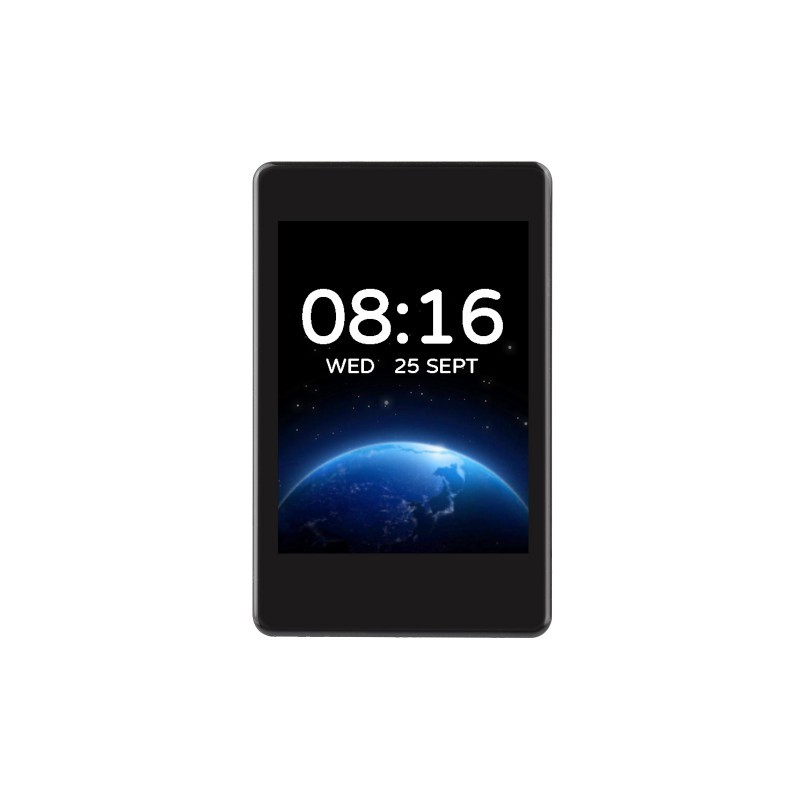

ESP32-S3 development board with 2″ capacitive touch display 240×320 and camera - Waveshare 29668
ID: 1197569
5902186308763
zł96.27
Tax included
zł78.27 tax excl.
ESP32-S3-Touch-LCD-2-C is a versatile development module with an IPS touch screen and OV5640 camera, designed for projects involving image processing, video analysis, and gesture control. With wireless communication, motion sensors, and extensive expansion capabilities, it is well-suited for IoT devices, mobile interactive systems, and compact user terminals.
Description
Miniature development module with the ESP32-S3R8 microcontroller featuring a dual-core Xtensa LX7 processor running up to 240 MHz. It includes a 2-inch IPS touch screen with a resolution of 240×320 pixels and a capacitive touch panel controlled by the CST816D controller. The module also features a 5 MP OV5640 camera, QMI8658 IMU sensor (3-axis accelerometer and 3-axis gyroscope), TF card slot, USB Type-C interface, and a 3.7 V battery power connector (MX1.25).
With support for ESP-IDF and Arduino IDE, the module is ideal for projects involving image processing, HMI interfaces, and Wi-Fi and Bluetooth communication applications. Its compact design enables easy integration into IoT devices and mobile embedded systems.
Features
- ESP32-S3R8 with dual-core Xtensa 32-bit LX7 processor up to 240 MHz
- Support for 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE
- 16 MB Flash, 8 MB PSRAM, 512 kB SRAM, 384 kB ROM
- 2" IPS display, 240×320 px, 262K colors, SPI interface
- Capacitive touch support (CST816D) via I2C interface
- OV5640 5 MP camera – image and video capture
- QMI8658 IMU sensor (3-axis accelerometer and 3-axis gyroscope)
- TF card slot, USB Type-C port, MX1.25 3.7 V battery connector
- GPIO breakout (22 pins) for peripheral function configuration
- Support for ESP-IDF and Arduino IDE
Included
- ESP32-S3-Touch-LCD-2 module x1
- OV5640 camera module x1
1197569
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
