M5Stack PoECAM - kit with ESP32 module and OV3660 camera
ID: 588225
5906623409464
zł220.44
Tax included
zł179.22 tax excl.

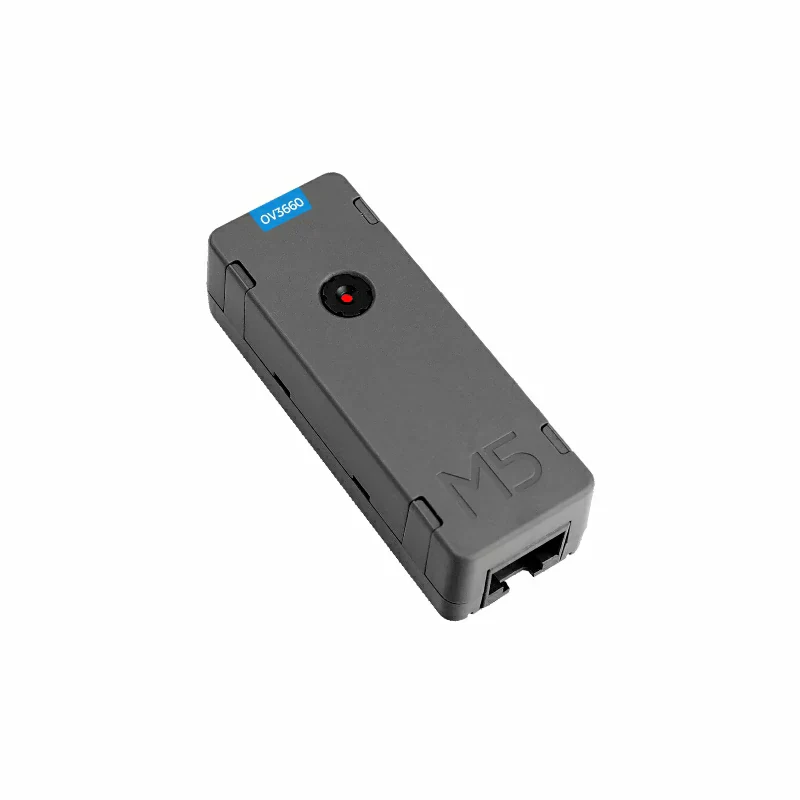

M5Stack series kit equipped with ESP32 and camera with OV3660 sensor. It has a built-in W5500 chip and can be powered by the RJ45 (PoE) connector. M5Stack U121-B-V11
Description
M5Stack series kit with ESP32 module with dual-core 32-bit Xtensa 240 MHz LX6 processor, Wi-Fi and Bluetooth communication, 8 MB PSRAM and 16 MB Flash memory. It is equipped with a camera with an OV3660 sensor with a resolution of 3 MP and the W5500 system with the possibility of power supply via the RJ45 (PoE) connector. The user has a button and two LEDs to indicate the module's operation.
M5Stack PoECAM can be programmed by Arduino, UIFlow (using Blockly, MicroPython language) and ESP-IDF, and the manufacturer provides an extensive API that allows, for example, to use the module as an Ethernet camera. The set will be perfect for IoT-related projects, as a STEM educational module or in Smart Home devices. The full documentation of the set with examples is available on the manufacturer's website.
Features
- Dual core processor ESP32-D0WDQ6-V3 240MHz, 600 DMIPS, 520KB SRAM
- Flash 16 MB
- 8MB PSRAM
- OV3660 image sensor
- Maximum resolution of 3 MP
- Data format: YUV (422/420) / YCbCr422, 8-bit compressed data, RGB565 / 555, 8- / 10-bit Raw RGB
- DFOV 65 °
- PoE IEEE802.3 AF, max power 6W
- W5500 Ethernet controller, built-in 32KB buffer, SPI interface
- Supports TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE protocols
- Specification of the RJ45 Ethernet interface
- User button, 2 x LED indicator
- Dimensions: 64 x 24 x 18 mm
- Weight: 38 g
Kit contains
- M5Stack PoECAM module
- Mounting bracket
- LEGO adapter
