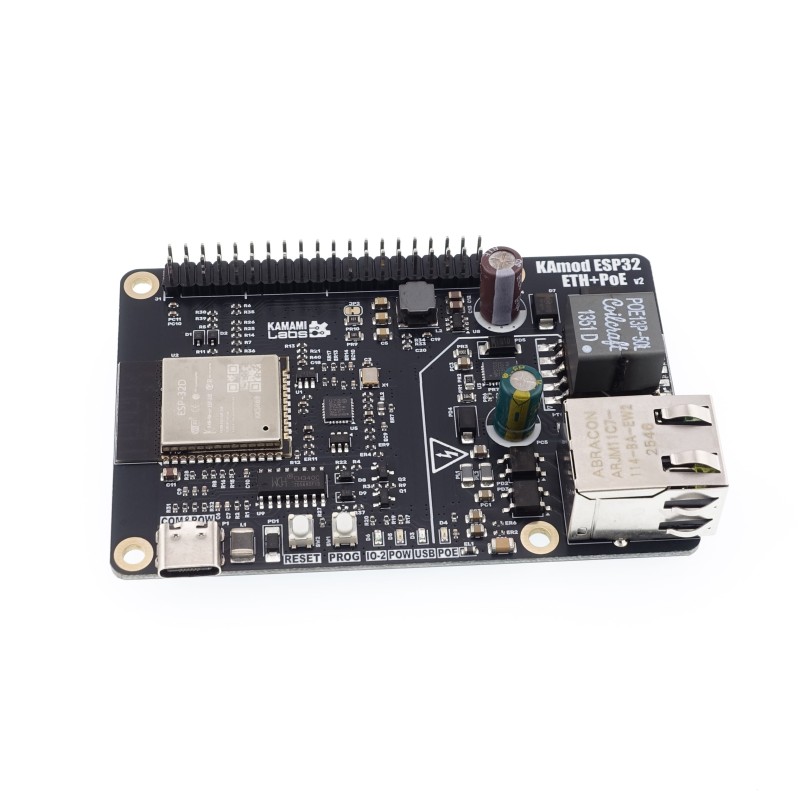

Main view
search
  • Main view
  • Front view
  • Angled view - top side
  • Angled view - bottom side
  • Board with packaging
ID: 1191656
5906623496143
zł92.98
Tax included

zł75.59 tax excl.

Evaluation board with ESP32-WROOM-32 module (Wi-Fi 2.4 GHz, Bluetooth 4.2 LE, Xtensa Dual-Core 240 MHz, 4 MB Flash), LAN8742 10/100 Mb Ethernet interface, IEEE 802.3af/at PoE power supply, USB-C USB-UART converter and 40-pin GPIO header compatible with Raspberry Pi standard. KAmodESP32 ETH+POE

24h
Available
Available quantity: 1

Description

The KAmodESP32 ETH+POE board features the ESP32-WROOM-32 module providing wireless communication via 2.4 GHz Wi-Fi compliant with IEEE 802.11 b/g/n and Bluetooth 4.2 LE. In addition to wireless connectivity, the board integrates a wired 10/100 Mb Ethernet interface based on the LAN8742 controller with a standard RJ45 connector, enabling integration into network infrastructure.

Programming is performed through an integrated USB-UART converter with a USB-C connector. The board includes a PoE power supply circuit compliant with IEEE 802.3af/at Class 0, allowing power delivery directly through the Ethernet cable. Onboard regulators provide 5 V and 3.3 V outputs with a total current of up to 1 A for powering the module and external components.

The mechanical layout follows the Raspberry Pi form factor and includes a 40-pin GPIO header compatible with this standard. The header exposes GPIO lines, communication interfaces and 5 V and 3.3 V supply rails. The board is intended for IoT projects, automation systems and devices requiring simultaneous support of Wi-Fi, Bluetooth and Ethernet connectivity.

Features

  • Module: ESP32-WROOM-32
  • Microprocessor: Xtensa Dual-Core 32-bit LX6, up to 240 MHz
  • SRAM: 520 kB
  • Flash memory: 4 MB SPI Flash
  • Wi-Fi: 2.4 GHz IEEE 802.11 b/g/n
  • Bluetooth: 4.2 LE
  • Ethernet interface: LAN8742, 10/100 Mb, full/half duplex
  • Network connector: RJ45
  • USB-UART converter: USB-C connector
  • PoE power supply: IEEE 802.3af/at Class 0
  • Output voltages: 5 V and 3.3 V
  • Maximum output current: 1 A
  • Protection: Overvoltage, overload and thermal
  • GPIO header: 40-pin, Raspberry Pi compatible
  • Dimensions: 85 x 56 mm
  • Height: approx. 20 mm
