ESP32-S3-ETH is a versatile development board for projects requiring simultaneous support for Ethernet, Wi-Fi, and Bluetooth. With support for cameras, TF cards, and peripheral interfaces, it is well-suited for implementing solutions in image transmission, remote control, smart monitoring systems, and integration with Raspberry Pi Pico HATs. The option to add a PoE module further enhances power and communication flexibility in industrial and IoT applications.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

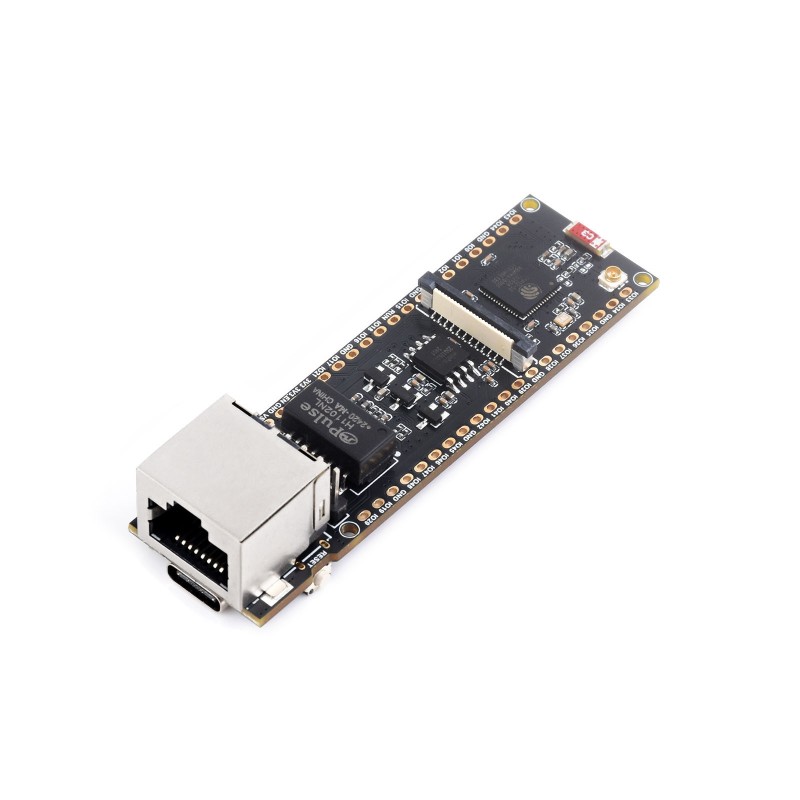

ESP32-S3-ETH is a development board with both Ethernet and wireless functionality, designed for AIoT projects, data transmission, and smart embedded systems. It is based on the ESP32-S3R8 microcontroller with a dual-core Xtensa LX7 processor running at up to 240 MHz. The board integrates 16 MB of Flash memory, 8 MB of PSRAM, and communication interfaces including SPI, UART, I2C, as well as a camera interface and TF card slot.

The onboard W5500 Ethernet chip enables 10/100 Mbps transmission over SPI, and there is also a connector for an optional PoE module compliant with IEEE 802.3af. A built-in ceramic antenna with a switchable IPEX1 connector allows Wi-Fi 2.4 GHz and Bluetooth 5/BLE connectivity. The layout is compatible with Raspberry Pi Pico headers, enhancing expandability.

Features

  • Microcontroller: ESP32-S3R8 – Xtensa LX7, 2 cores, 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash (W25Q128)
  • Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5/BLE, Ethernet 10/100 Mbps (W5500)
  • RJ45 port with H1102NLT transformer
  • Camera: interface compatible with OV2640, OV5640 (module not included)
  • TF card support, USB Type-C programming
  • Power supply: via USB-C or optional PoE module
  • LED indicators: ACT (operation), LINK (network)
  • Buttons: BOOT, RESET
  • IPEX1 connector for external antenna (requires resistor re-soldering)
  • 40-PIN header compatible with Pico HATs

Included in the set

  • ESP32-S3-ETH x1
  • 40PIN male header (black) x1
