ESP32-S2-LCD-0.96 board with WiFi ESP32-S2 and LCD display without headers - Waveshare 20658
ID: 1178190
5906623426102
zł59.72
Tax included
zł48.55 tax excl.
Board with WiFi Espressif ESP32-S2 module and 0.96" LCD display. It offers 4 MB Flash memory and 8 MB SRAM. Leads are compatible with HAT modules for Raspberry Pi Pico. Waveshare ESP32-S2-LCD-0.96
Description

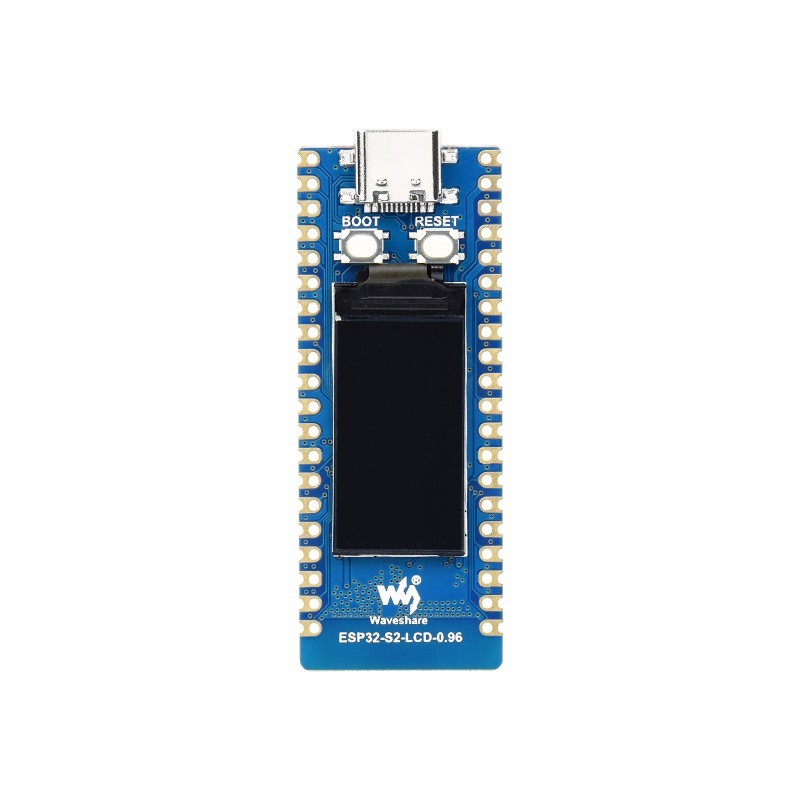

Board with WiFi Espressif ESP32-S2 module equipped with 4 MB Flash memory, 8 MB external PSRAM memory and integrated WiFi 802.11 b/g/n transceiver. On the board there is a 3.3 V converter with current efficiency up to 1.8 A, an IPS LCD display with a diagonal of 0.96" and a ceramic WiFi antenna. The user has analog inputs as well as I2C, UART and SPI interfaces on 26 GPIO pins. The layout of the pins and the raster is compatible with HAT modules dedicated to the Raspberry Pi Pico, thanks to which the user can use a wide range of available extension modules. The programming board uses a USB type C connector.
| 1. ESP32-S2FH4 | 7. Pinout |
| 2. APS6404L-3SQR-SN 8MB PSRAM | 8. USB typu C Connector |
| 3. DC-DC 3,3V TPS63000DRCR | 9. BOOT |
| 4. Charge manager ETA6096 | 10. RESET |
| 5. Battery connector MX1.25 | 11. LCD IPS 0,96" |
| 6. WiFi antenna |
Thanks to the hardware cryptographic accelerator, RNG, HMAC and the digital signature module, the board offers great potential in the field of IoT systems. It can also be programmed using the Arduino IDE, ESP-IDF or CircuitPython. Full documentation is available on the product page.
Features
- 240MHz 32-bit single-core processor
- 4 MB SPI Flash Memory
- 8 MB of additional PSRAM
- 2.4 GHz Wi-Fi - 802.11b/g/n
- Ceramic antenna
- DC-DC converter 3.3 V 1.8 A
- Optimized power system ensuring low energy consumption
- Power supply: USB type C
- Built-in full speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compliant), GPIO capacitive sensor, temperature sensor and RMT (TX/RX)
- 0.96 "IPS LCD Display
- 3.7V lithium battery charging circuit and MX1.25 connector
- 26 GPIO pins including ADC, UART, SPI, I2C
- The pinout is compatible with Raspberry Pi Pico HAT modules
- Dimensions: 54 x 21 mm
1178190
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
