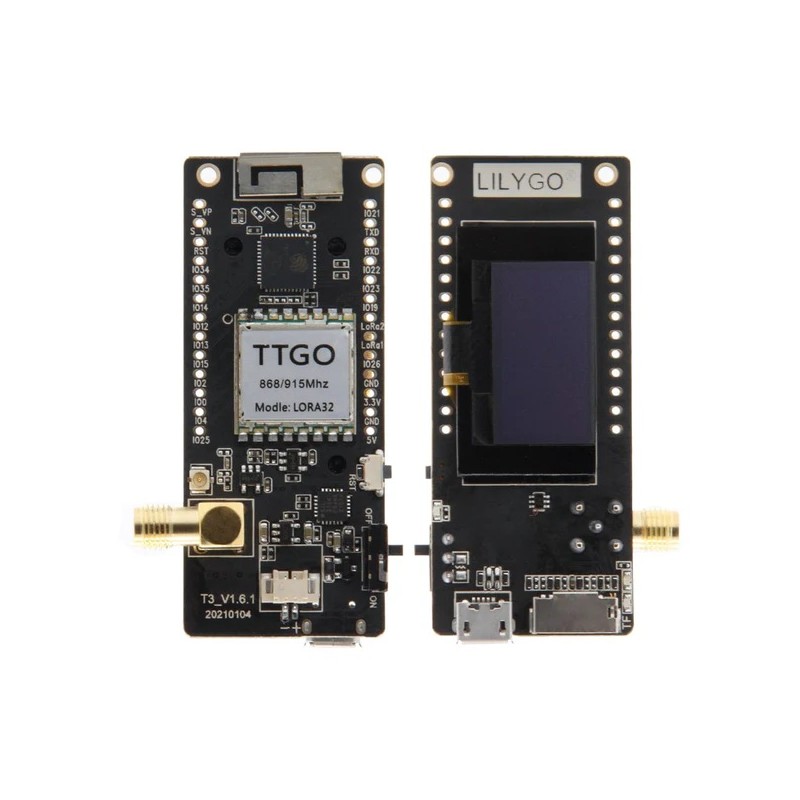

Main view
search
  • Main view
  • Top view
  • Top view
  • Angled view
  • Kit
ID: 1190891
zł139.54
Tax included

zł113.45 tax excl.

LILYGO T3 LoRa32 V1.6.1 development board in the Paxcounter 868MHz (Q168) variant, featuring an ESP32 microcontroller, 4 MB Flash memory, SX1276 LoRa transceiver and 0.96" OLED display with 128 x 64 px resolution. Supports WiFi, Bluetooth 4.2 and BLE, and includes a microSD card slot, CH9102 USB-UART converter and 3.7 V Li-Po battery connector. LILYGO Paxcounter 868MHz [Q168]

4 weeks
Awaiting delivery

Description

Development board with an ESP32 microcontroller and 868 MHz LoRa connectivity, LILYGO Paxcounter 868MHz [Q168], designed for building wireless IoT devices and long-range data transmission systems. The board features a Semtech SX1276 transceiver, 4 MB Flash memory, WiFi and Bluetooth 4.2 with BLE support. The built-in 0.96" OLED display with 128 x 64 px resolution, controlled by the SSD1306 chip over I2C, enables the presentation of messages, connection parameters and measurement data.

Building wireless measurement systems - enables sensor data to be collected and transmitted over LoRa. Developing LoRaWAN network nodes - supports the development of devices communicating with suitable network infrastructure. Mobile device presence monitoring can use Paxcounter firmware to estimate the number of devices detected via WiFi and Bluetooth. Developing local communication systems allows the board to be used for experiments involving message transmission and telemetry. Available functions depend on the installed firmware.

p1190891-7ca03681-0157-43f8-8b02-4b79668f9dab.__CR0%2C0%2C970%2C600_PT0_SX970_V1___.jpg

Power supply via micro USB or a 3.7 V Li-Po battery enables the board to operate in stationary and battery-powered projects. The module features a microSD card slot, CH9102 USB-UART converter, RESET and BOOT buttons, and GPIO pins. Programming can be performed using Arduino IDE and PlatformIO with examples provided by LILYGO. The board includes an onboard WiFi antenna and a LoRa antenna connector.

Features

  • Microcontroller and memory
    • Model: LILYGO T3 LoRa32 V1.6.1
    • Manufacturer variant: Paxcounter 868MHz (Q168)
    • Microcontroller: ESP32
    • Processor: dual-core Xtensa LX6, up to 240 MHz
    • Flash memory: 4 MB
  • Wireless communication
    • LoRa transceiver: Semtech SX1276
    • Operating frequency of this variant: 868 MHz
    • WiFi connectivity: 2.4 GHz
    • Bluetooth: 4.2
    • Bluetooth Low Energy (BLE) support
    • LoRa transceiver interface: SPI
    • Onboard WiFi antenna
    • LoRa antenna connector
  • Display and interfaces
    • Display type: OLED
    • Display size: 0.96"
    • Display resolution: 128 x 64 px
    • Display controller: SSD1306
    • Display interface: I2C
    • USB-UART converter: CH9102
    • USB connector: micro USB
    • Memory card slot: microSD
    • GPIO pins
    • RESET button
    • BOOT button
    • Power switch
  • Power supply and programming
    • Power supply via micro USB
    • 3.7 V Li-Po battery support
    • Battery connector: 2-pin JST GH, 1.25 mm pitch
    • Battery charging via USB
    • Development environments: Arduino IDE, PlatformIO
    • RadioLib library support
    • LoRa, LoRaWAN and OLED display examples

Kit includes

  • LILYGO T3 LoRa32 V1.6.1 Q168 board
  • 2-pin JST power cable, 1.25 mm pitch
  • LoRa antenna
  • 2 x 13-pin male header strips
