zł33.73 tax excl.

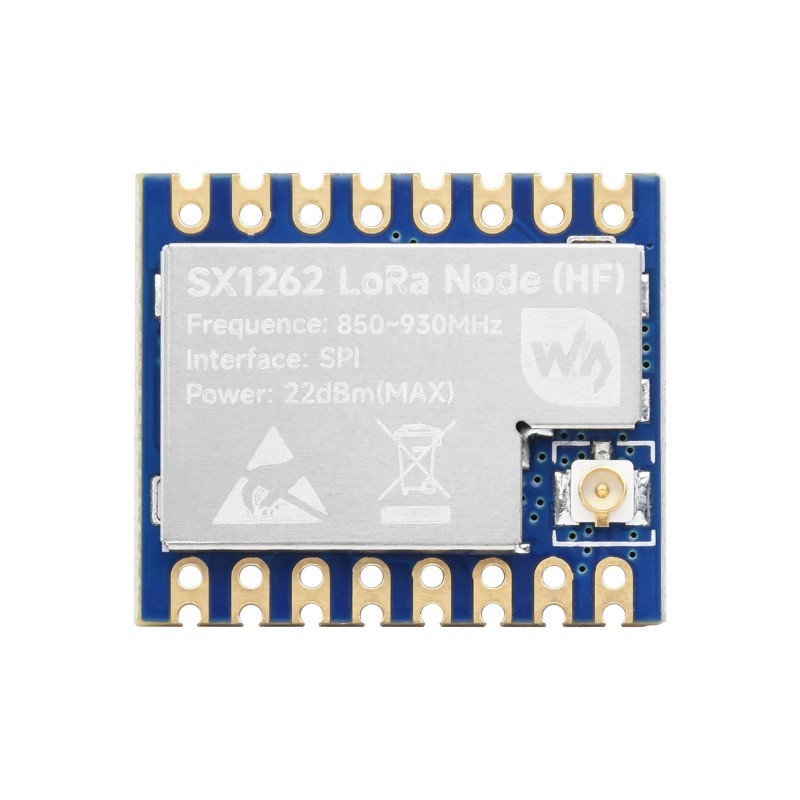

LoRa module working at 868 MHz based on the SX1262 chip. It allows for the implementation of long-range wireless data transmission. Waveshare Core1262-868M
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
LoRa module working at 868 MHz based on the SX1262 chip. It allows for the implementation of long-range wireless data transmission and offers high resistance to interference. The SX1262 is a new generation chip that features higher energy efficiency and longer transmission distance than the traditional SX1278. It works in the EU868 band, which in combination with the LoRa gateway gives you a fast connection to cloud servers (such as the TTN server). Full documentation with examples for the STM32 and Raspberry Pi Pico is available on the product page.
Features
- RF SX1262 chip
- EU868 frequency range (863 to 870 MHz)
- LoRa/(G)FSK modulation
- Data transfer rate 0.018 to 62.5 kbps (LoRa), 0.6 to 300Kbps ((G) FSK)
- Transmit power> 14 dBm at 3.3 V
- Spreading factor SF5 to SF12
- 3.3V operating voltage
- Power consumption:
- On transmission: 45 mA @ 14dBm
- On receive: 5.3 mA at 125 KHz
- Communication bus: SPI
- Working temperature -40 to 85 ℃
- Dimensions 21 x 52 mm
