zł51.84 tax excl.

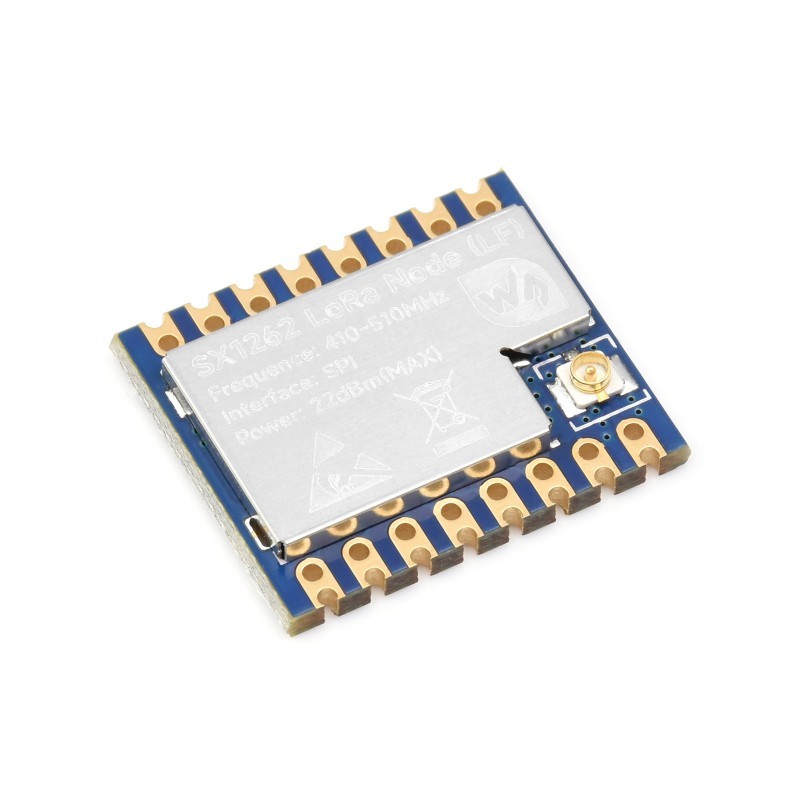

LoRa module operating at 433 MHz based on the SX1262 chip. It allows to realize long-range wireless data transmission. Waveshare Core1262-LF
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
LoRa module operating at 433 MHz based on the SX1262 chip. It allows the realization of long-range wireless data transmission and offers high immunity to interference. The SX1262 is a new-generation chip with higher power efficiency and longer transmission distance than the traditional SX1278. The SX1262 can communicate with the SX1276 and SX1278, which are still compatible with previous LoRa products after upgrades.
Compared to traditional communications, LoRa's Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communications, widely used in military and industrial communication fields. The module operates in the 433 MHz band, which, when combined with a LoRa gateway, gives a high-speed connection to cloud servers (such as the TTN server). The board is equipped with edge-to-edge connectors and can be used as an SMD component. In addition, an IPEX connector for connecting an external antenna has been derived. Full documentation along with examples for STM32 and Raspberry Pi Pico are available on the product page.
Features
- RF chip SX1262
- Frequency range 433 MHz (410 to 510 MHz)
- LoRa/(G)FSK modulation
- Data rate 0.018 to 62.5 kbps (LoRa), 0.6 to 300Kbps ((G)FSK)
- Transmit power > 22 dBm at 3.3 V
- SF5 to SF12 spreading factor
- Operating voltage 3.3 V
- Current consumption:
- When transmitting: 107 mA@22dBm
- On receive: 5.3 mA at 125 KHz
- Communication bus: SPI
- Operating temperature 0 to 85 ℃
- Dimensions 21 x 52 mm
