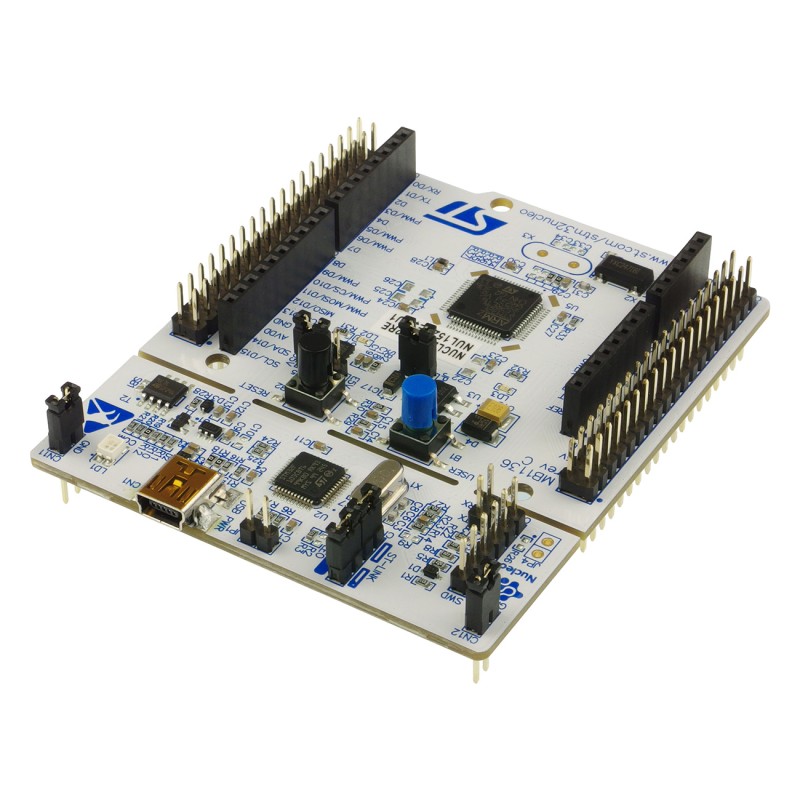

NUCLEO-L152RE
ID: 212020
5906623409822
zł69.11
Tax included
zł56.19 tax excl.
STM32 Nucleo development board for STM32 L1 series - with STM32L152RE MCU, 512KB flash memory, STM, RoHS
NUCLEO-L152RE
STM32 Nucleo development board for STM32 L1 series - with STM32L152RE MCU, 512KB flash memory, STM, RoHS
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 (debugger/programmer).
Features:
- STM32 microcontroller - STM32L152RE
- Two types of extension resources:
- Arduino Uno Revision 3 connectivity
- STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
- On-board ST-LINK/V2-1
- Power supply: USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
- Three LEDs
- Two push buttons: USER and RESET
- Comprehensive free software HAL library including a variety of software examples
- Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs
Contents:
- NUCLEO-L152RE board.
Download:
212020
Data sheet
- Microcontroller
- STM32L152RET6
- Flash memory
- 512kB
- Number of I/O
- 51
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- 82,5 mm
- Width
- 70 mm
- USB connector type
- miniUSB type B
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
