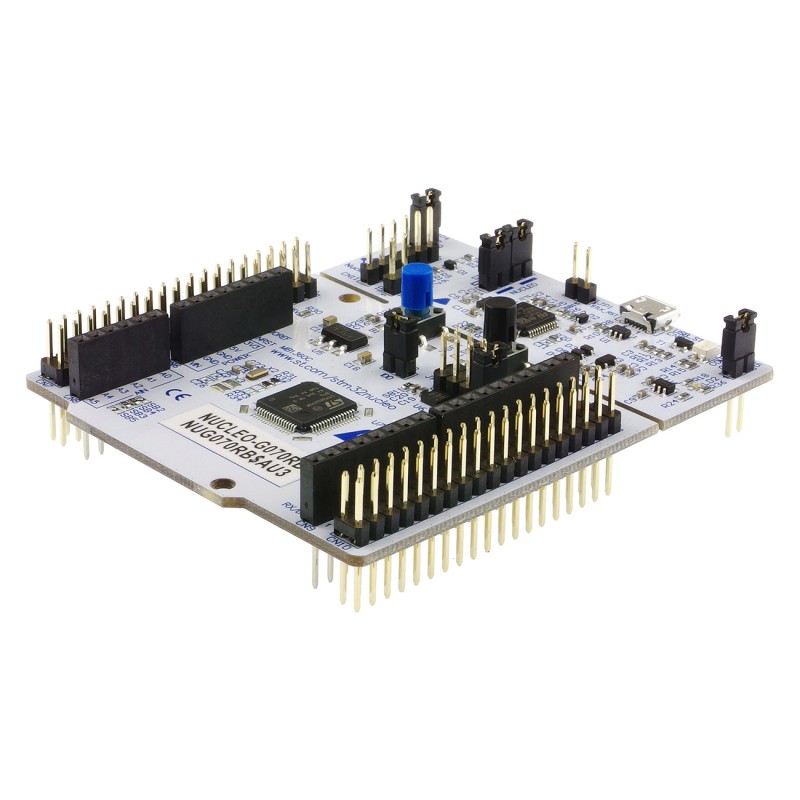

NUCLEO-G070RB - starter kit with STM32 microcontroller (STM32G070RB)
search
  • NUCLEO-G070RB - starter kit with STM32 microcontroller (STM32G070RB)
ID: 573439
5906623436286
zł60.81
Tax included

zł49.44 tax excl.

NUCLEO series starter kit equipped with STM32G070RB microcontroller (128 kB Flash, Cortex-M0 +), with built-in programmer-debugger ST-Link / v2, equipped with connectors compatible with Arduino. STMicroelectronics NUCLEO-G070RB

24h
Available
Available quantity: 14


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

The NUCLEO-G070RB set ( STM32 Nucleo-64 ) is equipped with the STM32G070RB microcontroller in the LQFP64 housing. The built-in programmer / debugger allows quick and easy programming and testing of the system. It can act as a stand-alone programmer, after disconnection via jumpers. Flexible power supply allows for convenient use of the development board in the tested application.

Two types of connectors: Arduino Uno V3 and ST morpho (all GPIO pins of the microcontroller) provide access to each of the microcontroller components and do not exclude the possibility of using shields compatible with Arduino for cooperation with STM32 Nucleo-64 .

properties

  • STM32G070RBT6 microcontroller in the LQFP64 housing
  • Switching power supplies reduce power consumption in Run mode
  • General purpose LED
  • General purpose button + RESET button
  • Quartz generator LSE: 32,768 kHz
  • Extension connectors:
    • Arduino Uno V3
    • ST Morpho
    • connector for experiments with impulse converters
  • Possibility of USB or external power supply (3.3 V, 5 V, 7 ... 12 V)
  • Integrated programmer / debugger ST-Link / V2-1 (SWD) with the possibility of using it to work with external systems
  • The USB interface can work in one of three modes:
    • Virtual COM serial port (Virtual COM)
    • Mass storage (Mass storage)
    • Debug port
  • Full compatibility with versatile HAL libraries containing many examples of the use of microcontroller peripherals and STMicroelectronics
  • Supported a wide range of development software such as: IAR, Keil, GCC-based IDEs
573439

Data sheet

Microcontroller
STM32G070RBT6
Flash memory
128kB
Number of I/O
59
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
82,5 mm
Width
70 mm
USB connector type
miniUSB type B
