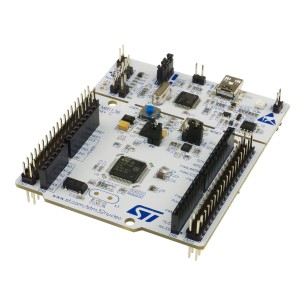

NUCLEO-G0B1RE - STM32 Nucleo-64 development board with STM32G0B1RE MCU
search
  • NUCLEO-G0B1RE - STM32 Nucleo-64 development board with STM32G0B1RE MCU
ID: 584254
5906623436491
zł58.98
Tax included

zł47.95 tax excl.

NUCLEO series starter kit equipped with a STM32G0B1RE microcontroller (512 kB Flash, Cortex-M0+), with a built-in programmer-debugger ST-Link/v2, equipped with connectors compatible with Arduino. STMicroelectronics NUCLEO-G0B1RE

24h
Available
Available quantity: 6


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

The NUCLEO-G0B1RE (STM32 Nucleo-64) set is equipped with the STM32G0B1RE microcontroller in the LQFP64 housing. Built-in programmer/debugger allows for quick and easy programming and testing of the system. It can work as a standalone programmer, when disconnected by jumpers. Flexible power supply allows for convenient use of the development board in the tested application.

Two types of connectors: Arduino Uno V3 and ST morpho (all GPIO pins of the microcontroller) provide access to each of the microcontroller components and do not exclude the possibility of using Arduino compatible shields for cooperation with STM32 Nucleo-64.

Features

  • STM32G0B1RE microcontroller in LQFP64 housing
  • General purpose LED
  • General purpose button + RESET button
  • LSE quartz generator: 32.768 kHz
  • Expansion Connectors:
    • Arduino Uno V3
    • ST Morpho
  • Possibility to power via USB or from an external power supply (3.3V, 5V, 7-12V)
  • Integrated ST-Link/V2-1 (SWD) programmer / debugger with the possibility of using it to work with external systems
  • The USB interface can work in one of three modes:
    • Virtual COM port (Virtual COM)
    • Mass storage
    • Debug port
  • Full compatibility with comprehensive HAL libraries containing many examples of the use of microcontroller peripherals and STMicroelectronics circuits
  • Supported a wide range of development software such as: IAR, Keil, GCC-based IDEs
584254

Data sheet

Microcontroller
STM32G0B1RE
Flash memory
512kB
Number of I/O
94
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
82,5 mm
Width
70 mm
USB connector type
USB type C
