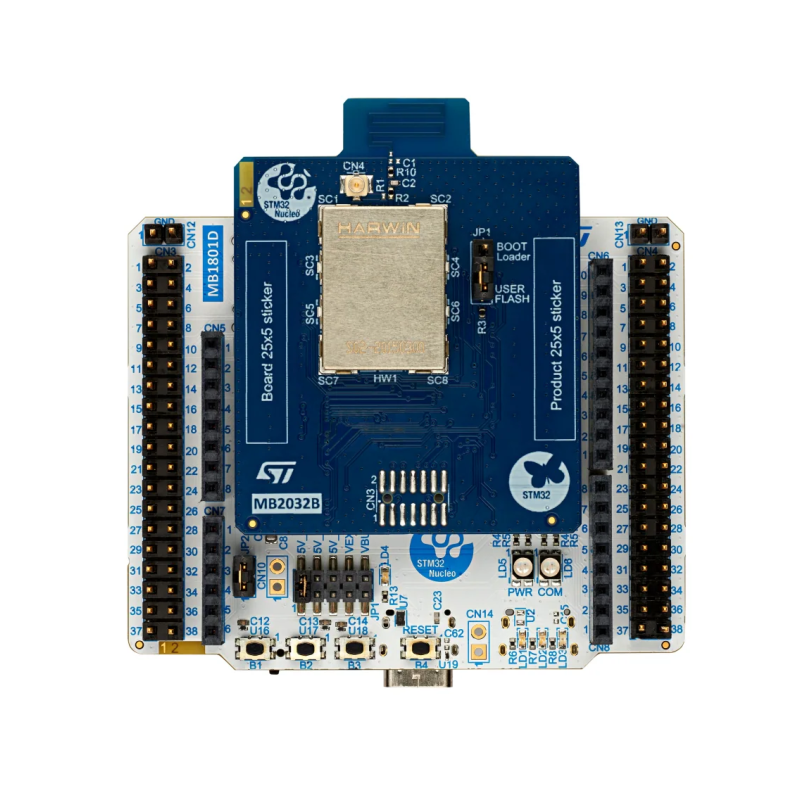

NUCLEO-WB05KZ – STM32 Nucleo-64 development board with STM32WB05KZ microcontroller, Bluetooth Low Energy, ARM Cortex-M0+
search
  • NUCLEO-WB05KZ – STM32 Nucleo-64 development board with STM32WB05KZ microcontroller, Bluetooth Low Energy, ARM Cortex-M0+
ID: 1199771
5902186308442
zł92.18
Tax included

zł74.94 tax excl.

NUCLEO-WB05KZ is a compact and low-power STM32 board for Bluetooth Low Energy applications, equipped with the STM32WB05KZ microcontroller. Ideal for BLE projects and IoT solutions with rapid prototyping and expansion via ARDUINO and ST morpho connectors.

24h
Available
Available quantity: 2

Description

The NUCLEO-WB05KZ development board based on the STM32WB05KZ microcontroller with an ARM Cortex-M0+ core enables the design of applications communicating wirelessly using Bluetooth Low Energy version 5.4. The microcontroller is equipped with 192 kB Flash memory and 24 kB SRAM housed in a VFQFPN32 package. The built-in 2.4 GHz transceiver and PCB antenna ensure connection stability and high energy efficiency, enabling the creation of low-power IoT solutions.

The board offers ARDUINO Uno V3 and ST morpho interfaces, which allow easy expansion with additional modules and full access to microcontroller pins. The integrated STLINK-V3EC programmer-debugger supports mass storage, virtual COM port, and debugging functions. Supported development environments include STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM. Optimized for simple and compact BLE applications, it enables the design of two-layer PCBs thanks to the high integration of RF components (balun and HSE capacitors).

Properties

  • Microcontroller: STM32WB05KZ, ARM Cortex-M0+
  • Flash memory: 192 kB
  • SRAM: 24 kB
  • Microcontroller package: VFQFPN32
  • Radio interface: Bluetooth Low Energy v5.4, 2.4 GHz
  • Integrated PCB antenna
  • Connectors: USB Type-C, ARDUINO Uno V3, ST morpho
  • Debugger: STLINK-V3EC (MSC, Virtual COM, debug port)
  • Power supply: via ST-LINK USB or external source
  • User elements: 3 LEDs, 3 user buttons, RESET button
  • Compatibility with STM32CubeWB0 package and software libraries
1199771

Data sheet

Microcontroller
STM32WB05KZ
Flash memory
192 kB
Number of I/O
20
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
Inny
Width
Inna
USB connector type
USB type C
