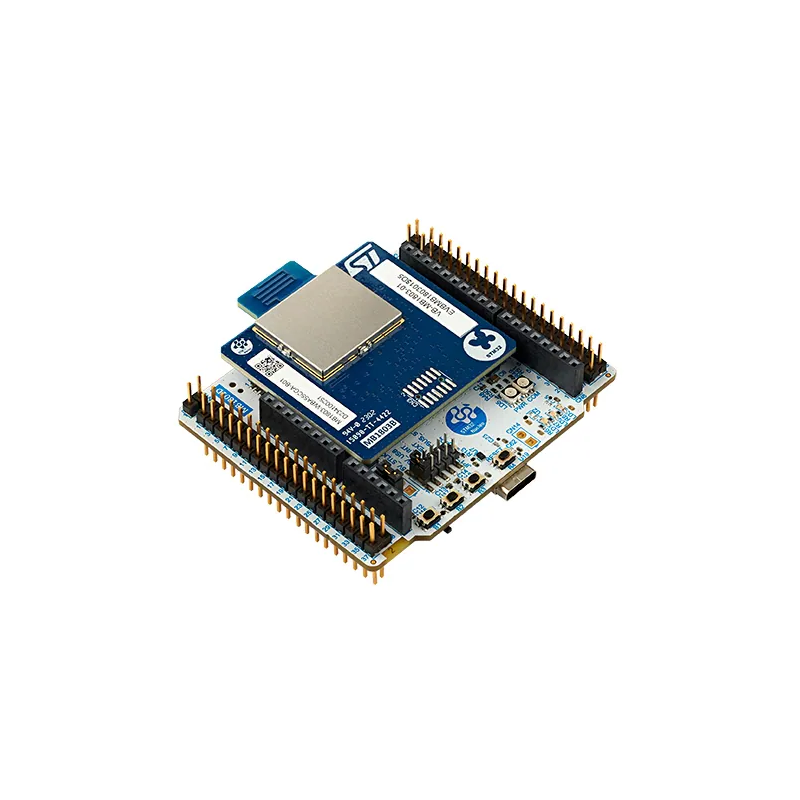

NUCLEO-WBA55CG – STM32 Nucleo-64 development board with STM32WBA55CG, Bluetooth LE, Thread, Zigbee, ARM Cortex-M33
ID: 1199769
5902186308428
zł295.48
Tax included
zł240.23 tax excl.
NUCLEO-WBA55CG is a low-power STM32 development board with Bluetooth LE, Thread, and Zigbee support, designed for IoT projects. ST morpho and ARDUINO Uno V3 connectors enable flexible expansion and rapid prototyping.
Description
The NUCLEO-WBA55CG development board equipped with the STM32WBA55CG microcontroller with ARM Cortex-M33 core enables the implementation of wireless applications based on Bluetooth Low Energy and the Thread and Zigbee protocols compliant with IEEE 802.15.4-2015. The microcontroller has 1 MB Flash memory and 128 kB SRAM and comes in a UFQFPN48 package. The board includes a 2.4 GHz transceiver with a built-in PCB antenna, an integrated STLINK-V3 programmer-debugger supporting MSC, Virtual COM, and debug port, as well as a USB Type-C interface. ST morpho and ARDUINO Uno V3 connectors provide full access to the microcontroller pins and allow expansion with additional modules. Support for STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM development environments. High integration of RF components allows the design of simple two-layer PCBs.
Properties
- Microcontroller: STM32WBA55CG, ARM Cortex-M33
- Flash memory: 1 MB
- SRAM: 128 kB
- Package: UFQFPN48
- Number of I/O pins: up to 20
- Radio interface: Bluetooth Low Energy v6.0, IEEE 802.15.4 (Thread, Matter, Zigbee)
- Integrated PCB antenna
- Connectors: USB Type-C, ARDUINO Uno V3, ST morpho
- Debugger: STLINK-V3 (MSC, Virtual COM, debug port)
- Power supply: via ST-LINK USB or external source
- User elements: 3 user buttons, 1 RESET button, 3 LEDs
1199769
Data sheet
- Microcontroller
- STM32WBA55CG
- Flash memory
- 1 MB
- Number of I/O
- 20
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- Yes
- MicroSD slot
- No
- Length
- Inny
- Width
- Inna
- USB connector type
- USB type C
