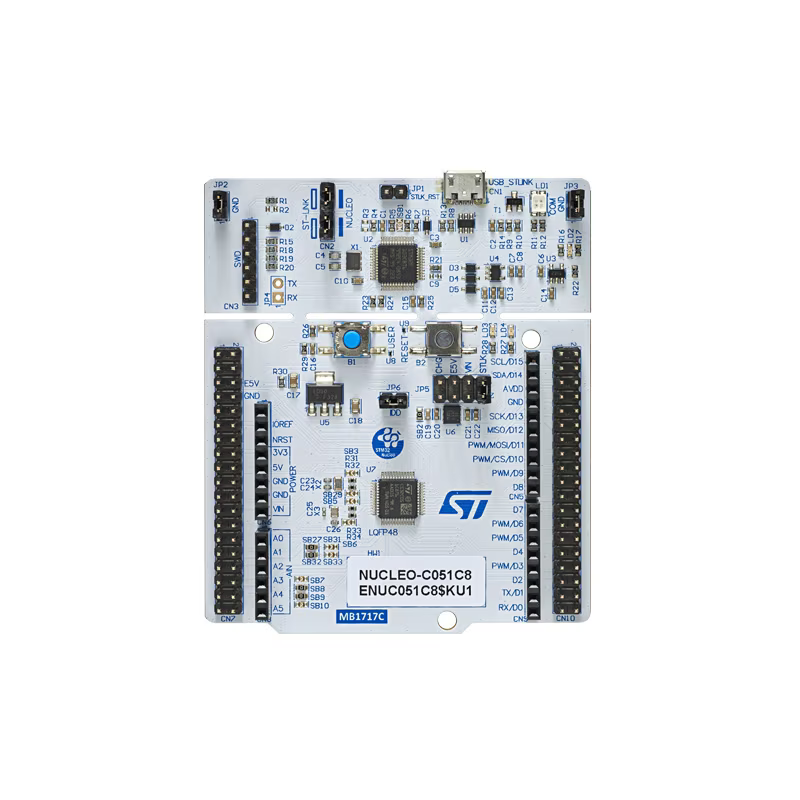

NUCLEO-C051C8 – STM32 Nucleo-64 development board with STM32C051C8 microcontroller, ARM Cortex-M0+
ID: 1199767
5902186308404
zł81.48
Tax included
zł66.24 tax excl.
NUCLEO-C051C8 is a compact STM32 board with the STM32C051C8 microcontroller in an LQFP48 package, designed for cost-effective embedded projects. It provides full access to I/O lines and expansion through ARDUINO and ST morpho connectors.
Description
The NUCLEO-C051C8 development board with the STM32C051C8 microcontroller enables rapid prototyping and testing of applications based on the ARM Cortex-M0+ core. The microcontroller, equipped with 64 kB Flash memory and 8 kB SRAM, is housed in an LQFP48 package and provides up to 37 I/O lines. The board features an integrated ST-LINK programmer-debugger, a 32.768 kHz oscillator, a user button, a RESET button, and an LED shared with the ARDUINO interface. ARDUINO Uno V3 and ST morpho connectors provide full access to the microcontroller pins and allow project expansion. Power supply can be provided via USB port or an external source. Supported development environments include STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM.
Properties
- Microcontroller: STM32C051C8, ARM Cortex-M0+
- Flash memory: 64 kB
- SRAM: 8 kB
- Microcontroller package: LQFP48
- Number of I/O pins: up to 37
- Oscillator: 32.768 kHz
- LEDs and buttons: 1 LED (shared with Arduino), 1 user button, 1 RESET button
- Connectors: ARDUINO Uno V3, ST morpho, USB for ST-LINK
- Debugger: integrated ST-LINK
- Power supply: USB VBUS or external source
- Support: STM32Cube MCU Package, STM32CubeIDE, IAR Embedded Workbench, MDK-ARM
1199767
Data sheet
- Microcontroller
- STM32C051C8
- Flash memory
- 64kB
- Number of I/O
- 37
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- No
- Length
- Other
- Width
- Other
- USB connector type
- USB type C
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
