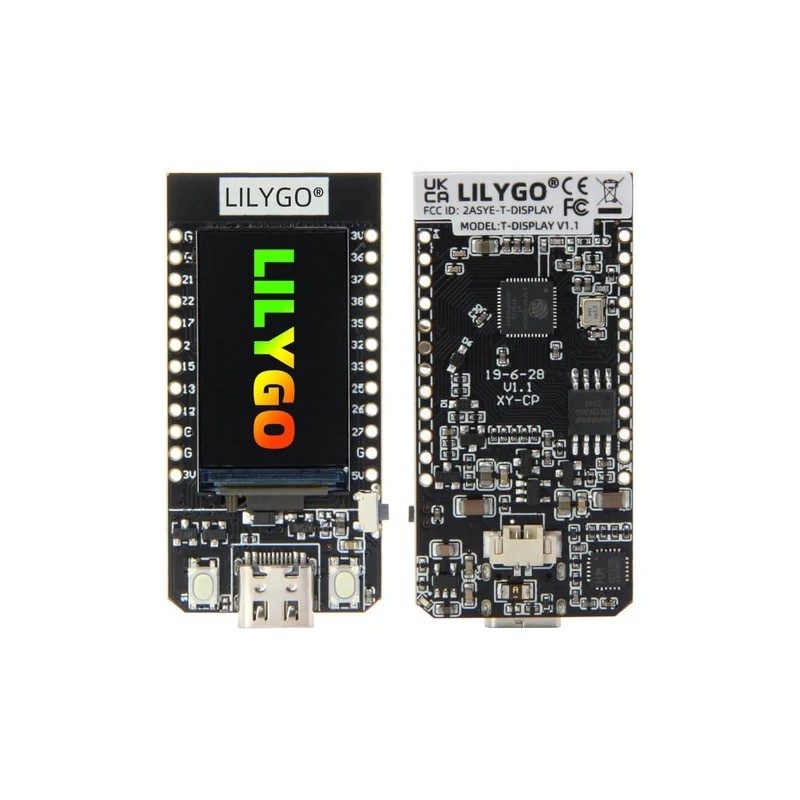

Development kit with ESP32 WiFi module and 1.14" display 16MB
ID: 1191475
5902186320161
zł69.90
Tax included
zł56.83 tax excl.
Development board with WiFi and Bluetooth ESP32 module. It is equipped with an IPS 1.14" LCD display, a USB-UART converter and a Li-Ion battery charging system. modESPttgo1.14"-16MB
Description
Development board with WiFi and Bluetooth ESP32 module, which has 16 MB Flash memory and 520 KB SRAM memory. Provides WiFi (802.11 b/g/n) and Bluetooth (Bluetooth v4.2 BR/EDR and BLE) connectivity. It is equipped with a 1.14" IPS LCD display, a USB-UART converter and a Li-Ion battery charging system with a connector. ESP32 pins are led out to goldpin connectors with a pitch of 2.54 mm. The module is powered and programmed via a USB type C connector It will be used in IoT projects and in projects of "wearable" devices.
Features
- Equipped with the ESP32 WiFi module by Espressif
- Working frequency: 240 MHz
- Built-in 520 KB SRAM
- Built-in WiFi 802.11 b/g/n
- Built-in Bluetooth module (classic and BLE)
- 16 MB FLASH memory
- Built-in antenna
- Hall sensor
- Support for touch buttons (max 10)
- 32kHz crystal oscillator
- 3 UART (2 configured by default, 1 for debugging)
- 3 SPI (one configured by default)
- 12 ADC inputs
- 2 I2S Audio
- 2 DACs
- Each GPIO pin has the ability to generate a PWM signal
- IPS LCD 1.14", ST7789V
- 500 mA lithium battery charging circuit
- Battery connector
- USB-UART converter
- Power supply: USB type C connector, 5V/1A
- Current consumption: 60 mA
- Dimensions: 51.52 x 25.04 x 8.54 mm
Kit contains
- TTGO ESP32 module with 1.14" display
- 2 x straight goldpin 12-pin connector
- Cable with connector for the battery
