Board with the WiFi Espressif ESP32-S2 module. Offers 4MB Flash and 8MB SRAM. Leads are compatible with HAT modules for Raspberry Pi Pico. Waveshare 21178

24h
Available
Available quantity: 9
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Board with WiFi Espressif ESP32-S2 module equipped with 4 MB Flash memory, 8 MB external PSRAM memory and integrated WiFi 802.11 b/g/n transceiver. The board has a 3.3 V converter with a current efficiency of up to 1.8 A, user LED and a ceramic WiFi antenna. The user has analog inputs and I2C, UART and SPI interfaces at their disposal on 26 GPIO pins. The layout of the pins and the raster is compatible with HAT modules dedicated to the Raspberry Pi Pico, thanks to which the user can use a wide range of available extension modules. The programming board uses a USB type C connector.

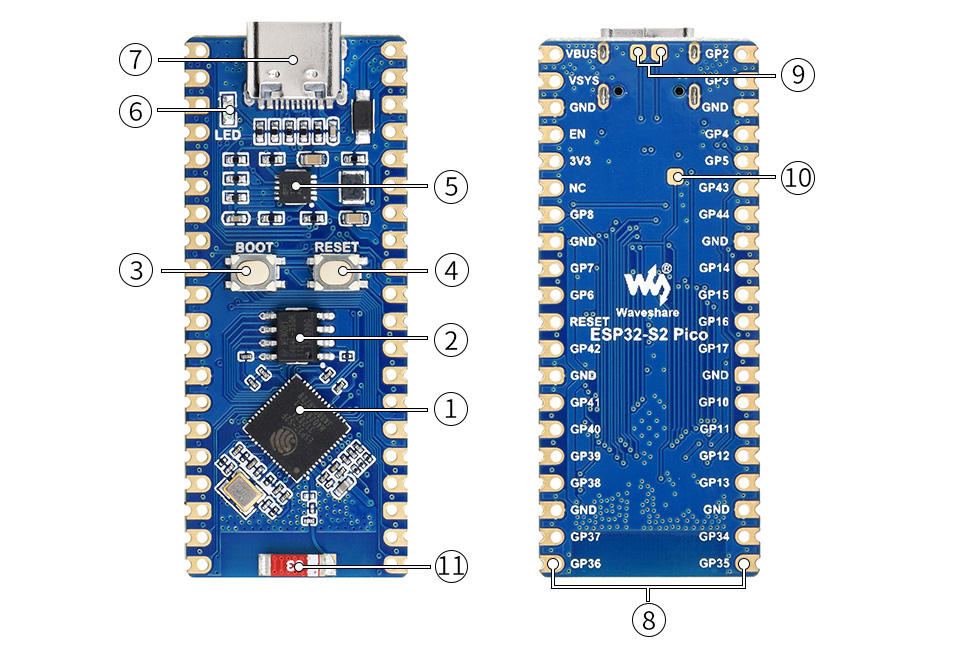

1. ESP32-S2FH4 7. USB type C connector
2. APS6404L-3SQR-SN 8MB PSRAM 8. Pinout
3. BOOT button 9. USB test pads
4. RESET button 10. BOOT test pad
5. DC-DC Converter 3,3V TPS63000DRCR 11. WiFi antenna
6. User LED

Thanks to the hardware cryptographic accelerator, RNG, HMAC and the digital signature module, the board offers great potential in the field of IoT systems. It can also be programmed using the Arduino IDE, ESP-IDF or CircuitPython. Full documentation is available on the product page.

Features

  • 240MHz 32-bit single-core processor
  • 4 MB SPI Flash Memory
  • 8 MB of additional PSRAM
  • 2.4 GHz Wi-Fi - 802.11b/g/n
  • Ceramic antenna
  • DC-DC converter 3.3 V 1.8 A
  • Optimized power system ensuring low energy consumption
  • Power supply: USB type C
  • User LED
  • 26 GPIO pins including ADC, UART, SPI, I2C
  • The pinout is compatible with Raspberry Pi Pico HAT modules
  • Dimensions: 51 x 21 mm
