Development board with ESP32-S3, featuring a 4.3-inch IPS display 800 x 480 with 5-point capacitive touch, audio codec with dual microphones, and support for 2.4 GHz Wi-Fi and BLE 5. Designed for HMI systems, IoT projects, and voice interface applications. Standard version without case. Waveshare ESP32-S3-Touch-LCD-4.3C

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3-Touch-LCD-4.3C in the standard version without case integrates the ESP32-S3 microcontroller with a 4.3-inch capacitive IPS display with 800 x 480 resolution and an onboard audio module supporting sound recording and playback. The design combines display, touch, and voice interaction, enabling development of advanced HMI terminals, control panels, and AI-enabled IoT devices.

The dual-core Xtensa LX7 processor operating up to 240 MHz provides high computing performance. The board includes 16 MB Flash and 8 MB PSRAM, enabling support for advanced graphical interfaces, including those based on LVGL. Wireless connectivity includes 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE with onboard antenna.

p1203494-ESP32-S3-Touch-LCD-4.3C-details-5.jpgp1203494-ESP32-S3-Touch-LCD-4.3C-details-7.jpg

The IPS display provides a 160° wide viewing angle and supports 5-point capacitive touch via I2C interface with interrupt capability. The ES8311 audio codec together with the ES7210 echo cancellation circuit and two microphones enables implementation of voice control and bidirectional audio communication.

The board provides industrial-grade interfaces, including optocoupler-isolated digital inputs and outputs. Digital inputs support 5 - 36 V signals in passive and active modes (NPN/PNP). Open-drain digital outputs allow control of loads up to 450 mA per channel. Power supply range is 7 - 36 V DC, and the onboard voltage regulator together with the RTC circuit and CR927 battery holder maintains time settings during power loss.

Available onboard interfaces include USB Type-C, TF card slot, 3.7 V lithium battery connector (MX1.25 2PIN), screw terminals, I2C interface, and selectable 5 V or 3.3 V VOUT configured by onboard resistor. The design supports integration in embedded systems and industrial installations.


  1. ESP32-S3-WROOM-1-N16R8 - SoC with Wi-Fi and Bluetooth, operating frequency up to 240 MHz, integrated 8 MB PSRAM and 16 MB Flash
  2. TF card slot
  3. USB Type-C port
  4. BOOT button - Press and hold while powering on to enter programming mode
  5. RESET button
  6. Optocoupler isolation
  7. Touch panel connector
  8. 4.3 inch display panel connector
  9. Speaker header - MX1.25 2PIN
  10. Battery power supply ON/OFF switch
  11. 3.7 V single-cell lithium battery MX1.25 connector
  12. Status indicators - DONE: lithium battery charge complete indicator; CHG: lithium battery charging indicator; PWR: power supply indicator; CHG blinks and DONE lights up when powered by DC supply without lithium battery connected or when the battery switch is OFF
  13. 7 - 36 V DC power supply terminal

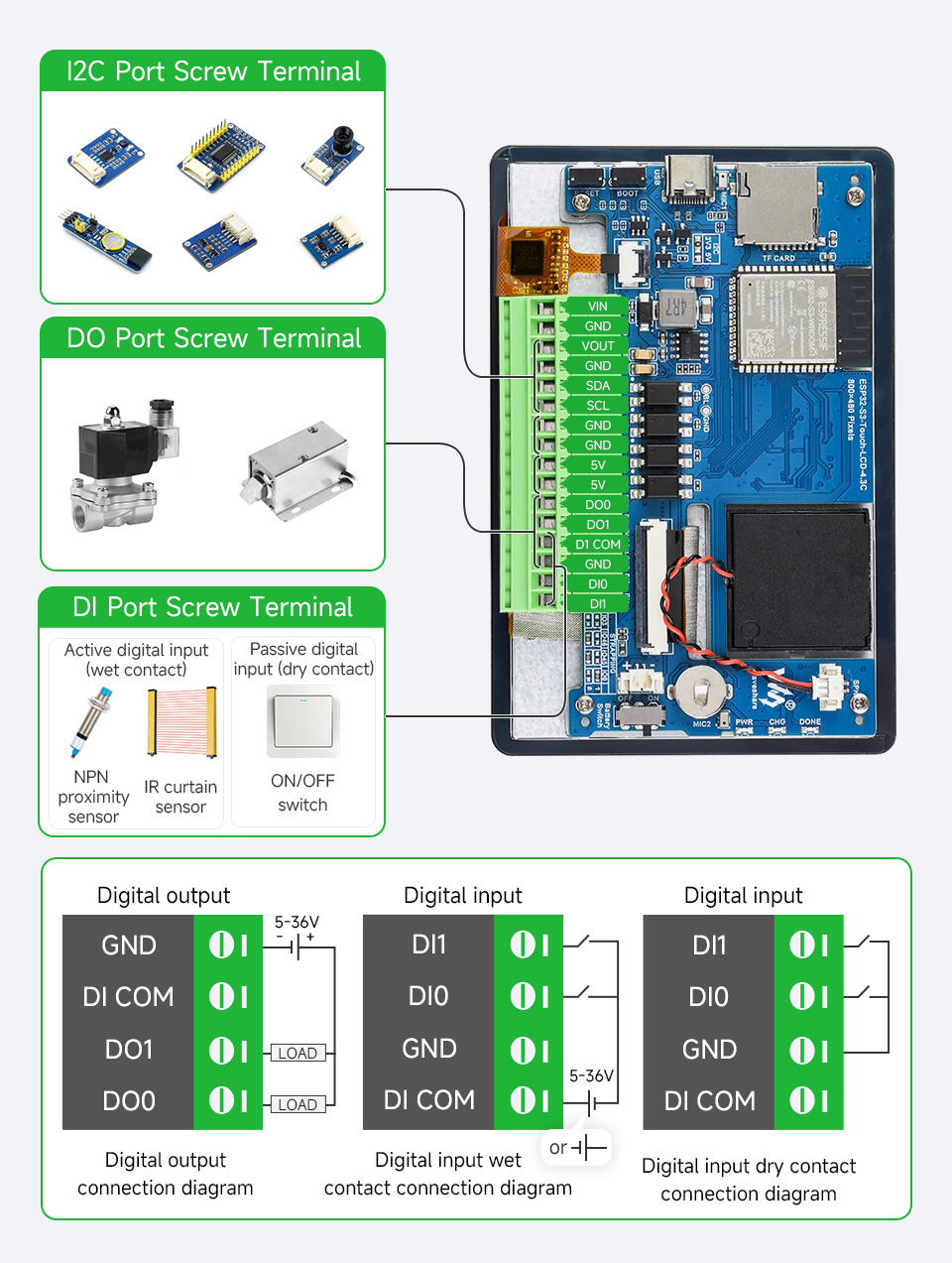

  14. I2C port screw terminal - VOUT output 5 V / 3.3 V selectable by onboard resistor
  15. 5 V output screw terminal
  16. Digital output - 5 - 36 V, open-drain type, load up to 450 mA per channel (max.)
  17. Input signal common terminal - NC: dry contact passive input; connection to positive supply: digital input active low for NPN wet contact input, 5 - 36 V DC; connection to negative supply: digital input active high for PNP wet contact input, 5 - 36 V DC
  18. Digital input - 5 - 36 V, supports passive and active input NPN or PNP
  19. RTC battery holder - CR927
  20. Microphones

Features

  • Microcontroller: ESP32-S3-WROOM-1-N16R8, Xtensa LX7 dual-core up to 240 MHz
  • Wireless connectivity: 2.4 GHz Wi-Fi 802.11 b/g/n, Bluetooth 5 LE
  • SRAM: 512 kB
  • ROM: 384 kB
  • Flash memory: 16 MB
  • PSRAM: 8 MB
  • Display: 4.3 inch IPS
  • Resolution: 800 x 480
  • Color depth: 65K
  • Viewing angle: 160°
  • Touch panel: Capacitive, 5-point, I2C interface
  • Audio codec: ES8311
  • Echo cancellation circuit: ES7210
  • Microphones: 2 pcs
  • Power supply: 7 - 36 V DC
  • VOUT output voltage: 5 V or 3.3 V
  • Digital inputs: 5 - 36 V, NPN/PNP support, optocoupler isolation
  • Digital outputs: 5 - 36 V, open-drain, up to 450 mA per channel
  • RTC: Circuit with CR927 battery holder
  • Interfaces: USB Type-C, I2C, TF card slot, 16PIN screw terminals
  • Operating temperature: not specified by manufacturer

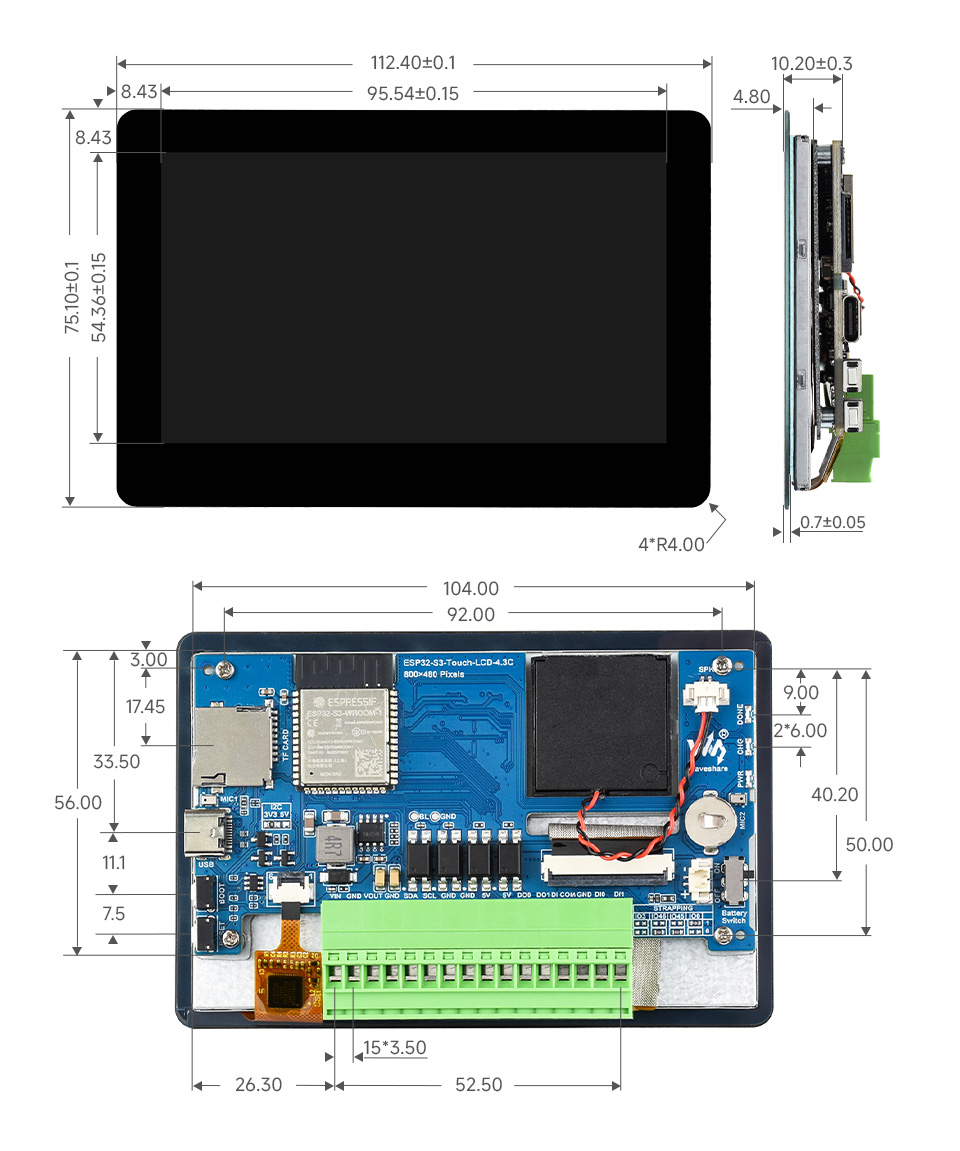

  • Dimensions: not specified by manufacturer
  • Weight: 0.153 kg

Kit includes

  • ESP32-S3-Touch-LCD-4.3C x1
  • 16PIN screw terminal for bottom wiring x1
