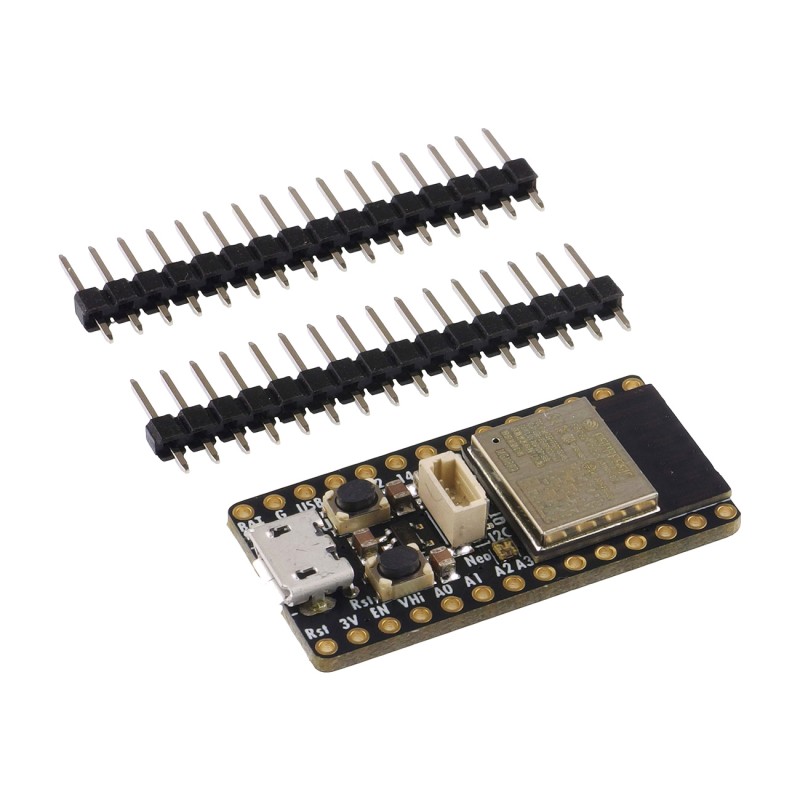

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Top view (horizontal)
ID: 1203845
5902186335288
zł81.50
Tax included

zł66.26 tax excl.

The ESP32-PICO-MINI-02 development board features a dual-core 240 MHz Xtensa processor, 8 MB of Flash, and 2 MB of PSRAM. It offers 2.4 GHz WiFi, Classic Bluetooth, and BLE connectivity, making it ideal for IoT projects. It features 20 GPIOs, 12-bit ADC, DAC, and PWM inputs, as well as SPI, I2C (STEMMA QT), I2S, and UART interfaces. It also includes a built-in NeoPixel RGB LED. It features low power consumption (approximately 10 µA in deep sleep), USB or 6V battery power, and compatibility with the Arduino IDE, CircuitPython, and MicroPython. Adafruit 5889

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

ItsyBitsy ESP32 is an extremely compact yet highly capable development board featuring the ESP32-PICO-MINI-02 module, equipped with 8 MB Flash memory and 2 MB PSRAM. The board is powered by a dual-core Tensilica Xtensa processor running up to 240 MHz, providing high computational performance while maintaining low power consumption. The module offers 2.4 GHz WiFi as well as Bluetooth Classic and BLE, making it an ideal choice for IoT projects. Thanks to 40 nm technology, the chip features very low energy consumption – in deep sleep mode, the current draw is approximately 10 µA.


The board includes a built-in USB–UART converter and a USB Micro B port for programming and debugging. Note that the ESP32 does not have native USB support – communication is handled via the USB–Serial converter. ItsyBitsy provides 20 GPIO pins, including 12-bit analog inputs, PWM outputs, DAC, and hardware interfaces SPI, I2C, I2S, and UART. The onboard RGB NeoPixel LED with power control allows creating lighting effects with minimal energy consumption. An additional red LED on pin D13 facilitates diagnostics. The STEMMA QT (I2C) connector allows quick connection of sensors and modules without soldering. The board can be powered via USB or an external battery (up to 6 V) with protection. Compatibility with Arduino IDE, CircuitPython, and MicroPython makes it a versatile tool for both beginners and advanced users.

Features

  • Microcontroller: ESP32 PICO ECO V3, dual-core 240 MHz Xtensa
  • Memory: 8 MB Flash, 2 MB PSRAM
  • Connectivity: 2.4 GHz WiFi, Bluetooth Classic, Bluetooth LE
  • PCB Antenna
  • 20 GPIO pins
  • 13 × 12-bit ADC
  • 2 × 8-bit DAC (A0, A1)
  • PWM on any pin
  • 8 Capacitive Touch inputs
  • Interfaces: I2C (including STEMMA QT), SPI, I2S, UART
  • Built-in USB–Serial converter (USB Micro B)
  • Built-in RGB NeoPixel with power control
  • LED on pin D13
  • D5 output at 5 V logic level
  • 3.3 V regulator (600 mA peak)
  • Current consumption: light sleep ~4 mA, deep sleep ~10 µA
  • Reset button and user button (pin 35)
  • Battery power up to 6 V (with protection)
  • Dimensions: 36 × 17.6 × 6.9 mm

Kit contains

  • Adafruit ItsyBitsy ESP32 board with PCB antenna
  • Connector set
