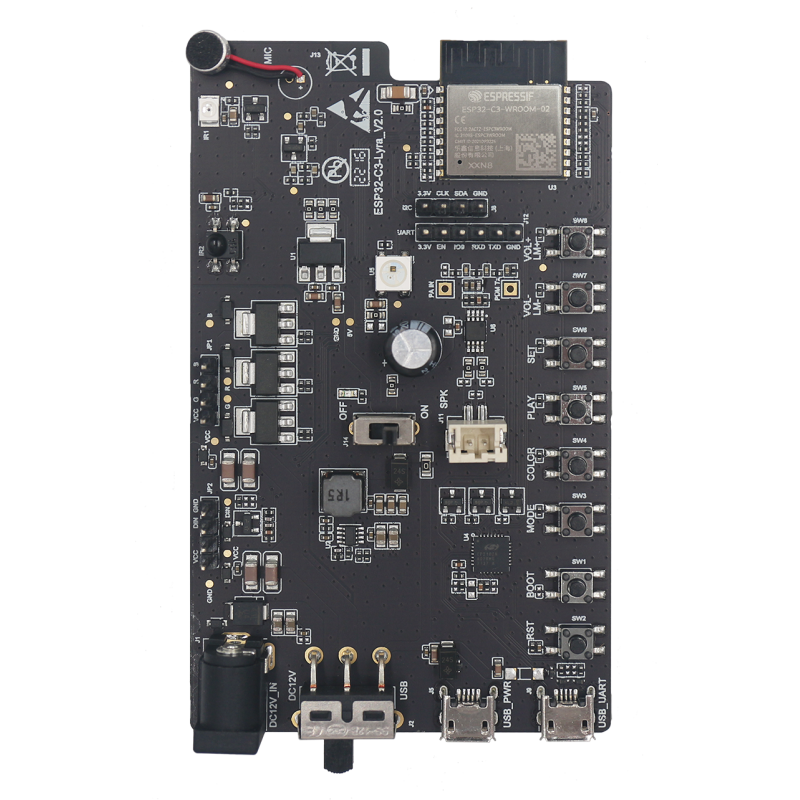

Development kit based on the ESP32-C3-WROOM-02 module featuring a RISC-V processor, WiFi and Bluetooth LE connectivity, as well as advanced audio and LED lighting control capabilities. The board integrates an ECM microphone, a 3 W audio amplifier, an IR interface, a programmable RGB LED, and connectors for WS2811, WS2812, and RGB LED strips. Suitable for IoT, automation, audio, and smart lighting projects. Espressif Systems ESP32-C3-Lyra

4 weeks
Awaiting delivery

Description

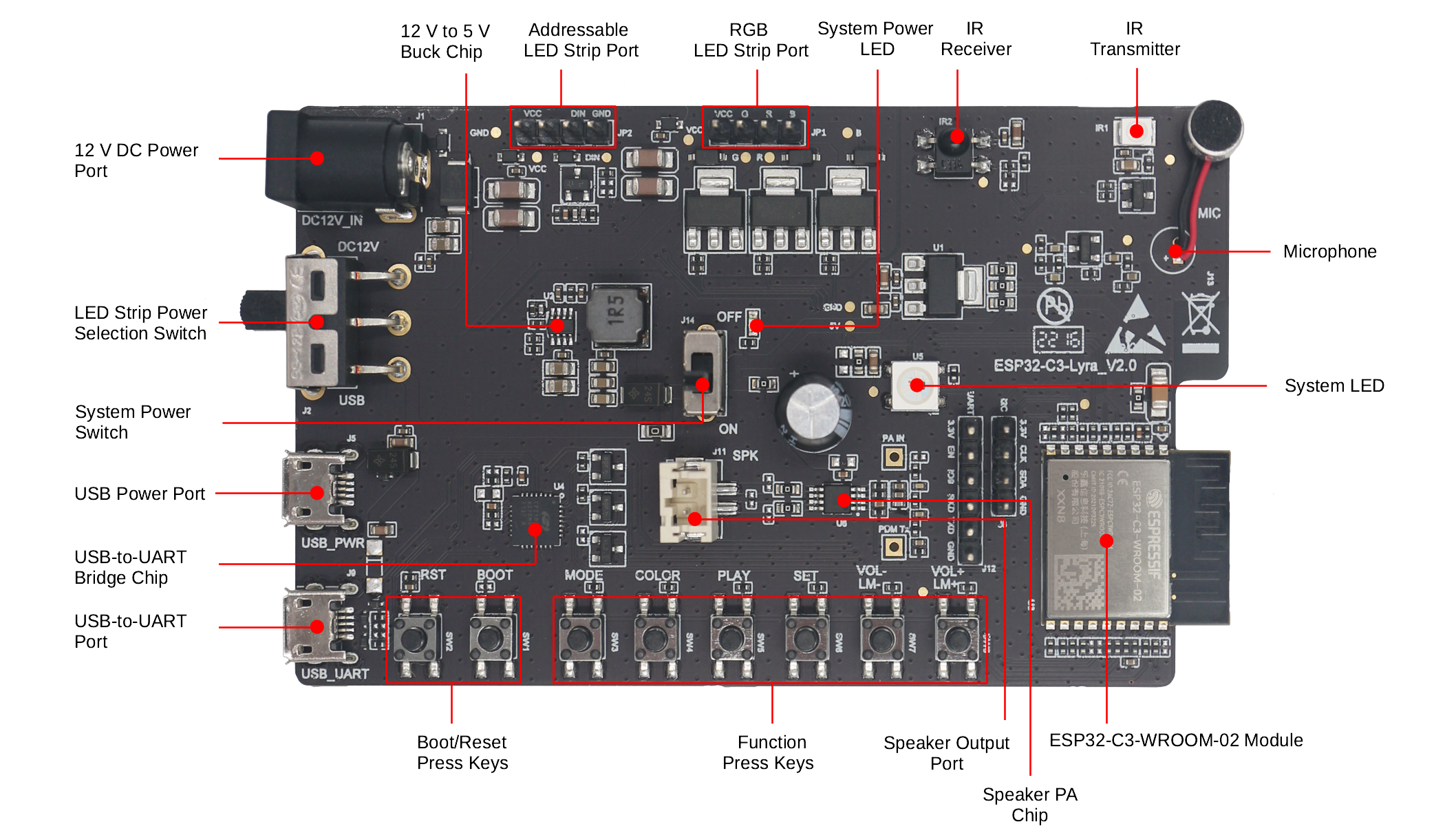

ESP32-C3-Lyra is based on the ESP32-C3-WROOM-02 module featuring a 32-bit single-core RISC-V processor running at up to 160 MHz, 4 MB of Flash memory, and integrated WiFi 2.4 GHz and Bluetooth LE connectivity. The board is designed for audio and LED lighting applications, integrating an ECM microphone, a 3 W NS4150 Class-D audio amplifier, a speaker connector, and a programmable WS2812C RGB LED. The board also includes dedicated function buttons for developing user interfaces for multimedia and lighting control applications.


The kit supports both addressable LED strips, including WS2811 and WS2812 models, as well as conventional PWM-controlled RGB LED strips. Additional features include infrared transmission and reception, a CP2102N USB-to-UART interface, and power supply options via a 5 V USB connection or an external 12 V DC / 2 A source. Its rich set of peripherals makes the board suitable for smart lighting systems, audio devices, sound-reactive lighting effects, automation projects, and IoT applications.

Detailed technical documentation, schematics, and development resources are available here.

Features

  • ESP32-C3-WROOM-02 module
  • 32-bit RISC-V processor, up to 160 MHz
  • 4 MB SPI Flash memory
  • WiFi 2.4 GHz connectivity
  • Bluetooth Low Energy (BLE) connectivity
  • Built-in ECM microphone
  • 3 W NS4150 Class-D audio amplifier
  • Speaker connector
  • Support for WS2811 and WS2812 addressable LED strips
  • Support for PWM-controlled RGB LED strips
  • Programmable WS2812C RGB LED
  • IR transmitter and receiver
  • CP2102N USB-to-UART bridge
  • 6 function buttons
  • Boot and Reset buttons
  • 5 V USB power supply
  • 12 V DC / 2 A power supply support
  • Integrated PCB antenna
