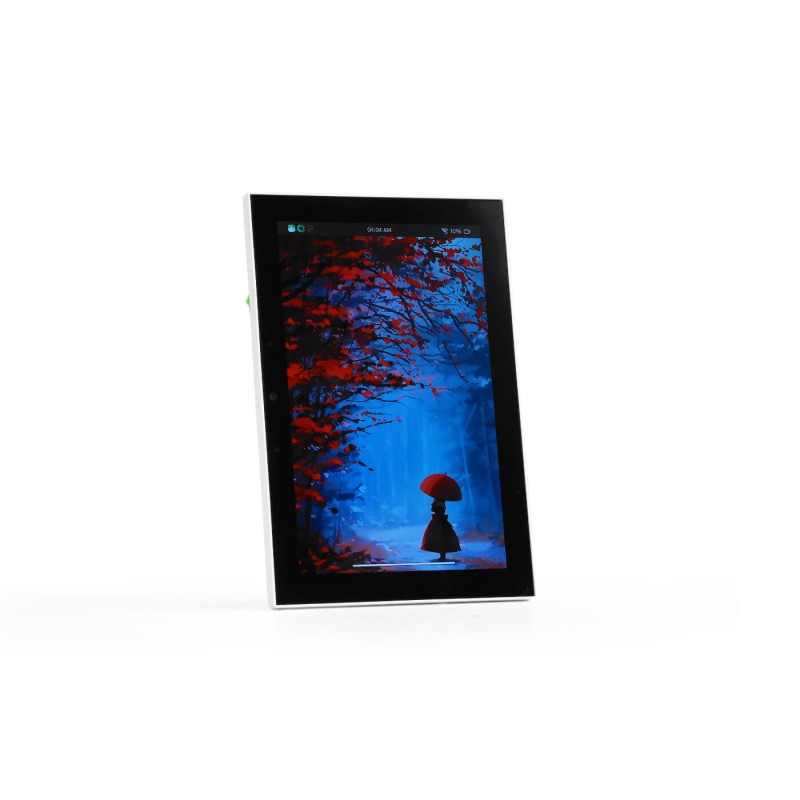

reTerminal D1001 - HMI module with 8" LCD display and ESP32-P4 - Seeed Studio 100058144
ID: 1205301
zł422.58
Tax included
zł343.56 tax excl.
An HMI device with an 8-inch 800x1280 touchscreen, designed for building modern user interfaces and IoT systems. Equipped with a dual-core ESP32-P4 processor and 32MB of PSRAM, it delivers high performance for graphics and data processing applications. The ESP32-C6 module supports Wi-Fi 6, Bluetooth 5 LE, and Zigbee, Thread, and Matter protocols, while optional LTE over mPCIe expands communication capabilities. A built-in camera, microphones, speaker, and 2500mAh battery make it a complete platform for applications such as monitoring, control, and edge computing. Seeed Studio 100058144
Description
reTerminal D1001 is a modern HMI (Human-Machine Interface) device that combines performance, wireless communication, and rich multimedia capabilities in a single compact platform. Equipped with an 8-inch touch LCD display with a resolution of 800×1280, it enables the creation of clear and responsive user interfaces, ideal for control panels, dashboards, and IoT systems. At its core is the ESP32-P4 with a dual-core RISC-V architecture and 32 MB of PSRAM, ensuring high performance in graphical applications and real-time data processing. Wireless communication is handled by an additional ESP32-C6 chip, offering Wi-Fi 6, Bluetooth 5 Low Energy, and support for 802.15.4 protocols (Zigbee, Thread, Matter). This makes the device well-suited for modern IoT systems, enabling integration with multiple communication standards. A built-in mPCIe slot allows expansion with 4G LTE connectivity, making the platform ideal for field applications and systems requiring constant network access.
The device also offers advanced capabilities for image and audio processing. The integrated MIPI-CSI camera with SC2356 sensor enables image capture at resolutions up to 1600×1200 at 30 fps, supporting machine vision applications. The audio system includes dual microphones and a 2W speaker, supported by ES8311 and ES7210 chips, enabling voice control and audio-based projects. The platform is designed as a complete deployment solution, featuring a built-in 2500 mAh battery and USB Type-C power supply. Support for MicroSD cards and 32 MB Flash memory provides storage for data and applications. Additional components such as the LSM6DS3TR motion sensor and PCF8563T RTC further enhance functionality in mobile and automation applications.
With its combination of powerful processing, modern connectivity, and a wide range of interfaces, reTerminal D1001 is an ideal solution for projects such as smart control panels, voice assistants, monitoring systems, IoT terminals, and edge computing applications. It is a versatile platform for developers looking for a ready-to-use solution to build modern user interfaces.
Features
- Processor: ESP32-P4NRW32 (32-bit RISC-V, dual-core)
- PSRAM: 32 MB
- Communication chip: ESP32-C6
- Flash memory: 32 MB QSPI
- Memory card support: MicroSD
- Display: 8” LCD
- Resolution: 800×1280
- Brightness: 250 cd/m²
- Viewing angles: full
- Display interface: MIPI-DSI
- Display controller: 9365DA-H3
- Touch type: capacitive
- Touch controller: GSL3670
- Orientation: portrait and landscape support
- Camera: SC2356
- Sensor resolution: 1608×1208
- Max frame rate: 1600×1200 @ 30 fps (10-bit)
- Camera interface: MIPI-CSI
- Microphones: dual microphones
- Speaker: 2W @ 8Ω (NS4150B)
- Audio codec: ES8311
- Audio ADC: ES7210
- Wi-Fi: Wi-Fi 6 (2.4 GHz)
- Bluetooth: Bluetooth 5 (LE)
- Cellular connectivity: Mini-PCIe (optional 4G)
- Antennas: built-in and external
- Battery: 2500 mAh
- Power supply: USB Type-C 5V
- RTC: PCF8563T (wake-up support)
- Motion sensor: LSM6DS3TR (6-axis)
- Dimensions: 200 × 136 × 25 mm
