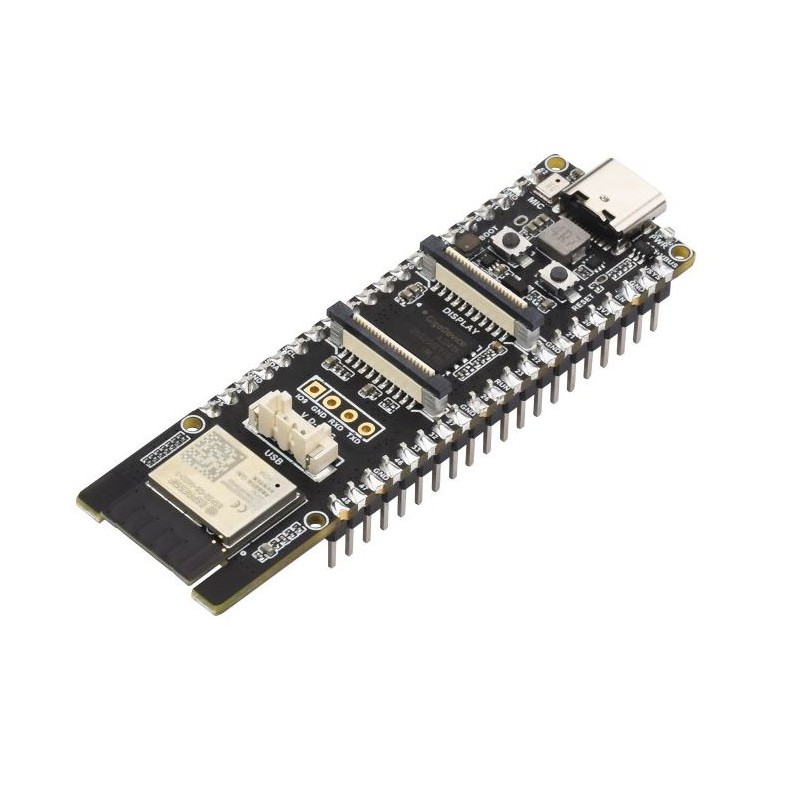

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Angled view – board underside
  • Angled view – front side of the board
ID: 1203373
zł74.27
Tax included

zł60.38 tax excl.

High-performance development board based on ESP32-P4 and ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 / BLE, designed for advanced multimedia, HMI and edge computing applications. Waveshare ESP32-P4-WIFI6-M

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

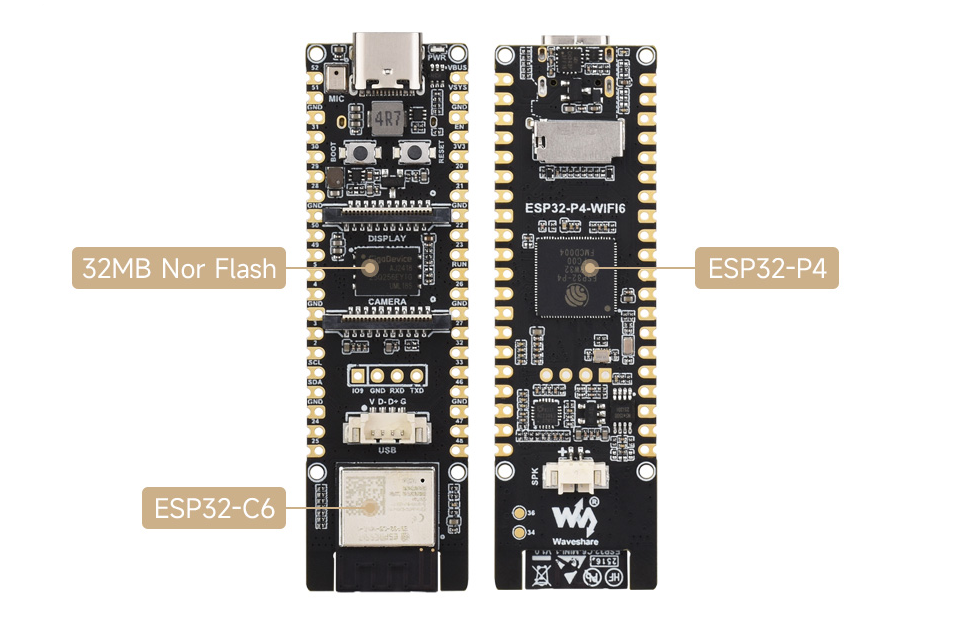

ESP32-P4-WIFI6 is a high-performance development board designed for projects requiring strong computing power, advanced multimedia interfaces and modern wireless connectivity. The board is built around a dual-core 32-bit RISC-V ESP32-P4 processor clocked up to 400 MHz, working together with an ESP32-C6 module that provides 2.4 GHz Wi-Fi 6 and Bluetooth 5 / BLE connectivity.


The board offers rich human-machine interface capabilities, including MIPI-DSI for displays and MIPI-CSI with integrated Image Signal Processor (ISP) for camera support. USB OTG 2.0 High Speed, a TF card slot using SDIO 3.0, and a 40-pin GPIO header ensure wide expandability and compatibility with additional modules and peripherals.

Integrated security features such as Secure Boot, Flash Encryption, hardware cryptographic accelerators and TRNG enable the board to be used in applications requiring a high level of data protection, system integrity and operational reliability.

p1203373-ESP32-P4-WIFI6-details-intro.jpgp1203373-ESP32-P4-WIFI6-details-interface.jpg

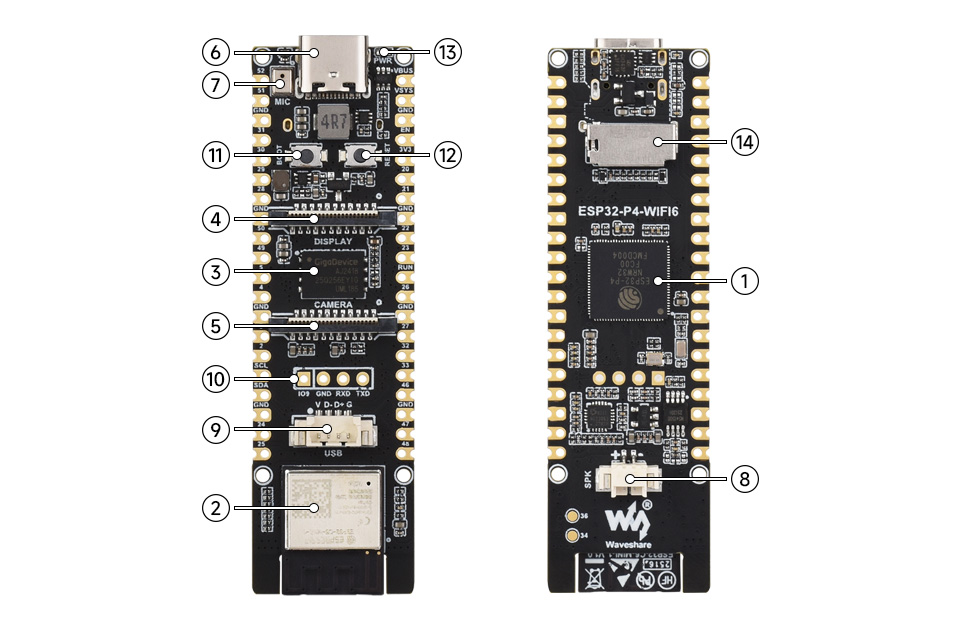

  1. ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
  2. ESP32-C6-MINI-1 - SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5
  3. 32MB Nor Flash
  4. Display interface - MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screen
  5. Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
  6. USB Type-C connector - for power supply, program burning and debugging
  7. Onboard microphone
  8. Speaker header - MX1.25 2P connector, supports 80 2W speaker
  9. 4PIN USB header - USB OTG 2.0 High Speed interface
  10. ESP32-C6 UART pads
  11. BOOT button - Press it when powering on or resetting to enter download mode
  12. RST button
  13. Power supply indicator
  14. TF card slot - SDIO 3.0 interface protocol

Features

  • Processor: ESP32-P4, 32-bit RISC-V, dual-core, up to 400 MHz
  • Wireless controller: ESP32-C6
  • Connectivity:
    • Wi-Fi 6 (2.4 GHz)
    • Bluetooth 5 / BLE
  • Memory:
    • 32 MB PSRAM (in-package)
    • 32 MB NOR Flash (onboard)
  • Multimedia support:
    • JPEG codec
    • Pixel Processing Accelerator
    • Image Signal Processor (ISP)
    • H.264 encoder
  • Interfaces:
    • MIPI-DSI (2-lane) – 5″ / 7″ / 8″ / 10.1″ displays
    • MIPI-CSI (2-lane) – cameras (e.g. OV5647)
    • USB OTG 2.0 High Speed
    • SDIO 3.0 (TF card)
    • SPI, I2S, I2C, UART, ADC, PWM, MCPWM, RMT, TWAI

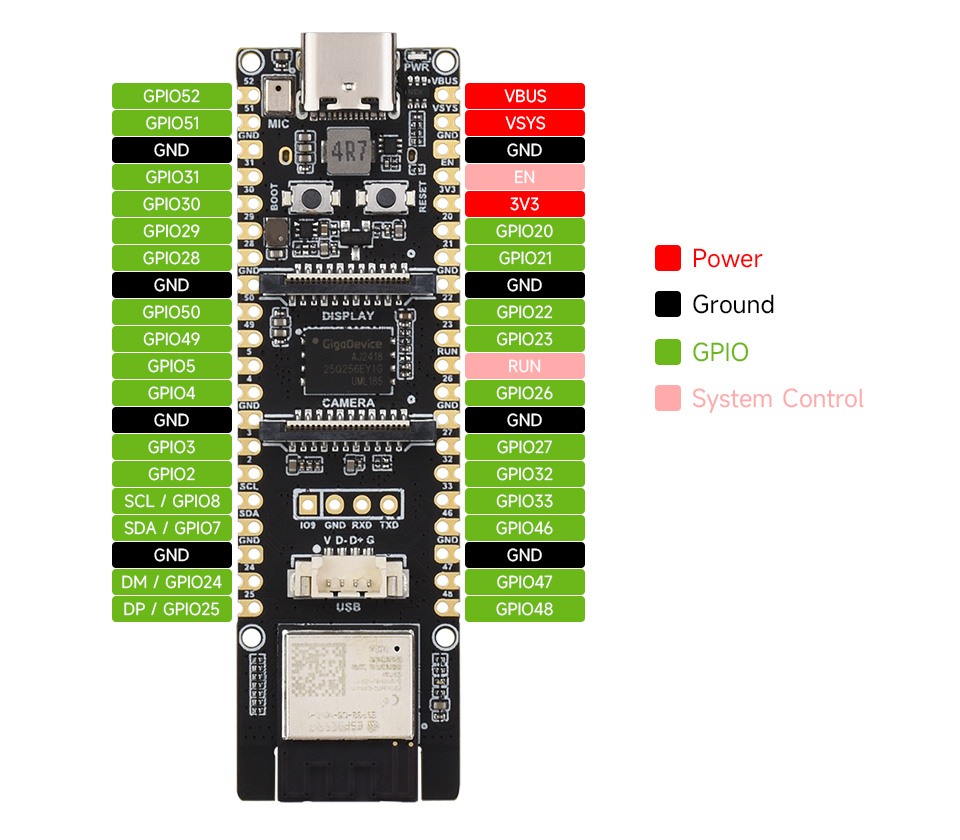

  • GPIO:
    • 2×20-pin header
    • 27 programmable GPIOs
  • Security:
    • Secure Boot
    • Flash Encryption
    • Hardware cryptographic accelerators
    • TRNG
    • Access control and privilege separation mechanisms
  • Onboard features:
    • Microphone
    • Speaker connector (MX1.25, 8 Ω / 2 W)
    • BOOT and RESET buttons
    • Power indicator LED
  • Power & programming: USB Type-C
  • Applications:
    • HMI and touch-based interfaces
    • Image and video processing
    • AI speech interaction and voice control
    • Edge computing
    • Advanced IoT systems
    • Multimedia system prototyping

Kit includes

  • 1× ESP32-P4-WIFI6 development board with pre-soldered pin headers
