ESP32-S3 development board with 7" IPS LCD display WiFi Bluetooth - Waveshare 31727
ID: 1203963
zł158.99
Tax included
zł129.26 tax excl.
Development board with ESP32-S3, featuring a 7inch IPS 1024x600 display, 2.4GHz Wi-Fi and Bluetooth, CAN, RS485, I2C and USB-C interfaces, LVGL support. Waveshare ESP32-S3-LCD-7B
Description

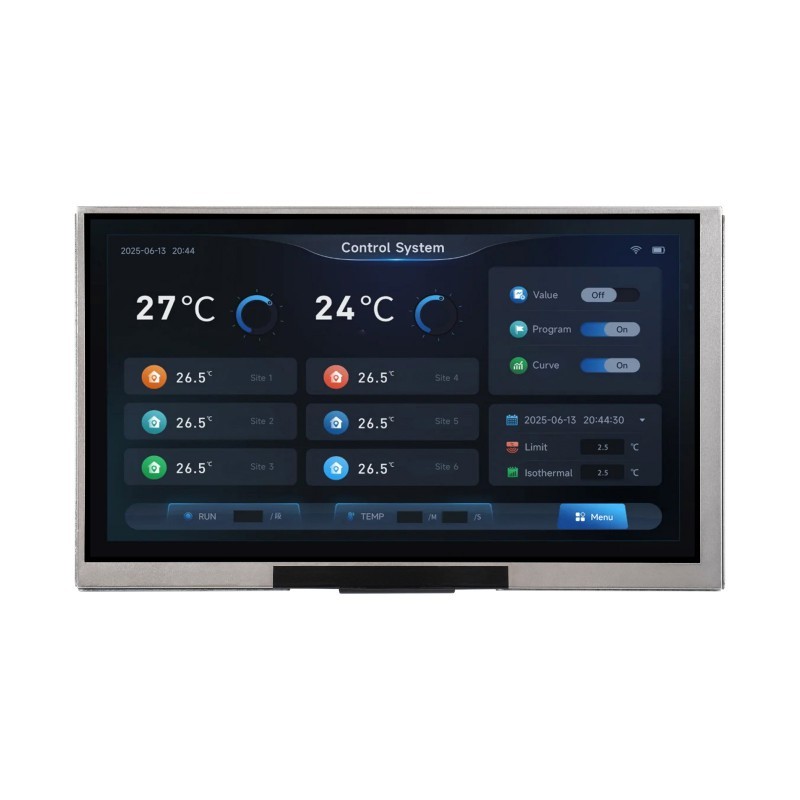

ESP32-S3 LCD 7B development board uses the ESP32-S3-WROOM-1-N16R8 module, enabling implementation of advanced IoT projects and HMI systems. The design includes a 7 inch IPS display with 1024 x 600 resolution, providing wide viewing angles and smooth operation of graphical interfaces such as LVGL-based applications.
The module supports 2.4 GHz Wi-Fi and Bluetooth 5 LE via the onboard antenna. The board features multiple communication interfaces including CAN, RS485, I2C and UART, enabling integration with automation systems, sensors and industrial devices.
Additional functions include backlight adjustment and battery voltage monitoring. Large Flash and PSRAM memory enable handling of advanced graphical and system applications.

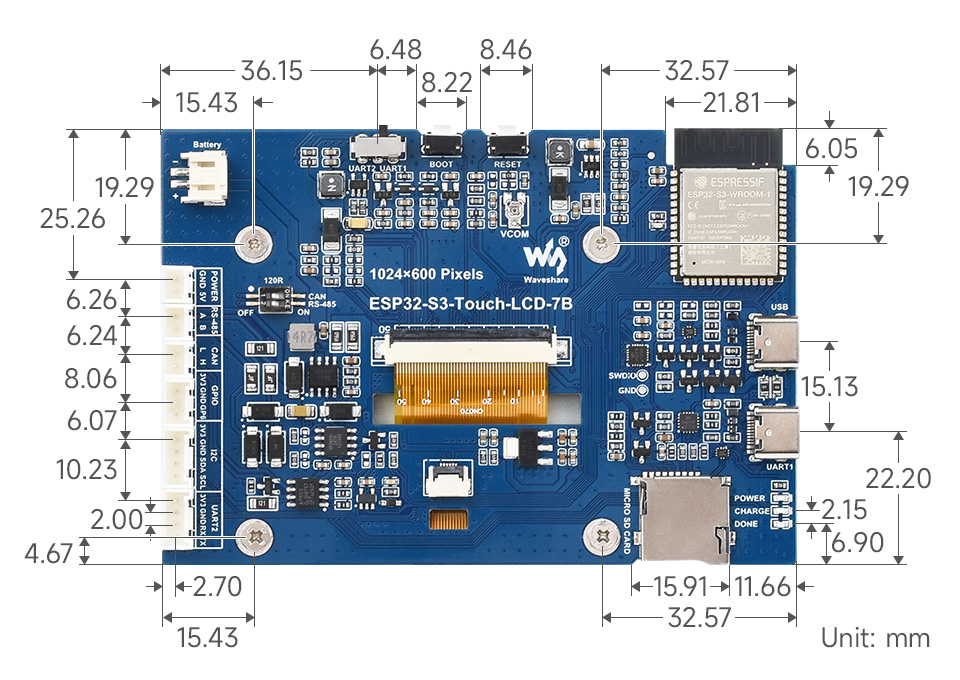

- ESP32-S3-WROOM-1-N16R8 module - The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
- Display panel connector
- Touch panel connector - (WITHOUT TOUCH VERSION)
- TF card slot
- USB Type-C port
- UART1 Port - USB TO UART Type-C port
- UART2 header - UART1 and UART2 are the same UART, selected by switch
- I2C header
- Sensor header
- CAN header
- RS485 header
- 5V output
- 3.7V Lithium battery PH2.0 header
- CAN terminal resistor selection
- RS485 terminal resistor selection
- UART selection - select UART1 or UART2
- BOOT button - Press and hold while powering on for program burning
- RESET button
- DONE - Lithium battery charging completed indicator
- CHARGE - Lithium battery charging indicator
- POWER - Power supply indicator
Features

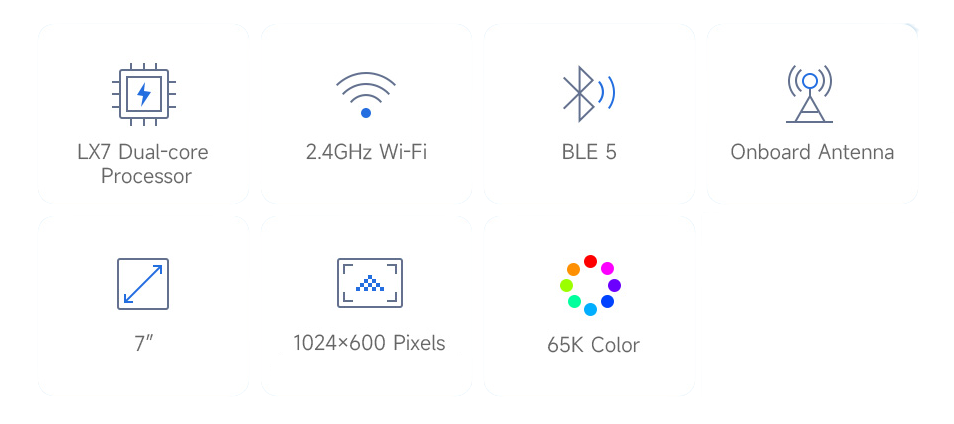

- Microcontroller: ESP32-S3-WROOM-1-N16R8
- Core: Xtensa LX7 dual-core
- Operating frequency: up to 240 MHz
- SRAM: 512 kB
- ROM: 384 kB
- Flash memory: 16 MB
- PSRAM: 8 MB
- Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5 LE

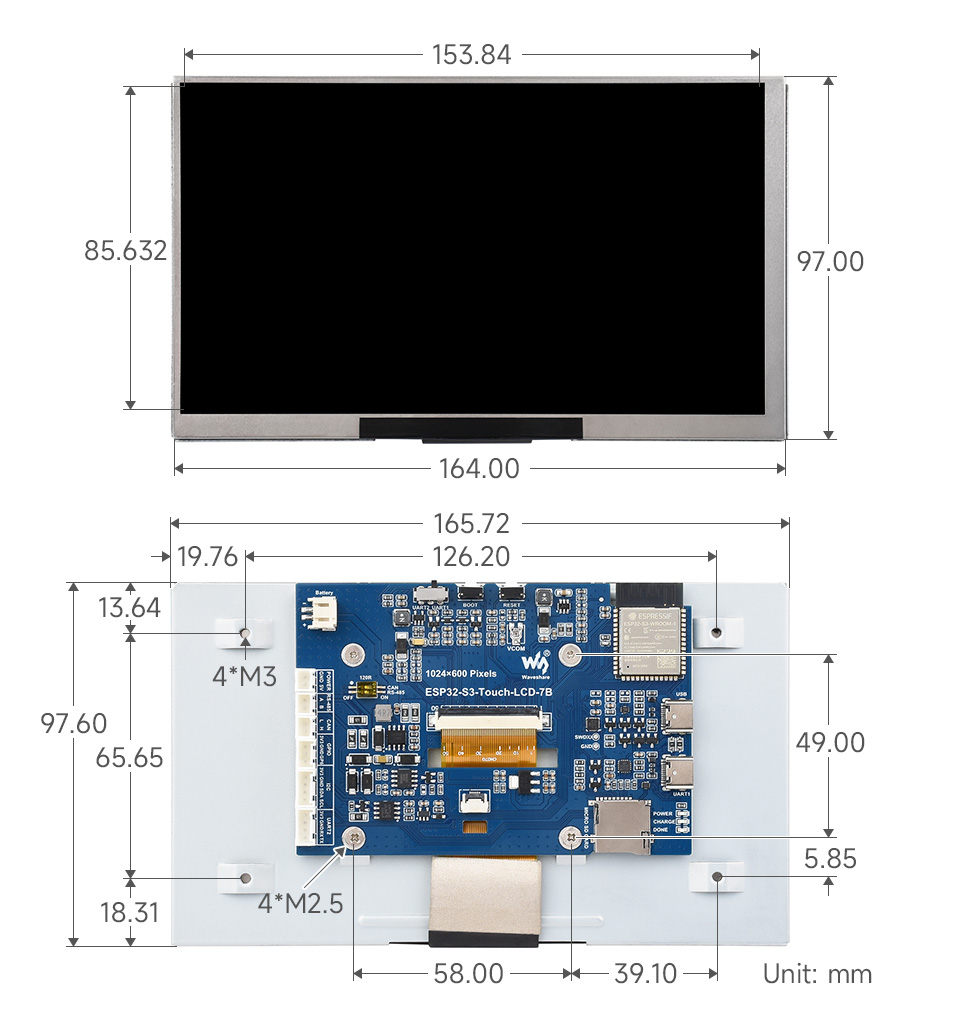

- Display: IPS 7 inch
- Resolution: 1024 x 600
- Colors: 65K
- Interfaces: CAN, RS485, I2C, UART
- Connectors: USB-C, TF, expansion headers
- Power supply: 5 V / 3.7 V (battery)
- Battery connector: PH2.0
- Backlight adjustment: yes
- Battery voltage monitoring: yes
- LED indicators: power, charging
- Dimensions: not specified
Kit includes
- Development board
- HY2.0 cables
- Mounting accessories
1203963
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
