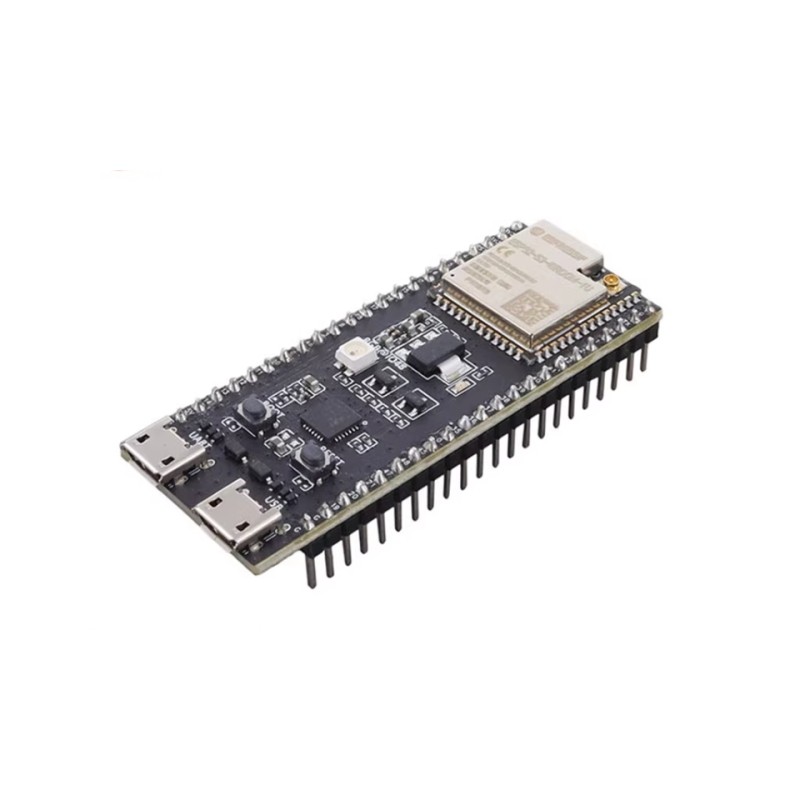

Development board with ESP32-S3-WROOM-1U module, featuring Wi-Fi 2.4 GHz, Bluetooth LE, 8 MB Flash, 8 MB PSRAM and an IPEX connector for an external antenna. Espressif ESP32-S3-DevKitC-1U-N8R8

24h
Available
Available quantity: 12

Description

The ESP32-S3-DevKitC-1U-N8R8 development board is based on the ESP32-S3-WROOM-1U module with the ESP32-S3 SoC, providing Wi-Fi 2.4 GHz and Bluetooth Low Energy connectivity. The design is intended for prototyping IoT applications, wireless systems, and projects involving data processing and machine learning.

The module GPIO pins are exposed on pin headers located on both sides of the board, allowing easy integration with external circuits and compatibility with breadboards. The IPEX antenna connector enables the use of an external antenna (antenna not included) and allows adjustment of RF performance to suit application requirements.

The board provides 8 MB Flash memory and 8 MB PSRAM, enabling more advanced applications such as data buffering and signal processing. Support for UART, SPI, I2C, I2S, PWM, and USB OTG interfaces ensures compatibility with a wide range of sensors and peripheral modules. Power supply and programming are handled via the USB Type-C connector, and the board supports ESP-IDF, Arduino, and MicroPython environments.

Features

  • Microcontroller: ESP32-S3 (ESP32-S3-WROOM-1U module, dual-core Tensilica LX7)
  • Flash memory: 8 MB
  • PSRAM: 8 MB
  • Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth Low Energy 5
  • Antenna: IPEX connector for external antenna (antenna not included)
  • GPIO: Module pins exposed on pin headers
  • Interfaces: UART, SPI, I2C, I2S, PWM, USB OTG
  • USB connector: USB Type-C
  • Supply voltage: 3.3 – 5 V
  • Compatibility: ESP-IDF, Arduino, MicroPython
  • Dimensions: 25.4 x 62.74 mm
