Industrial controller module with ESP32-S3, RS485 and CAN interfaces, WiFi and Bluetooth – Waveshare 32154
ID: 1201081
zł80.21
Tax included
zł65.21 tax excl.
Industrial controller with ESP32-S3, WiFi/Bluetooth communication and RS485 and CAN interfaces in a DIN-rail enclosure enables the creation of distributed automation and IoT systems. Thanks to numerous protections and Arduino support, it is used in monitoring, control and data acquisition systems in industrial environments.
Description
Industrial module based on the ESP32-S3 microcontroller with support for 2.4 GHz WiFi and Bluetooth 5 LE communication. Equipped with isolated RS485 and CAN interfaces, it enables integration with automation systems, industrial sensors and devices based on Modbus RTU and CAN buses. A wide supply voltage range from 7 to 36 V allows flexible use in industrial environments. Interference protection includes digital isolation, surge and ESD protection, as well as power isolation. The enclosure with DIN-rail mounting capability facilitates integration into control cabinets. The USB Type-C port enables power, programming and communication. The built-in RTC allows task scheduling. Arduino support and available SDK resources accelerate IoT application deployment.
Properties
- Microcontroller: ESP32-S3R8 (Xtensa LX7, 240 MHz, dual-core)
- Wireless communication: 2.4 GHz WiFi (802.11 b/g/n), Bluetooth 5 LE
- Communication interfaces: RS485 (isolated), CAN (isolated)
- Power supply: 7–36 V DC (screw terminal), USB Type-C
- Flash memory: 16 MB
- Real-time clock: PCF85063, SH1.0 battery connector
- LED indicators: power (PWR), RS485 TX/RX, CAN activity
- Protection: digital isolation, TVS, optoisolation, power isolation

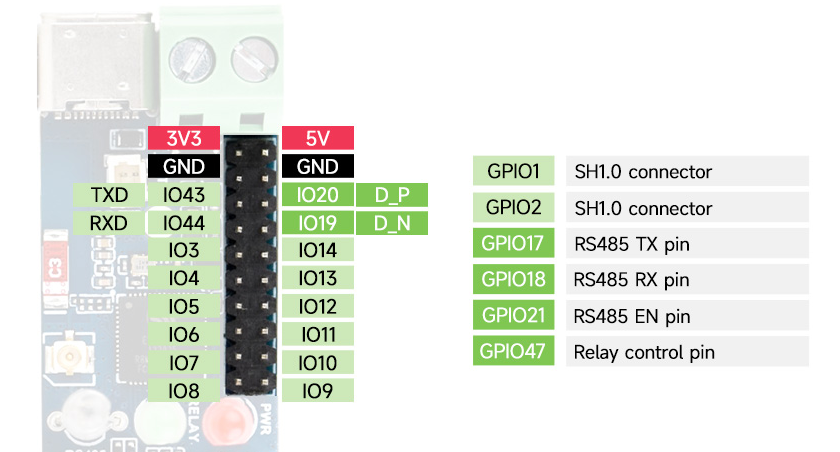

- Additional outputs: GPIO1, GPIO2, 3.3 V, GND (SH1.0 connector)
- External antenna connector: IPEX (switchable by resistor)
- Mounting: industrial DIN-rail enclosure
- Dimensions: 91.6 × 23.3 × 58.7 mm
Included
- ESP32-S3-RS485-CAN module x1
- SH1.0 4-pin cable ~150 mm x1
- Screwdriver x1
1201081
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
