- New

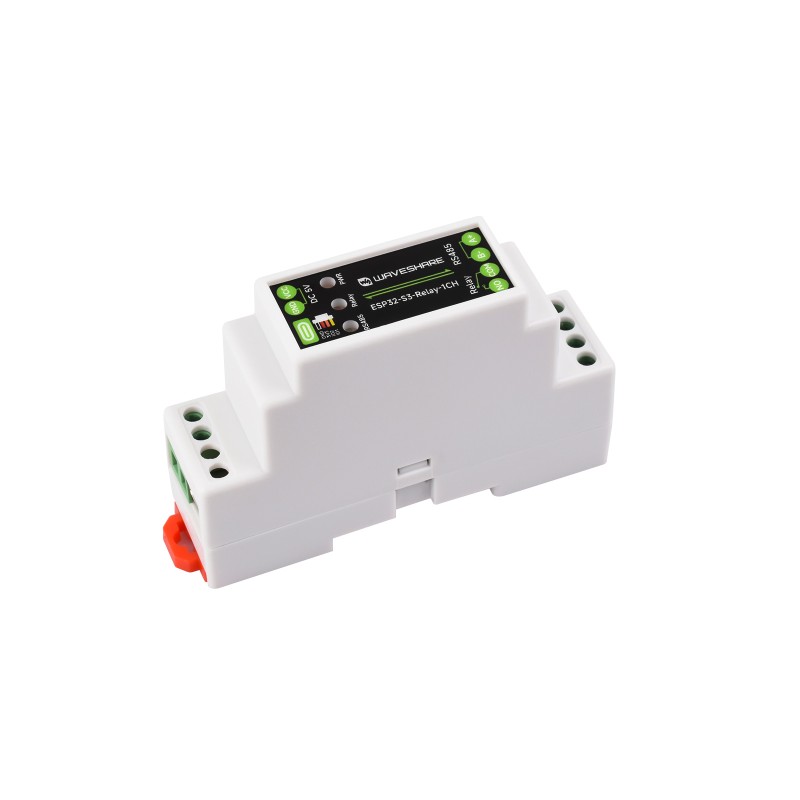

1-channel WiFi relay module with ESP32-S3 and RS485 interface in DIN-rail enclosure – Waveshare 32152
ID: 1201082
zł74.34
Tax included
zł60.44 tax excl.
WiFi relay module with ESP32-S3 and isolated RS485 interface in an industrial DIN-rail enclosure enables remote control of network and automation devices via WiFi, Bluetooth or Modbus RS485. Integrated protections and Arduino support make it suitable for IoT projects, local controllers and industrial applications.
Description
Relay module with ESP32-S3 microcontroller, intended for industrial and building automation applications, equipped with integrated WiFi and Bluetooth 5 LE communication and an isolated RS485 interface. The device features several protections: galvanic isolation, optoisolation, ESD and surge protection. The built-in relay with a load capacity of up to 10 A at 250 V AC or 30 V DC allows direct control of mains and low-voltage receivers. The enclosure is adapted for DIN-rail mounting, and the module is powered exclusively by 5 V via a screw terminal or USB Type-C port. The built-in RTC allows time-based tasks. Operation via RS485, WiFi, Bluetooth or GPIO. The module is supported by Arduino and cloud platforms based on MQTT.
Properties
- Microcontroller: ESP32-S3R8 (Xtensa LX7, 240 MHz, dual-core)
- Wireless connectivity: 2.4 GHz WiFi (802.11 b/g/n), Bluetooth 5 LE
- Power supply: 5 V DC (screw terminal or USB Type-C)
- Interfaces: RS485 (with digital and optical isolation), USB (power, communication, programming)
- Relay: 1 channel, NO, 10 A 250 V AC / 10 A 30 V DC
- Isolation: galvanic isolation, optoisolation, ESD and surge protection (TVS)
- Additional chips: RTC PCF85063, LDO regulator ME6217C33 (800 mA), 16 MB Flash memory
- Indicator LEDs: power (PWR), relay state (Relay), RS485 activity (TX/RX)
- Expansion options: Arduino support, MQTT, Waveshare.Cloud
- Enclosure: industrial, DIN-rail mount
- Dimensions: 91.6 × 23.3 × 58.7 mm
Included
- ESP32-S3-Relay-1CH module x1
- SH1.0 4-pin cable ~150 mm x1
- Screwdriver x1
1201082
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
