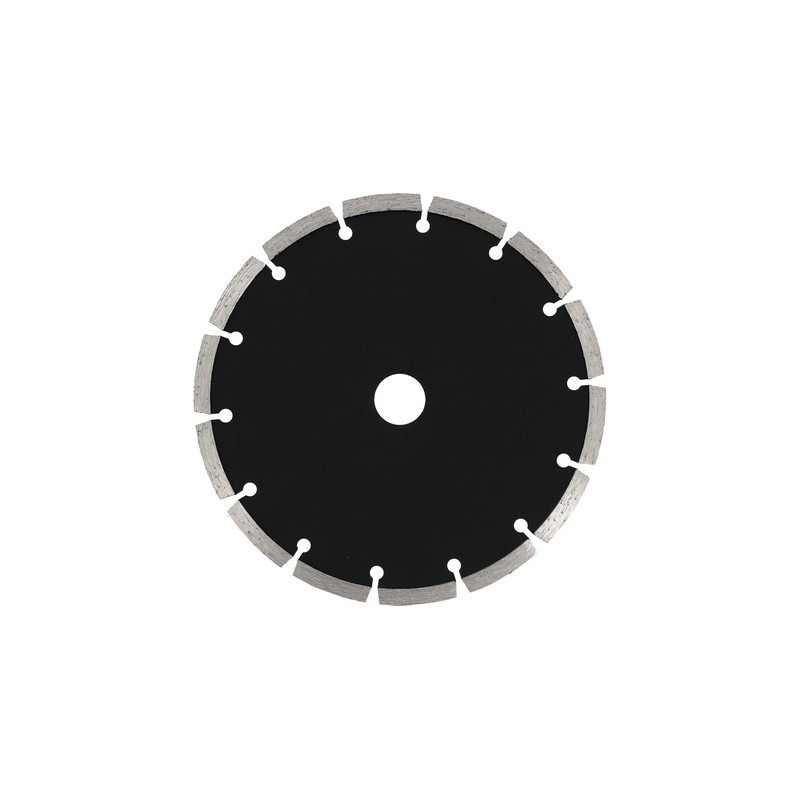

Sthor-08782 Diamond blade segment - HS 180mm
search
  • Sthor-08782 Diamond blade segment - HS 180mm
  • Sthor-08782 Diamond blade segment - HS 180mm
ID: 1190358
5906083087820
zł13.68
Tax included

zł11.12 tax excl.

Diamond disc for angle grinders, intended for dry operation, recommended for cutting ceramics, concrete, stone and brick, equipped with segments 7 mm high and 2.3 mm thick, with recommended revolutions of approximately 8400/min. Sthor-08782

24h
Available
Available quantity: 4

Description:

The Sthor segmented diamond blade, 180 mm in diameter, is designed for efficient dry cutting of hard construction materials. It features 7 mm high and 2.3 mm thick segments that deliver high cutting performance and extended tool life. Made from durable 65Mn steel with a diamond-coated segment, this blade is optimized for dry operation, eliminating the need for water cooling.

Recommended for cutting concrete, brick, natural stone, granite, and ceramic tiles. The chemical composition of the segment (Fe, Su, Sn, Ni, Co, diamond) ensures wear resistance and high cutting efficiency in demanding applications. Compatible with angle grinders featuring a 22.2 mm arbor and a maximum speed of 8400 RPM.

Features:

• Outer diameter: 180 mm
• Bore: 22.2 mm
• Blade thickness: 1.6 mm
• Segment height: 7 mm
• Segment thickness: 2.3 mm
• Material: 65Mn steel
• Segment composition: Fe 30%, Su 50%, Sn 10%, Ni 5%, Co 5%, diamond coating 12%
• Max speed: 8400 RPM
• Max linear speed: 80 m/s
• Application: dry cut
• Recommended for: concrete, brick, stone, granite, ceramic tiles

1190358

Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl

Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
