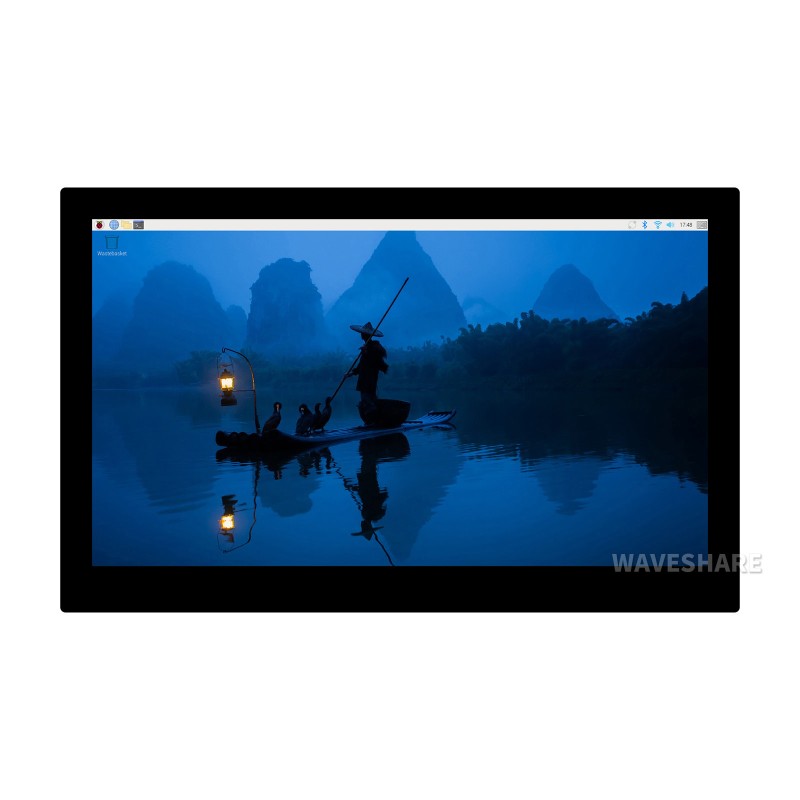

13.3″ high-resolution DSI capacitive touch display 1920×1080 for Raspberry Pi - Waveshare 29369
ID: 1197493
zł612.32
Tax included
zł497.82 tax excl.
Waveshare 29369 is a 13.3-inch DSI display with Full HD resolution and a capacitive touch panel supporting 10 touch points, designed for advanced user interfaces in Raspberry Pi-based systems. Its sturdy construction, high resolution, and wide compatibility make it a suitable choice for multimedia, industrial, and educational applications.
Description
13.3-inch DSI high-resolution display with 1920×1080 pixel resolution, featuring an IPS panel and a 10-point capacitive touch screen, provides excellent image quality and intuitive user interaction. The tempered glass with up to 6H hardness protects the screen from mechanical damage, while the full metal rear housing enhances durability.
By default, it supports Raspberry Pi OS (Bookworm) and is compatible with devices such as Raspberry Pi 4B, Raspberry Pi 5, and the Compute Module 4 IO Board. With a DSI interface for display and I2C for touch communication, it ensures fast data transmission and responsive touch control. Screen brightness can be adjusted via software.
Features
- Size: 13.3 inches
- Resolution: 1920×1080 pixels
- Display interface: DSI
- Panel: IPS
- Viewing angle: 178°
- Touch type: capacitive
- Touch points: 10
- Touch interface: I2C
- Touch glass: tempered, hardness up to 6H
- Enclosure: full metal back panel
- Backlight adjustment: via software
- Compatibility: Raspberry Pi 4B, 5, CM4
Included
- 13.3inch DSI LCD x1
- 22P-Cable-100mm x1
- 3PIN cable ~70mm x1
- MIPI-DSI cable 12 cm x1
- Screw set x1
1197493
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 13,3
- Resolution
- 1920 x 1080 px
- Interface
- DSI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
