6.25″ DSI capacitive touch display 720×1560 for Raspberry Pi - Waveshare 28918
ID: 1197458
5902186304864
zł268.47
Tax included
zł218.27 tax excl.

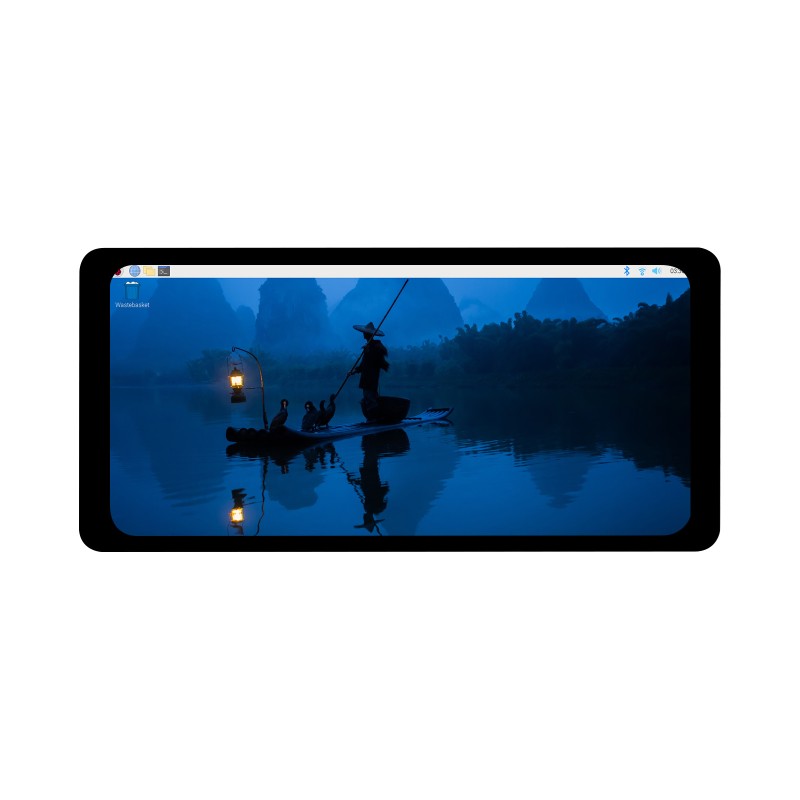

6.25" DSI capacitive display Waveshare 28918 with an IPS matrix and a touch panel using optical bonding technology offers a high resolution of 720×1560 pixels and wide viewing angles. Designed to work with Raspberry Pi, it enables multi-touch support and brightness adjustment via software. The reinforced surface made of tempered glass provides resistance to mechanical damage. It is suitable for user interface projects, control panels, and portable embedded devices.
Description
6.25" LCD display with DSI interface, equipped with an IPS panel with a resolution of 720×1560 pixels and a capacitive touch panel supporting up to 5 touch points. The default display orientation is vertical (portrait), with the option to change the orientation in the software configuration. The touch panel is made using optical bonding technology, with a tempered glass surface with a hardness of up to 6H.
Compatible with Raspberry Pi 4B, 5, and Compute Module 4, it works with Raspberry Pi OS without the need to install additional drivers in newer versions of the system. The display is powered via the 5V pin from the GPIO or pogo pin, depending on the platform used. The screen offers wide viewing angles (178°) and brightness adjustment via software.
Properties
- Screen diagonal: 6.25"
- Resolution: 720×1560 pixels
- Panel type: IPS
- Display interface: DSI
- Touch type: capacitive
- Number of touch points: 5
- Touch interface: I2C
- Touch panel technology: optical bonding
- Touch surface: tempered glass
- Brightness adjustment via software
- Viewing angles: 178°
Included
- 6.25" DSI LCD display x1
- FPC ribbon 15PIN 1.0 mm, 50 mm (contacts on opposite sides) x1
- DSI ribbon cable 12 cm x1
- FPC ribbon 15PIN 1.0 mm, 160 mm (contacts on opposite sides) x1
- PH2.0 4PIN cable ~200 mm x1
- Screw set x1
1197458
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 6,25
- Resolution
- 720 x 1560 px
- Interface
- DSI
- Touch
- Yes
