zł158.61 tax excl.

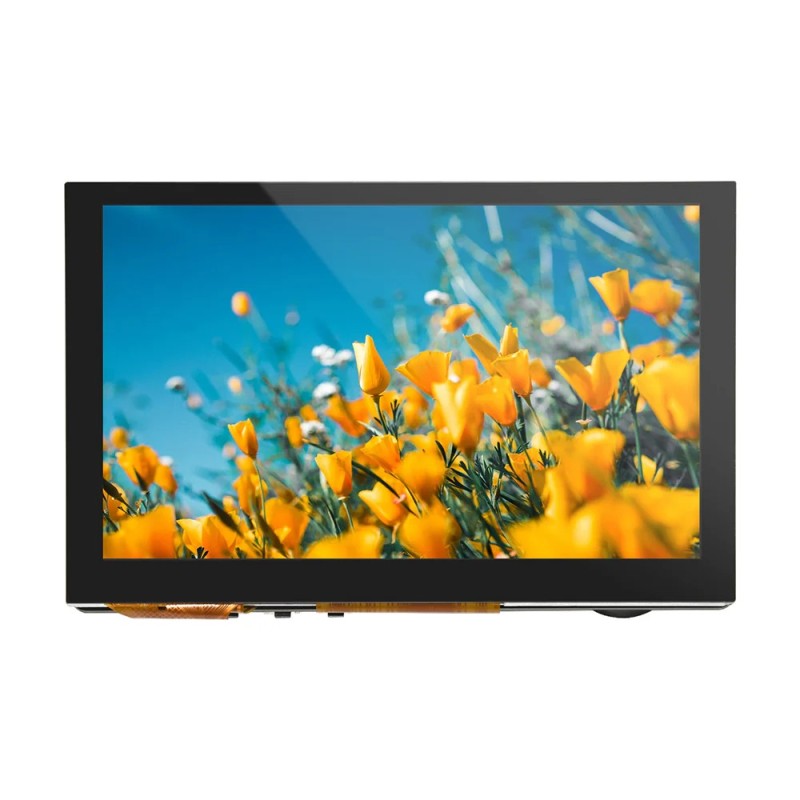

BIGTREETECH HDMI5 V1.2 touch display with a 5-inch IPS panel, 800 × 480px resolution and 5-point capacitive touch. Features HDMI interface, brightness and display orientation adjustment, 3.5mm audio output and an XH2.54 port. Designed for use with Klipper systems, Raspberry Pi and BIGTREETECH platforms. BIGTREETECH HDMI5 V1.2
The device BIGTREETECH HDMI5 V1.2 features a 5-inch capacitive IPS touch panel with a resolution of 800 × 480px and support for 5-point touch. The HDMI interface provides video transmission, while the USB connection enables touch functionality. The display can operate with single-board computers and controllers used in 3D printers running systems such as Klipper.
HDMI5 V1.2 is compatible with Raspberry Pi 4, PI4B+CB1, BTT PI and configurations including Manta M8P+CB1, Manta M4P+CB1 and Manta E3EZ+CB1. Connecting the display via HDMI and supplying power through USB Type-C allows operation without installing additional drivers. On-board buttons provide brightness adjustment and allow the displayed image to be rotated by 180°.
An integrated audio decoding circuit provides audio transmitted through HDMI via a 3.5mm Jack output. An additional 4-pin XH2.54 port supports a custom USB connection and independent 5V power input. The module measures 121 × 76mm, requires a 5V DC power supply and operates with a 3.3V logic voltage.
