KAmod USB Micro Adapter – Adapter with USB-Micro Connector
ID: 1195429
5906623496693
zł6.90
Tax included
zł5.61 tax excl.
The KAmod USB-Micro Adapter Module allows for the connection of a Micro-USB port to almost any electronic system. All necessary signals are available on the pin header, including 5V power, D+ and D- data lines, and an additional ID signal.
Description

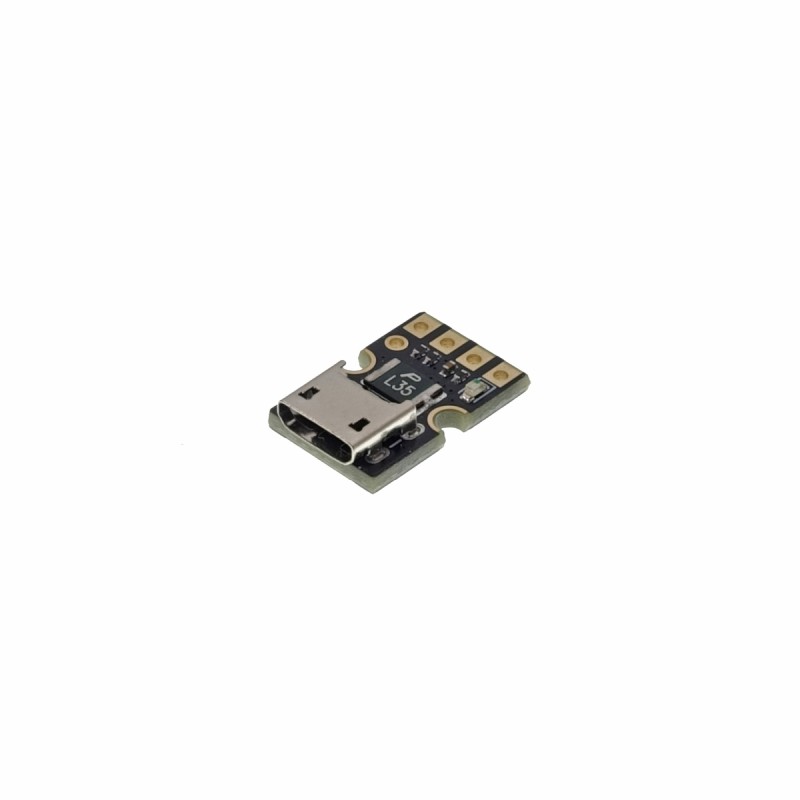

The KAmod USB-Micro Adapter Module is a compact solution that allows for the connection of a Micro-USB port to almost any electronic system. It outputs all key signals (5V power, D+ and D- data lines, and ID signal) to a standard pin header, making integration with projects easier.
Features
- Micro-USB connector mounted on a small PCB
- All essential signals (5V power, D+ and D- data lines, and ID signal) available on a standard pin header
- Overload protection for USB power line with a polymer fuse
- Compact size: 16 × 10.5 mm
Included in the kit:
- Pre-assembled and tested KAmod USB-Micro Adapter Module
- 1 × straight 4-pin goldpin header (2.54 mm pitch)
- 1 × angled 4-pin goldpin header (2.54 mm pitch)
1195429
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
