- New

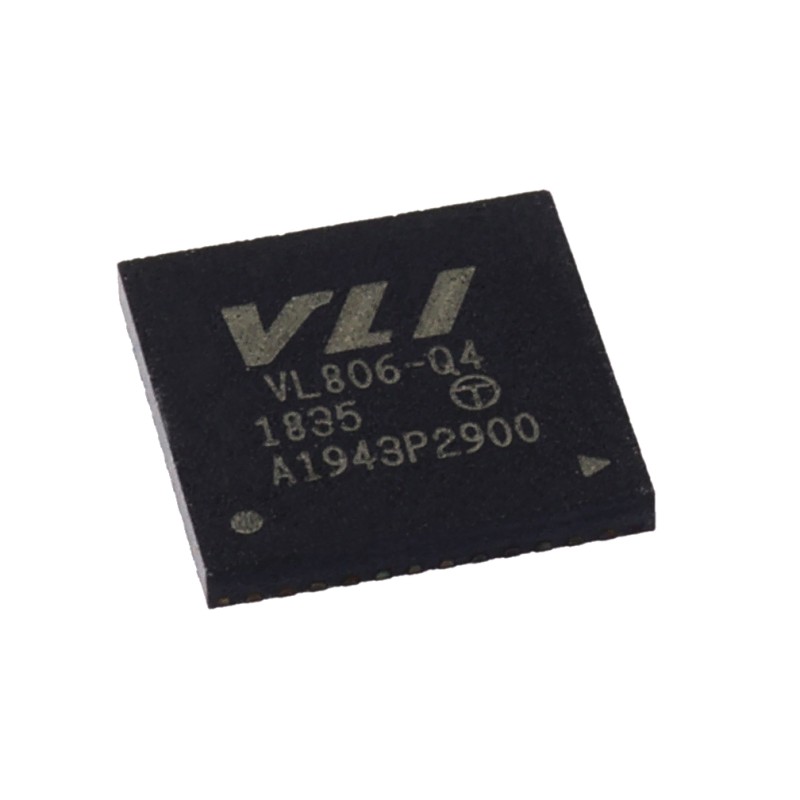

VL806 SuperSpeed USB 3.0 Host Controller – 2-port PCIe USB 3.0 controller
ID: 583859
5902186329669
zł19.68
Tax included
zł16.00 tax excl.
VL806 is a compact USB 3.0 controller for integration into systems with a PCIe interface, providing fast data transfer, high device compatibility, and low power consumption. It is suitable for desktop computers, embedded systems, and expansion cards requiring stable and efficient communication with USB devices.
Description
The VL806 controller from VIA Labs is a high-performance USB 3.0 host that adds two SuperSpeed (5 Gb/s) ports to platforms equipped with a PCI Express interface. It supports all USB operation modes – SuperSpeed (5 Gb/s), High-Speed (480 Mb/s), Full-Speed (12 Mb/s), and Low-Speed (1.5 Mb/s). With compliance to the USB 3.0 specification and the xHCI interface, the controller ensures seamless compatibility with both modern and legacy USB 2.0 and 1.1 devices.
The VL806 uses a PCIe 2.0 x1 interface, fully backward compatible with PCIe 1.0, making it suitable for both PCs and expansion cards. The integrated USB PHY technology based on a CMOS process minimizes power consumption, while UASP support enables faster and more efficient data transfers when using storage devices.
Properties
- 2 USB 3.0 SuperSpeed ports (5 Gb/s)
- USB mode support: High-Speed (480 Mb/s), Full-Speed (12 Mb/s), Low-Speed (1.5 Mb/s)
- PCI Express 2.0 x1 interface, backward compatible with PCIe 1.0
- Compliant with xHCI and fully compatible with Windows and Linux systems
- Legacy USB support
- USB Attached SCSI Protocol (UASP) support
- Device charging support according to Battery Charging Specification
- Firmware upgradeable via BIOS
- Power-efficient CMOS architecture
583859
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
