0–100V Voltmeter Module with LED Display – Green
search
  • 0–100V Voltmeter Module with LED Display – Green
ID: 1196588
5902186300927
zł4.90
Tax included

zł3.98 tax excl.

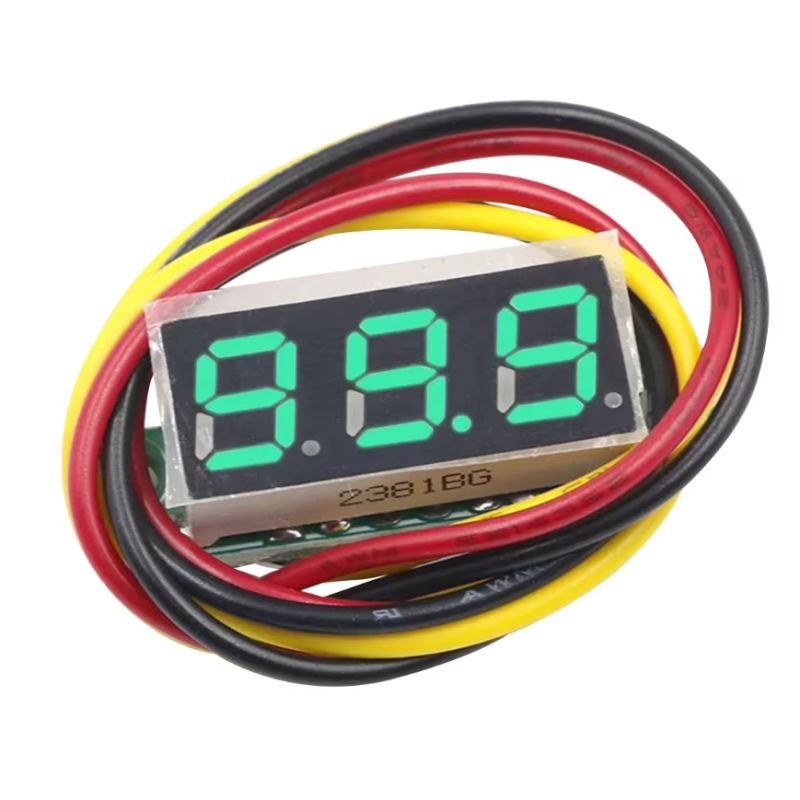

LED Voltmeter Module 0–100 V is a compact tool for monitoring voltage in electronic systems, lithium-ion batteries, electric vehicles, and power supply circuits. With built-in reverse polarity protection, automatic decimal point adjustment, and high measurement accuracy, it provides a reliable and easy-to-install measurement solution for both professional and hobbyist electronic projects.

4 weeks
Awaiting delivery

Description

The digital LED voltmeter module enables precise voltage measurement in the range of 0 to 100 V DC. Its compact design (30 × 12 × 9 mm) and 0.28-inch green LED display facilitate integration with various electronic circuits and vehicle systems. The three-wire power connection system with built-in reverse polarity protection ensures safe and reliable operation. The voltmeter automatically adjusts the decimal point position depending on the measured voltage level, offering higher precision when reading lower values, which is especially useful for measuring battery voltage.

Specifications

  • Measurement range: 0–100 V DC
  • Supply voltage range: 2.4–40 V DC
  • Connection system: 3-wire
  • Display: 0.28-inch LED, green
  • Automatic decimal point adjustment:
  • below 10 V – two decimal places
  • above 10 V – one decimal place
  • Measurement accuracy: ±3%
  • Measurement frequency: ≥200 ms
  • Operating current: <30 mA
  • Reverse polarity protection: yes
  • Operating voltage: up to 100 V
  • Temperature range: -10 °C to +65 °C
  • Humidity: 10–80% RH (non-condensing)
  • Dimensions: 30 × 12 × 9 mm
1196588

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
