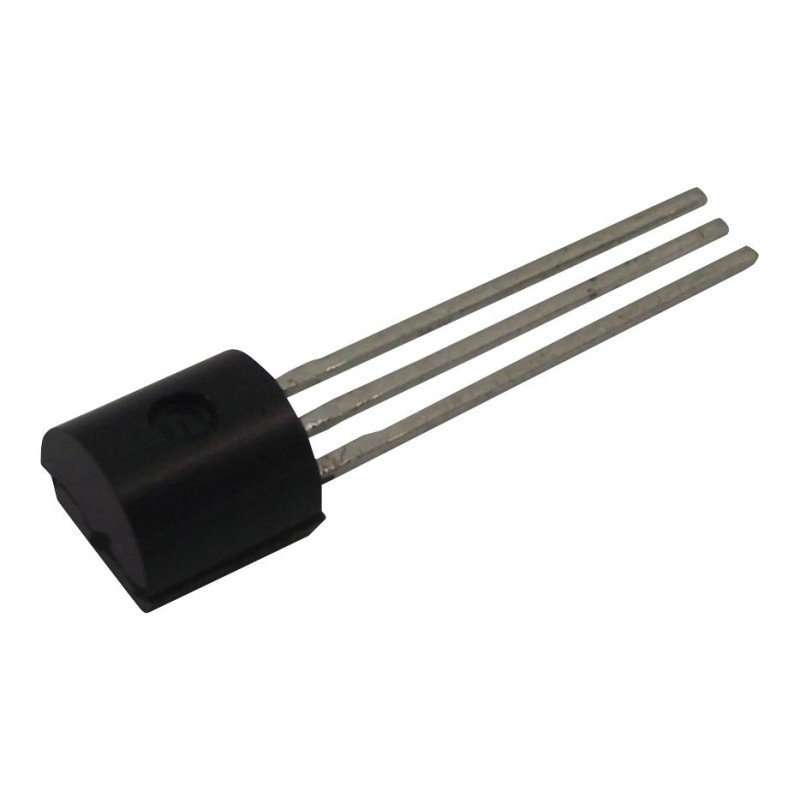

Adjustable voltage regulator TL431AILP

Description

Three-terminal adjustable shunt voltage reference regulator, designed for precise voltage regulation in the range of 2.495 V to 36 V. Thanks to its high temperature stability and low dynamic impedance, the component is used in switching power supplies, voltage regulation circuits, DC/DC converters, and as a replacement for Zener diodes in applications requiring precise reference voltage. The “A” version features a reference voltage tolerance of ±1% at 25°C, ensuring high accuracy in industrial applications.

Specifications

• Regulator type: shunt (parallel stabilizer)
• Reference voltage: 2.495 V (typical)
• Output voltage range: 2.495 V – 36 V (adjustable via external resistor divider)
• Reference voltage tolerance: ±1% at 25°C
• Cathode current range: 1 mA – 100 mA
• Typical dynamic impedance: 0.22 Ω
• REF input current: typically 2 µA
• Operating temperature: –40°C to +85°C
• Package: TO-92 (through-hole)
