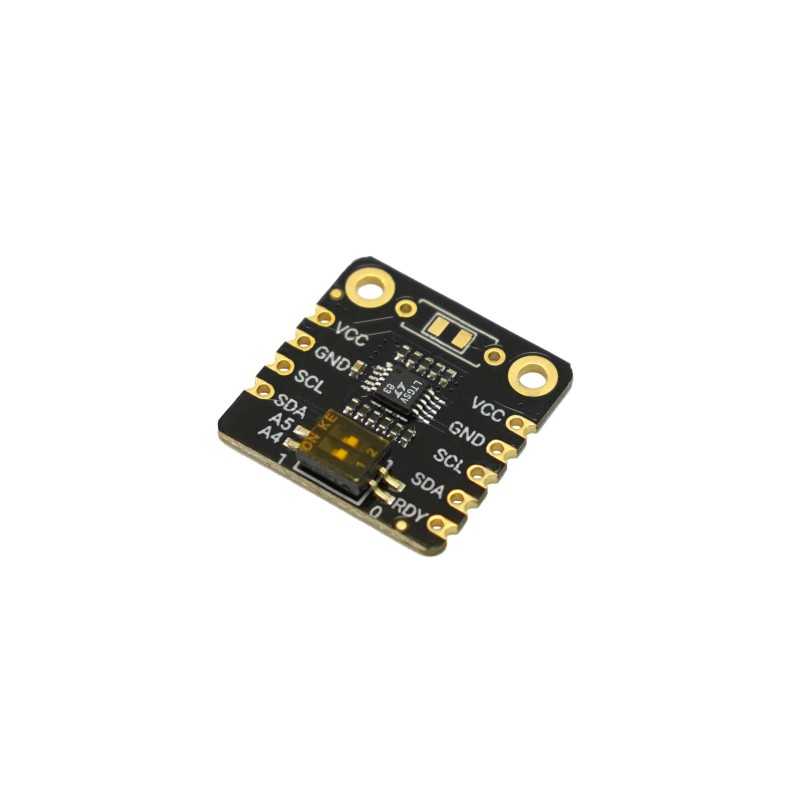

Fermion: I2C Address Shifter Module - I2C address converter module
ID: 1196982
5906623498031
zł32.55
Tax included
zł26.46 tax excl.
Compact module that allows easy changing of I2C sensor addresses, allowing coexistence of multiple devices with the same address on one bus. With DIP switches and optional soldering resistors, users can easily configure sensor addresses without having to modify the code or use external components. DFRobot DFR1185
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
I2C Address Shifter is a compact module designed to simplify the process of changing I2C sensor addresses in a development system. With this module, developers can easily modify sensor addresses without needing complex software interventions or code modifications. By placing the module between the development board and the I2C sensor, the sensor's address can be changed via the module, allowing multiple devices with the same address to coexist on a single I2C bus. This solution ensures easy integration and avoids synchronization issues that may arise with traditional I2C multiplexers. The module operates within a voltage range of 2.25 V to 5.5 V and consumes a minimal current of only 2 mA at 3.3 V, making it suitable for systems with different voltage requirements.
The converter supports address configuration using DIP switches and optional soldering of resistors. Users can easily select one of the four available new addresses, and after additional soldering, extend the address pool by at least 20 more addresses. The module is very easy to integrate, just connect it to the I2C system without needing to make changes in the software or use external components like multiplexers.
Features
- Power supply voltage: 2.25 to 5.5 V DC
- Current consumption: 2mA at 3.3V
- Operating temperature range: 0 to 70℃
- Dimensions: 19 x 19 mm
Kit contains
- Fermion module: I2C Address Shifter
- XH2.54-10pin connector
