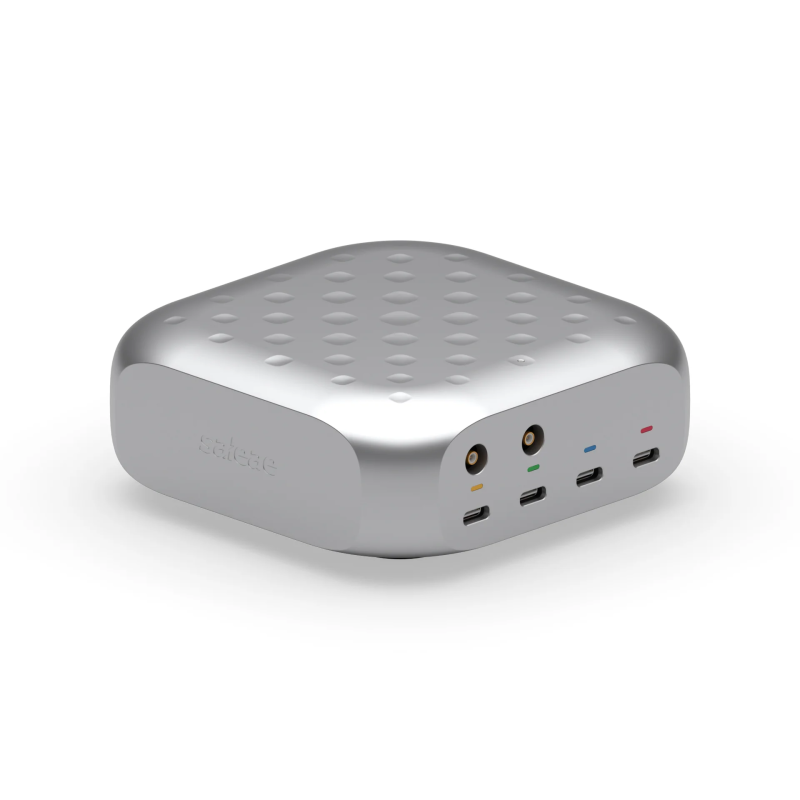

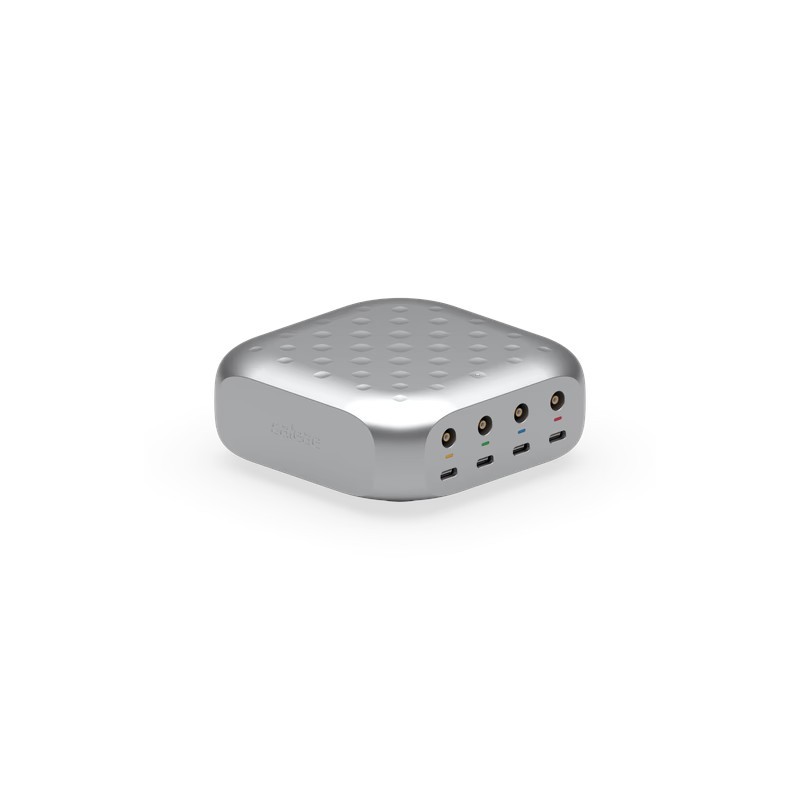

Saleae Logic MSO 4Ch 200MHz - 4-channel 200MHz oscilloscope with logic analyzer

Description

Logic MSO is an advanced oscilloscope with a built-in logic analyzer, specifically designed for embedded system programmers and electronics engineers. The device combines a 4-channel analog oscilloscope with a multi-channel digital analyzer, offering exceptionally deep signal capture and continuous protocol decoding. With a bandwidth of 200 MHz and analog sampling up to 1.6 GS/s, Logic MSO can capture even very fast events. A key advantage is the ability to record every waveform, allowing users to review previous events and accurately analyze hard-to-reproduce issues. The device supports 25 communication protocols out of the box, with additional decoders available from community resources. Logic MSO can record billions of digital transitions and search through millions of decoded messages. Unlike traditional oscilloscopes, it eliminates manual screenshots and tedious measurements. The environment supports Python scripting, enabling automation of measurements and tests. Logic MSO is ideal for bus debugging, timing analysis, and prototype testing, making it a modern tool that significantly accelerates electronic project development.

Features

• Oscilloscope channels: 4
• Oscilloscope bandwidth: 200 MHz
• Analog sampling rate: 1.6 GS/s
• Oscilloscope resolution: 9 bit
• Analog memory depth: 100M samples
• Digital channels: 8 (expandable to 20)
• Digital sampling rate: 1.2 GS/s
• Digital memory depth: 100M samples
• Maximum digital transition rate: 300M transitions/s
• Input impedance: 1 MΩ || 16 pF (nominal)
• Input voltage range: 10 mVpp – 60 Vpp
• DC gain accuracy: ±2% of full scale
• DC offset accuracy: ±1% of full scale ±2 mV
• DC accuracy: DC gain accuracy ± DC offset accuracy
• Gain settings: 0 dB – 38 dB (2 dB steps)
• DC offset range: ±2.0 V (75 µV steps)
• Attenuation: 1x (0 dB), 10x (10 dB), 100x (20 dB)
• Input coupling: AC / DC (switchable)
• AC cutoff frequency: 7 Hz (nominal)
• Bandwidth limit: 20 MHz (switchable)
• Channel-to-channel isolation: ≥ 50 dB
• Maximum input voltage: ±30 V (20 dB/decade derating above 20 MHz)
• Timebase range: 60 ns – 200 s
• Timebase increments: continuous
• Calculated rise time: ≤ 1.75 ns
• Time resolution: 0.63 ns
• Timebase accuracy: ±25 ppm
• Timebase aging: ±5 ppm at 25°C
• Analog channel-to-channel skew: ≤ 1 ns
• Analog-to-digital skew: ≤ 0.83 ns ± 1 sample
• Digital channel-to-channel skew: ≤ 0.83 ns (1 sample)
• Power supply: USB-C PD 20V / 1.5A (30W)
• Dimensions: 114 × 114 × 46 mm
• Weight: 1.36 kg

Kit contains

• 4 x analog probes (fixed 10:1) with accessories:
  • 2 x hook tips
  • 2 x crocodile grounding wires
  • 2 x spring grounding wires
  • 2 x ground sockets
  • 2 x test clips
• Probe compensation tools:
  • 1 x pulse generator
  • 1 x ceramic screwdriver
• 4 x BNC to SMB adapters
• 2 x digital probes with accessories:
  • 2 x 5-wire bundles
  • 10 x test clips
  • 10 x pin-to-pin adapters
  • 4 x pin-to-probe adapters
• USB-A to USB-C cable 1.8 m, USB-A to USB-C adapter
• USB-C to USB-C cable 3.0 m, USB-C 30 W power supply
• Carrying case
