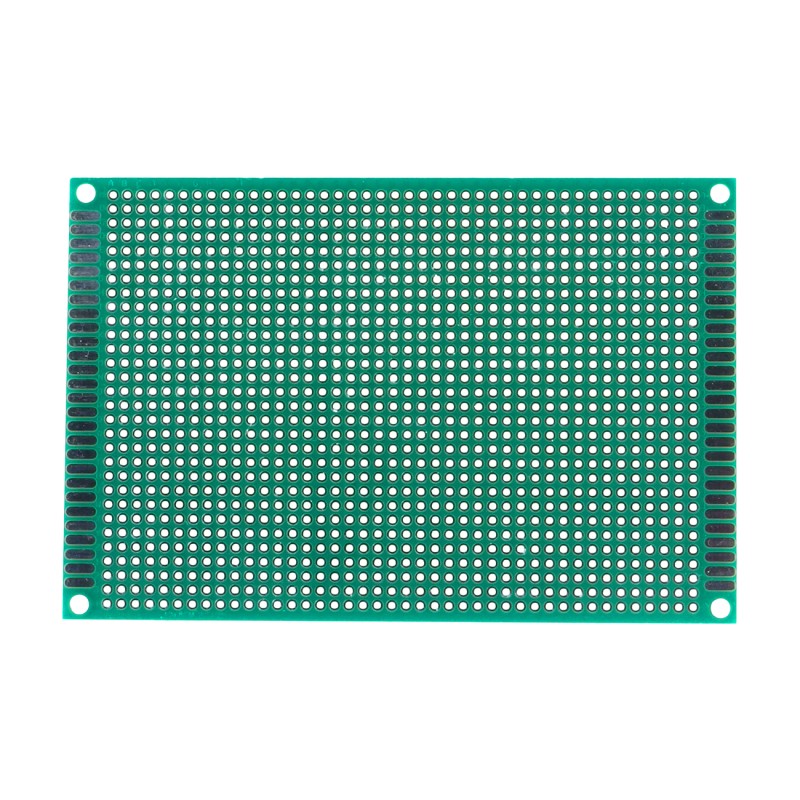

Universal double-sided prototyping PCB 80×120mm, 1260 holes
ID: 1200576
5902186331631
zł4.90
Tax included
zł3.98 tax excl.
ProtoPCB1260 is a universal double-sided PCB with dimensions of 80 × 120 mm and 1260 tinned holes. It facilitates quick creation and testing of electronic circuits with through-hole components, making it ideal for prototyping and educational use.
Description
The double-sided protoPCB1260 prototyping board is designed for building and testing electronic circuits. Made of laminate with a standard 2.54 mm pitch and dimensions of 80 × 120 mm, it contains 1260 tinned mounting holes, allowing easy soldering of through-hole components and making connections. Thanks to double-sided copper coverage, tracks and jumpers can be routed on both sides of the PCB. The board is suitable for educational, prototyping, and hobby projects.
Properties
- Type: universal prototyping PCB
- Dimensions: 80 × 120 mm
- Number of holes: 1260
- Hole pitch: 2.54 mm
- Layers: double-sided (copper on both sides)
- Hole surface: tinned
- Mounting type: THT (through-hole components)
1200576
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
