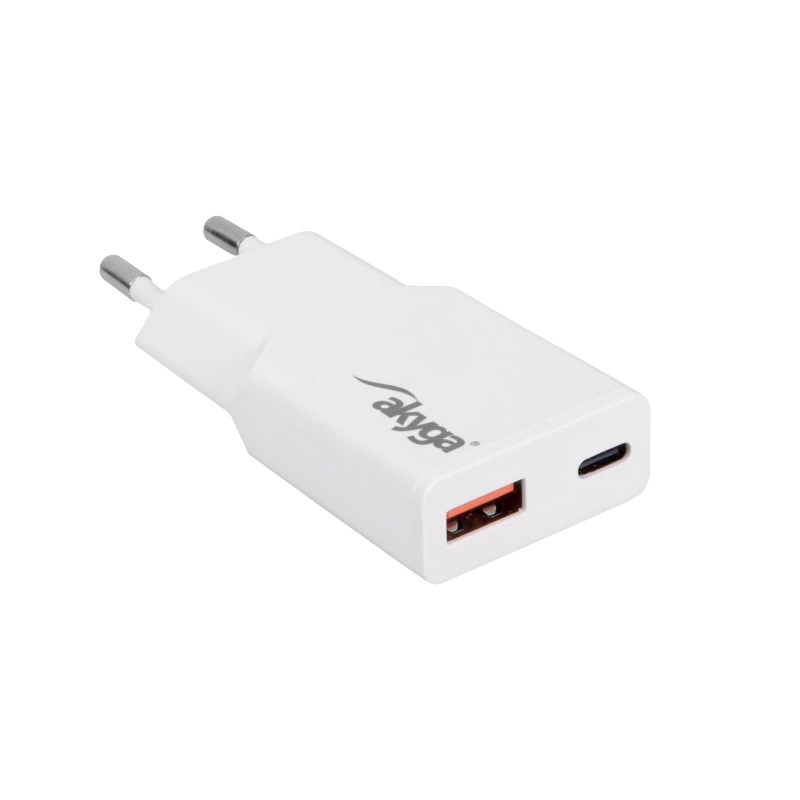

AK-CH-27 – overview
search
  • AK-CH-27 – overview
  • AK-CH-27 – connector close-up
  • AK-CH-27 – top view
  • AK-CH-27 – angled view
  • AK-CH-27 – side view
  • Connector close-up (reversed)
ID: 1202781
5906708750634
zł25.08
Tax included

zł20.39 tax excl.

AC charger with output power up to 30W, equipped with USB Type C and USB Type A ports, supporting Power Delivery and Quick Charge 3.0, output voltage range 5–20 V and current range 1.5–3 A. Akyga AK-CH-27

24h
Available
Available quantity: 2

Description

Akyga AK-CH-27 is an AC charger with two USB outputs: Type C and Type A, designed for powering and charging devices that support USB Power Delivery and Quick Charge standards. The device operates with an input voltage of 100–240 V / 50/60 Hz and enables automatic selection of output parameters according to the requirements of the connected device, including voltage profiles of 5 V, 9 V, 12 V, 15 V, and 20 V, with an output current range from 1.5 A to 3 A.

The charger provides a maximum output power of 30 W when a single device is powered via the USB-C port, while simultaneous use of both ports results in power sharing between USB-A and USB-C. GaN technology is used in the power conversion circuit, and protection mechanisms such as OVP, OCP, OTP, and SCP reduce the risk of damage during operation. The AK-CH-27 model is used for charging smartphones, tablets, power banks, and other USB-powered devices.

Features

  • Device type: AC charger
  • Number of ports: 2
  • Port types: USB Type C, USB Type A
  • Charging standards: Power Delivery, Quick Charge 3.0, Samsung AFC, Huawei FCP, DCP, Apple 2.4A
  • Maximum power: 30 W
  • Output current range: 1.5–3 A
  • USB-C output parameters: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 15 V / 2 A, 20 V / 1.5 A
  • USB-A output parameters: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A
  • Input voltage: 100–240 V / 50/60 Hz
  • Input current: <0.5 A
  • Power plug type: CEE 7/16 (Europlug)
  • Protections: OVP, OCP, OTP, SCP
  • Grounding: none (Class II protection)
  • Housing material: ABS
  • Color: white
  • Operating temperature: 5–50°C
  • MTBF: 100000 h
  • Dimensions: 86 x 58 x 46 mm
  • Net weight: 90 g
  • Manufacturer: Akyga
  • Manufacturer code: AK-CH-27
1202781

Data sheet

Cable length (m)
No cable
Supply connector
Złącze USB
Output voltage
5 - 20 V
Supply type
network
Output current
1,5 A - 3 A

Manufacturer

  • AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Wrocławska 1C
  • 52-200 Suchy Dwór
  • Poland
  • [email protected]

Responsible person

  • AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Wrocławska 1C
  • 52-200 Suchy Dwór
  • Poland
  • [email protected]
